This study examines how voice, respiration and brain regulation are connected.  It observes how the anatomical mechanisms of respiration are connected to the  physiological mechanisms. In this study, a British Library London search was made. For  the latest 5 years 32 references were found, but no articles were found that covered  the subject. Further research, restricted to respiration, was made through the database  PubMed. Few relevant articles were found. This search shows that the area has not  been a major subject and further research is necessary.
Especially the pre-Bötzinger complex’s influence on the rhythmogenesis of  respiration is of interest. The pre-Bötzinger complex is situated in the brain stem, where  the whole respiratory center is located. Respiration and voicing is connected to each  other, as breathing control is very important to carry out precise control of vocal fold  movement. Furthermore, certain parts of the brain show functional connections both  when carrying out controlled breathing and pronouncing syllables. The aspects thereof   are discussed, related also to voice therapy

• Voice

• Respiration

• Breathing

• Voice Therapy

Pedersen M, Mahmood S, Akram BH (2017) Voice, Respiration and Brain Regulation, A Review. Ann Otolaryngol Rhinol 4(1): 1160.

Breathing is a continuous and indeed a fundamental physiological process in life. The respiratory movements in breathing occur as an automatic mechanism responsible for vital behaviors such as gas exchange in the lungs and pH regulation.

A search at British Library London was made and found 32 references with the search words: Voice and Respiration and Brain Regulation– for the latest 5 years. Upon reading the abstracts none relevant articles covered all the parameters. Further research was made through the database PubMed where the search was specified to respiration without time limit. Here we found few relevant articles. This shows that the area has not been a major subject. Further research is necessary now since much voice therapy and voice connection is based on respiration connection. Furthermore, a position paper on Voice, Speech and Language therapy in Adult Respiratory Care from 2015, also showed that no articles covered the subject about voice, respiration and brain regulation (Royal College of Speech and Language Therapists 2015).

We consider the problem of respiration function related to brain regulation and voice to be extremely important. Some studies illustrate the development of the topic focusing on the periaqueductal gray matter (PAG) [1], and the voice-related cortical potential [2].

Training of voices and especially voice treatment in pathology has to be related to new knowledge of brain regulation of respiration from the Pre-Bötzinger complex. Treatment should focus much more on brain coordination than on respiration where no evidence was found.

Anatomical mechanism of the respiratory system

Breathing consists of two phases: Inspiration and expiration. The inspiration is always active while the expiration in rest is passive. The inspiration is caused by a process of active movements especially the diaphragm, which is responsible for most of the inspiration in rest. Other muscle groups are used for deeper breathing such as external intercostal muscles, scalene muscles and sternocleidomastoids. Expiration is caused by relaxation of the diaphragm and is therefore passive in rest. The active expiration, including voicing uses the internal intercostal muscles and the abdominal muscles.

Physiological mechanism of the respiratory system

Rhythmic neural activity is generated and organized as neural circuits in the brainstem driving the continuous respiratory breathing movements in mammals during normal breathing [3]. This neuronal activity produces a respiratory rhythm which pulsates the breathing mechanism.

This neural circuit in the brainstem is referred to as the respiratory central pattern generator (CPG) responsible of generating rhythmic breathing patterns [3]. CPGs consists of interconnected neurons organized in a network controlling the output of motor neurons [4,5]. These pattern generators can be divided into constitutive pattern generators and conditional pattern generators. A constitutive pattern generator generates persisting patterns of activity throughout a lifetime of an organism. The respiratory CPG is a constitutive active pattern generator producing automatic movements throughout life. However, the conditional pattern generators generate patterns of activity which are not occurring persistently throughout life, but time limiting movements e.g. locomotion (the act of power of moving from place to place), swallowing and chewing [5] (Figure 1).

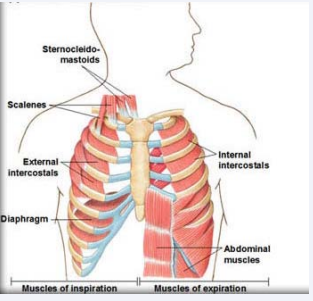

Figure 1: Illustration of breathing muscles.

Arrangement of the respiratory network within the brainstem and respiration rhythmogenesis

Neural circuits in the brainstem have shown to generate the respiratory motor output leading to normal breathing. It is hypothesized that intrinsic rhythmically pacemaker neurons are driving the respiratory rhythm generation (rhythmogenesis) [7-9] (Figure 2).

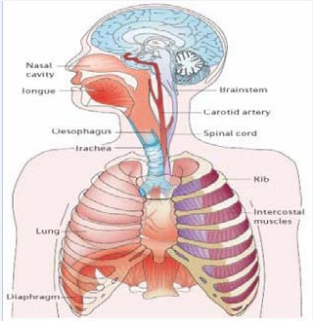

Figure 2: Rhythmic neural activity is generated and organized as neural circuits in the brainstem driving the continuous respiratory breathing movements in mammals during normal breathing [7].

A group of neurons located rostral in the ventrolateral medulla oblongata, the pre-Bötzinger Complex, is hypothesized to be essential for the rhythmogenesis [6-11]. These neurons with respiratory activity in the ventrolateral medulla oblongata are as a collective group called the ventral respiratory group (VRG) [10]. The VRG contains different subpopulations of interacting excitatory and inhibitory interneurons which represents the respiratory Central Pattern Generator (CPG) [3].

The pre-Bötzinger Complex consists of a group of neurons that might generate respiratory-related outputs [12]. The preBötzinger Complex has been proposed to be responsible for generating the inspiratory rhythm while other regions of the VRG, such as the Bötzinger complex and the retro trapezoid nucleus/ parafacial respiratory group, is thought to be responsible for the expiratory activity [7]. Perturbations and ablations of neurons in the pre-Bötzinger Complex have shown to alter and eliminate the respiratory rhythm of neonatal rats [10,13-16] (Figure 3).

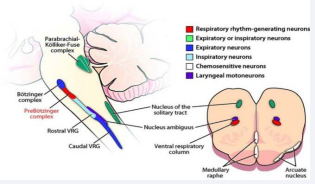

Figure 3: Brainstem and the pre-Bötzinger complex .

An intact pre-Bötzinger complex has therefore proven to be essential for generating normal respiratory rhythm in mammals.

Brainstem and the pre-Bötzinger complex

Respiratory cycle: During a respiratory cycle consisting of inspiration and expiration the Central Pattern Generator (CPG) generates only the inspiratory phase while the expiratory phase is passive during quiet breathing [5].

Voice and respiration: Voice plays an important role in human communication. The genetically determined vocal reactions are controlled by the lower brain stem.

Breathing control is very important to precise control of vocal fold movements. Prolonged controlled expiration is necessary to maintain adequate subglottic air pressure to start and sustain voice production [17]. The involvement of the volitional control over respiration must be studied more basically in order get a better understanding of phonation for speech [18]. So, what do we know till now about brain regulation of voicing from the literature.

Brain activity during production of syllables and during production of controlled breathing: There are similar positive functional connections of the left laryngeal motor complex during voluntary voice production (i.e., both syllables /i?i and /ihi/) and during controlled breathing (Figure 4).

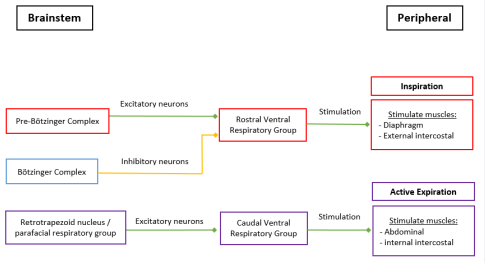

Figure 4: Synapses between brainstem and the respiratory (peripheral) organ during inspiration and active expiration. Modified from [3-6].

Positive functional connections of the left laryngeal motor complex during voluntary voice production (i.e., both syllables /i?i and /ihi/) and during controlled breathing are:

Ventrolateral prefrontal cortex, Insula, thalamus, caudate nucleus, putamen, cerebellum. Functional connections of the right laryngeal motor complex during the referred voice production were comparable to networks of the left laryngeal motor complex, but involved less brain regions, the positive connections of the right laryngeal motor complex during breathing were observed with the right dorso lateral prefrontal cortex, posterior cingulate cortex and left putamen. These findings show a left hemispheric lateralization of the functional networks during voice production, but not during controlled breathing which has a more symmetrical bilateral brain activity [17].

Perspective: There is a need for further research in the area. The neural activity produces a respiratory rhythm which pulsates respiration. Breathing control is very important to precise control of vocal fold movements [5,6]. It has been shown that prolonged control expiration is necessary to maintain adequate subglottic air pressure to start and sustain voice production [17].

A study compared voluntary voice production and controlled breathing, it showed positive functional connections of the left laryngeal motor complex. It also showed, during voice production, that the left hemisphere of the brain is primarily used, which is not the case during controlled breathing, when a more symmetrical, bilateral brain activity are found [18].

Peripheral studies using phonetograms and Air-flow measurements have been made. A multivariate statistical analysis in 16 male brain injury was made [19,20], showing dysregulatory air pressure function without periphery changes in the vocal fold movements. Our results at that time were shocking; in the way that not only the sub glottal air pressure but also the voice intensity regulation in phonetograms was reduced in brain damaged young clients. This means that voiced communication was limited to notes without intensity regulation. Somehow the central regulation of voice is of course severally damaged under these circumstances (Figure 5).

Figure 5: Brain activity during production of syllable´s and during production of controlled breathing [17].

The connection of well-known periphery measurements of phonetograms and air flow compared with central regulation of voice in pathology might in the future be the basis of new knowledge of the central regulation of voice in normal and pathological cases (in prospective randomized trial comparing voice, respiration and brain regulation). Further systematic approaches to voice therapy is a demanding aspect, also on cellular level.

1. Davis PJ, Zhang SP, Winkworth A, Bandler R. Neural Control of Vocalization: Respiratory and Emotional Influences. J Voice. 1996; 10: 23-38.

2. Galgano J, Froud K. Evidence of the voice-related cortical potential: An electroencephalographic study. NeuroImage. 2008; 41: 1313-1323.

3. Smith JC, Abdala AP, Borgmann A, Rybak IA, Paton JF. Brainstem respiratory networks: building blocks and microcircuits. Trends Neurosci. 2013; 36:152-162.

4. Grillner S, Jessell TM. Measured motion: searching for simplicity in spinal locomotor networks. CurrOpinNeurobiol. 2009;19: 572-586.

5. Arshavsky I, Deliagina TG, Orlovsky GN. [Central Pattern Generators: Mechanisms of the Activity and Their Role in the Control of “Automatic” Movements]. Zh Vyssh Nerv DeiatIm I P Pavlova. 2015; 65:156-187.

6. Feldman JL, Del Negro CA, Gray PA. Understanding the rhythm of breathing: so near, yet so far. Annu Rev Physiol. 2013; 75: 423-452.

7. Feldman JL, Del Negro CA. Looking for inspiration: new perspectives on respiratory rhythm. Nat Rev Neurosci. 2006; 7: 232-242.

8. Smith JC, Ellenberger HH, Ballanyi K, Richter DW, Feldman JL. PreBotzinger complex: a brainstem region that may generate respiratory rhythm in mammals. Science. 1991; 254: 726-729.

9. Rekling JC, Feldman JL. PreBotzinger complex and pacemaker neurons: hypothesized site and kernel for respiratory rhythm generation. Annu Rev Physiol. 1998; 60: 385-405.

10.Tan W, Janczewski WA, Yang P, Shao XM, Callaway EM, Feldman JL, et al. Silencing preBotzinger complex somatostatin-expressing neurons induces persistent apnea in awake rat. Nat Neurosci. 2008; 11: 538- 540.

11. Gray PA, Rekling JC, Bocchiaro CM, Feldman JL. Modulation of respiratory frequency by peptidergic input to rhythmogenic neurons in the preBotzinger complex. Science. 1999; 286:1566-1568.

12. Stornetta RL, Rosin DL, Wang H, Sevigny CP, Weston MC, Guyenet PG, et al. A group of glutamatergic interneurons expressing high levels of both neurokinin-1 receptors and somatostatin identifies the region of the pre-Botzinger complex. J Comp Neurol. 2003; 455: 499-512.

13. Koshiya N, Smith JC. Neuronal pacemaker for breathing visualized in vitro. Nature. 1999; 400: 360-363.

14. Gray PA, Janczewski WA, Mellen N, McCrimmon DR, Feldman JL. Normal breathing requires preBotzinger complex neurokinin-1 receptor-expressing neurons. Nat Neurosci. 2001; 4: 927-930.

15. Tan W, Pagliardini S, Yang P, Janczewski WA, Feldman JL. Projections of preBotzinger complex neurons in adult rats. J Comp Neurol. 2010; 518: 1862-1878.

16. Wei XY, Zhao Y, Wong-Riley MT, Ju G, Liu YY. Synaptic relationship between somatostatin- and neurokinin-1 receptor-immunoreactive neurons in the pre-Botzinger complex of rats. J Neurochem. 2012; 122: 923-933.

17. Simonyan K, Ostuni J, Ludlow CL, Horwitz B. Functional but not structural networks of the human laryngeal motor cortex show left hemispheric lateralization during syllable but not breathing production. J Neurosci. 2009; 29: 14912-14923.

18. Loucks TM, Poletto CJ, Simonyan K, Reynolds CL, Ludlow CL. Human brain activation during phonation and exhalation: common volitional control for two upper airway functions. Neuroimage. 2007; 36:131- 143.

19. Pedersen M. Stimmfunktion vor und nachBehandlung von Hirngeschädigten. MitStroboslopie, Phonetographie und Luftstromanalyseduchgefürht. Sprache, Stimme, Gehöhr. 1995; 19: 84-89.

20. Pedersen M, Mahmood S, Jønsson A, Mahmood MS, Akram BH, Agersted AA, et al. Functional examination of voice, a review. Health Science Journal vik. 2016; 4: 20.
