Canine babesiosis, a tick- borne haemoprotozoan disease, characterized by both intravascular and extravascular haemolysis leading to regenerative anaemia, anaemic hypoxia, and metabolic acidosis. ECG changes have never been studied in canine babesiosis caused by B. gibsoni which is more pathogenic and prevalent in India. However, ECG changes occurred in up to 40% cases of canine babesiosis caused by B. canis rossi. The study was conducted to describe the ECG changes in naturally occurring cases of canine babesiosis caused by B. gibsoni. Study was performed on 189 clinical cases diagnosed with canine babesiosis, referred at Medical wing of the Referral Veterinary Polyclinic of the Institute during 2005-2006 by using a 12 lead BPL- ECG machine (CARDIART-408). The mean heart rate (151.3 ± 53.3) was found slightly higher than the standard reference value. Population mean of ‘P’ amplitude (0.17 ± 0.007) and ‘QRS’ duration (0.04 ± 0.02) were found to be slightly lower. Other parameters like ‘P’ duration (0.03 ± 0.01), ‘R’ amplitude (1.05 ± 0.51), ‘R-R’ interval (0.46 ± 0.15) ‘QT’ duration (0.15 ± 0.03), ‘PR’ duration (0.09 ± 0.06) and T: R ratio (0.26 ± 0.26) did not differ much from the standard reference values. The prevalence of electrographic abnormalities were prevalent in 51.3% cases of canine babesiosis with a highest prevalence of tachycardia followed by low voltage complex, sinus arrhythmia, tachy arrhythmia, and atrial fibrillation. The dogs with Babesia infection also showed various types of complex changes. From the present study it appears that the ECG changes in canine babesiosis are multifactorial and heart suffers from same pathological process.

• B. gibsoni

• Canine

• Dog

• ECG

• Electrocardiograph

Chaudhuri S, Varshney JP, Changkija B (2017) Electrocardiographic Changes in Canine Babesiosis. Arch Palliat Care 2(2): 1014.

ECG: Electrocardiogram; B. gibsoni: Babesia gibsoni; E. canis: Ehrlichia canis; E. platys: Ehrlichia platys

Canine babesiosis, a tick- borne haemoprotozoan disease caused by the species of Babesia (B. canis, B. gibsoni and B. vogeli) is well documented in tropical and subtropical regions of the world. In India both B. canis [1,2] and B. gibsoni [3-6] infections have been reported. Importance of canine babesiosis varies in different regions of the world and in different states of the country, owing to strain or species variations of Babesia and various ecological factors [7]

Babesiosis is characterized by both intravascular and extravascular haemolysis leading to regenerative anaemia, anaemic hypoxia, and metabolic acidosis. Parasitaemia, destruction of organism (Babesia spp.) and erythrocytes may result in activation of various inflammatory mediators causing pyrexia [8,9]. Molecular mediators of multiple organ dysfunctions including cytokines, nitric oxide and free oxygen radicals are generated by the host tissues in response to parasite rather than directly from parasite itself [9]. Complicated babesiosis is associated with dysfunction of other organs. It is speculated that cardiac changes may develop in canine babesiosis owing to overwhelming inflammatory response and anaemic-hypoxic state [10]. Ischaemia and myocarditis can decrease resting potential of the involved cells leading to a conductional block resulting in arrhythmias [11]. Such changes are well documented in human cardiology and are accompanied by typical electrocardiographic changes. Cardiac changes have been described in human malaria. Its acute phase has many similarities to canine babesiosis [12]. Researchers conducted in Pretoria (South Africa) have indicated that ECG changes occurred in up to 40% cases of canine babesiosis caused by B. canis rossi. However, ECG changes have never been studied in canine babesiosis caused by B. gibsoni which is more pathogenic and prevalent in India, Malaysia, Korea, Egypt, Japan and United States.

The purpose of this study was to describe ECG changes in naturally occurring cases of canine babesiosis caused by B. gibsoni.

Study design

A prospective study was performed on 189 dogs of different breeds (Pomeranian, German shepherd, Non-descript, Labrador, Dobermann, Great Dane, Sptiz, Boxer, Bhutia, Dalmatian, Cockerspaniel, Apso, Rampur hound, Rottweiler, Golden Retriever, Dachschund, Greyhound and Nepolian Mastiff) diagnosed with canine babesiosis. All the dogs were client- owned and were referred at Medical wing of the Referral Veterinary Polyclinic of the Institute.

Inclusion criteria

Ailing dogs found cytologically positive for small Babesia simulating to Babesia gibsoni on the examination of their capillary blood smears prepared freshly from ear tip and stained with Giemsa stain.

Cytologically B. gibsoni positive dogs having no cardiac disease previously diagnosed or treated or suspected at presentation.

Exclusion criteria

Dogs with B. gibsoni having concurrent infection of Ehrlichia canis, E. platys, Trypanosoma evansi or Dirofileria immitis.

Dogs having chronic heart problem.

Dogs having unusual clinical signs not previously observed in Babesia infection.

Each ailing dog was compiled on a 20 point scale having clinical sign as anorexia/partial appetite, dehydration, pyrexia, dullness/depression, diarrhoea/constipation, pale mucosa, ticks on body, hepatolmegaly, vomiting/nausea, splenomegaly, rapid thready pulse, nasal discharge, ataxia/CNS signs, distended abdomen/ascites, dysponea, yellow coloured urine, emaciation/ weight loss, epistaxis, occular discharge and edema. Presence of each clinical sign was assigned 01 mark.

Electrocardiographic recoding was made by using a 12 lead BPL- ECG machine (CARDIART-408). The dogs were restrained in right lateral recumbancy on a table having foam cushion and rubber matting and were made comfortable before taking electrocardiogram. The legs were positioned parallel to each other and vertical to the long axis to the body and keeping the head and neck flat on the table. The skin and electrodes were moistened with the alcohol. The right forelimb (RA) and left forelimb (LA) electrode were placed proximal to the olecranon on the caudal aspect of the respective forelegs. The right hind limb (RF) and left hind limb (LF) electrodes were placed over the patellar ligament on the anterior aspect of the respective hind limbs. Sedation was not used in any dog. Sensitivity and paper speed were set at 1 and 25mm sec-1, respectively Manual Hum filter (notch filter at 50Hz) and EMG filter (cut off frequency of -3dB at 35 Hz) were used to minimize the disturbances. A one minute lead II ECG was recorded in all dogs. The following parameters were evaluated from ECG tracing on lead II:

Arrhythmias, classified according to their origin, named in standard way [13] and their prevalence.

Cardiac rhythm, classified as sinus arrhythmia, regular.

Presence of ST coving

Heart rate was calculated by counting the R-R intervals over 5 non-consecutive 3 seconds intervals multiplied by 4.

The following parameters were measured and averaged for 5 non-consecutive R-R intervals on lead II:

P- wave amplitude and duration

PR- interval duration

R- wave amplitude

QRS- duration

QT- interval duration

T- wave amplitude

ST- segment depression or elevation

The numerical parameters were compared to the standard dog ECG [13] and noted as categorical variables. The following parameters were categorized as normal, high or low: heart rate, ‘P’ amplitude, ‘R’ amplitude, and ‘T’ amplitude; following parameters were categorized as normal, prolonged or shortened: ‘P’ duration, ‘QRS’ duration, ‘QT’ duration and ‘PR’ duration; and R-R interval was classified as regular or irregular. ‘T’ amplitude was evaluated as a T/R ratio. A ratio of 0.25 was regarded as normal and a ratio below 0.25 as low.

The data was analyzed according to [14]. Each ECG parameters was analyzed for percentage of abnormal and normal observations.

One hundred eighty nine dogs with babesiosis were included in this phase of the study. The main clinical signs were anorexia/partial appetite, dehydration, temperature, dull/ depressed, diarrhoea/constipation, pale mucosa, ticks on body, hepatolmegaly, vomiting/nausea, splenomegaly, rapid thready pulse, nasal discharge, ataxia/CNS signs, distended abdomen/ ascites, dysponea, yellow coloured urine, emaciation/weight loss, epistaxis, occular discharge and edema in various combinations. An overall mean clinical score, based on 20 point scale, was 8.47 ± 0.27 with an individual score varying from 3 to 14. These dogs were cytologically positive for B. gibsoni having parasitaemia ranging from 1.30% to 15.50%

Measurable data derived from the lead II of the ECG strips of a population of 189 dogs, diagnosed with babesiosis caused by B. gibsoni, are summarized in (Table 1).

Tables

The mean heart rate (151.34 ± 53.36) was slightly higher than the standard reference value. Population mean of ‘P’ amplitude (0.17 ± 0.007) and ‘QRS’ duration (0.04 ± 0.02) were found to be slightly lower. Other parameters like ‘P’ duration (0.03 ± 0.01), ‘R’ amplitude (1.05 ± 0.51), ‘R-R’ interval (0.46 ± 0.15) ‘QT’ duration (0.15 ± 0.03), ‘PR’ duration (0.09 ± 0.06) and T: R ratio (0.26 ± 0.26) did not differ much from the standard reference values.Nevertheless, heart rate was high in 51 and low in 4; ‘P’ amplitude was low in 3; ‘R’ amplitude was low in 17; ‘R-R’ interval was irregular in 15; ‘QRS’ duration was prolonged in 6 and shortened in 9; ‘QT’ duration was prolonged in 1 and shortened in 5; ‘PR’ duration was prolonged in 3 and shortened in 7; and ‘T’ amplitude was low in 39 dog (Table 2).

The prevalence of electrographic abnormalities was studied in 189 dogs having babesiosis due to natural infection of B. gibsoni. The results of abnormalities detected in the ECG strips are given in (Table 3).

51.32% dogs with babesiosis, due to B. gibsoni, were found to have either single (47.10%) or multiple (4.23%) abnormalities in the ECG strips. Of the 89 dogs having single ECG abnormality, the prevalence of tachycardi(Figure 1 ),

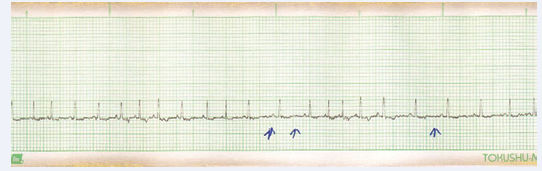

Figure 1 Showing Sinus Tachycardia.

low voltage complex (Figure 2)

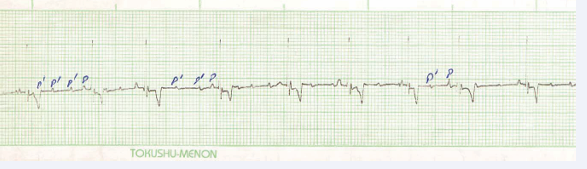

Figure 2 Showing Low Voltage Complex (LVC)

, sinus arrhythmia (Figure 3),

Figure 3 Showing Sinus Arrhythmia

tachy arrhythmia (Figure 4),

Figure 4 Showing Tachyarrhythmia.

atrial fibrillation (Figure5)

Figure 5 Showing Atrial Fibrillation

sinus arrest(Figure 6),

Figure 6 Showing Sinus Arrest

Mobitz type II heart block; ST depression (> 0.2 mV), ventricular premature complex (VPC) (Figure 7),

Figure 7 Showing Ventricular Premature Complex (VPC)

bradycardia (Figure 8),

Figure 8 Showing Bradycardia

brady arrhythmia, ST elevation (> 0.15 mV) (Figure 9)

Figure 9 Showing ST elevation.

and ST coving (Figure 10),

Figure 10 Showing ST coving.

atrial paroxysmal tachycardia (Figure 11)

Figure 11 Showing Atrial Paroxysmal Tachycardia.

was to the tune of 35.96%, 17.98%, 13.48%, 6.74%, 5.62%, 4.49%, 3.37%, 3.37%, 2.25%, 2.25%, 1.12%, 1.12%, 1.12% and 1.12%, respectively

The dogs with Babesia infection also showed various types of complex changes viz, ST coving with broad QRS; ST elevation with coving; ST depression with atrial fibrillation; ST depression with tachycardia; ST depression with sinus arrest; ST depression, broad QRS, ST coaving with increased R wave amplitude, and low voltage complex with tachycardia accounting for 25.0%, 12.5%, 12.5%, 12.5%, 12.5%, 12.5% and 12.5% among the dogs with complex ECG changes (Table 3).

Electrocardiographic recordings of 189 dogs with babesiosis, caused by B. gibsoni, were studied. The study showed that ECG changes occurred in up to 51.32% dogs in some parameters. The prevalence of ECG abnormalities in dogs with babesiosis, caused by B. gibsoni, are on little higher side as compared to 40% reported in canine babesiosis in Africa, caused by B. canis [15]. The more common ECG changes were tachycardia, low voltage ‘R’ complex, sinus arrhythmia, tachyarrhythmia, atrial fibrillation and sinus arrest. The mean heart rate for the whole population was 151.34 ± 53.36 bpm which is slightly on the higher side of the normal range (Table 1) as reported in septic conditions [16]. Thirty two dogs had tachycardia and six dogs showed Tachyarrhythmia. Increased heart rate results in increased cardiac output to compensate for the anaemia and metabolic effects of the disease [18]. Population mean for ‘P’ amplitude (0.17 ± 0.07 mV), ‘P’ duration (0.03 ± 0.01 sec), ‘R’ amplitude (1.05 ± 0.51 mV), ‘QRS’ duration (0.04 ± 0.02 sec), ‘QT’ duration (0.15 ± 0.03 sec), ‘PR’ duration (0.09 ± 0.06 sec) was slightly on lower side and for T:R ratio (0.26 ± 0.25) was slightly on higher side than the mean standard reference values (Table 1) but these values did not differ significantly. Bradycardia was seen in two dogs with complicated disease and seems to be a poor prognostic indicator in canine babesiosis [15].

Sinus bradycardia associated with syncope and sudden death has been reported in cardiomyopathies [19]. Bradyarrhythmia observed in one dog had negative clinical impact on exercise due to cerebral hypoxia [20]. There was higher prevalence of cardiac arrhythmia which seems to be due to haemodynamic changes in babesiosis. Five of the dogs had atrial fibrillation, atrial paroxysmal tachycardia was seen in 01, sinus arrest in 04, second degree heart block in 03 and ventricular premature complexes in 02 dogs. Based on ECG findings of conduction abnormalities associated with irregular rhythm, the conduction system could have been involved in this inflammatory process. Sinus arrest is a failure to form an impulse. Sino-atrial block can be a normal incidental finding in the dog [21]. However, this is probably not the case in the present study as the dogs were sick and stressed. SA block can also be a result of extra cardiac causes viz., vagal irritation or hyperkalaemia [22]. Ventricular premature complex is a very non-specific arrhythmia that has been described in myocarditis owing to various causes [23], myocardial infarcts and ischaemia [24], septic condition [25], anaemia [22], and acid base electrolyte disturbances [26]. All these conditions are well documented in canine babesiosis, caused by B. gibsoni.

Three dogs in this study had Mobitz type II heart block. These can be incidental findings in the normal dogs [27], but in the present case, the dogs were sick and stressed. In sick dogs Mobitz type II A V block was seen after inducing ischaemic damage at the area of proximal bundle of His and increased heart rate [28]. This could occur in canine babesiosis. Such changes have also been reported in acute and chronic Chagas disease [17,29] and in other forms of myocarditis [23 ].

Low voltage ‘R’ complex was found in sixteen dogs. It is a common sign in pericardial effusion [30] and pleural effusion [22]. [15] observed a statistically significant correlation between the presence of small ‘R’ and pericardial effusion in cases of canine babesiosis caused by B. canis. Based on this study it appears that the prevalence of pericardial effusion in babesiosis, caused by B. gibsoni, was also higher. Effusion into cavities have been described as rare in canine babesiosis [31-33] but based on the present study the prevalence seems high. Low ‘R’ wave amplitude has been reported in association with myocardial disease, reduced left ventricular function [34-36] and myocardial infarction [37].

ST deviation (depression and elevation) and ST coving are non specific signs of myocardial ischaemia in dogs [22]. Diagnosis of myocardial ischaemia, based on ST deviation in different leads, is routine in human cardiology [38]. ST depression has been reported in humans with malaria [39], in dogs with ‘Chagas’ disease [29] myocardial infraction [40] and atherosclerosis [41]. In the present study, it was another sign supporting ischaemic changes within myocardium in canine babesiosis.

In 8 dogs with babesiosis more than one change in ECG strips were recorded (Table 3). ‘ST’ coving and broad ‘QRS’ seen in 2 dogs, were suggestive of left ventricular enlargement [22]. ‘ST’ elevation with coving indicated myocardial hypoxia or ischaemia. ‘ST’ depression with atrial fibrillation, ‘ST’ depression with tachycardia, ‘ST’ depression with sinus arrest, low voltage complex with tachycardia, and ‘ST’ depression with broad ‘QRS’, ‘ST’ coving and increased ‘R’ amplitude were also suggestive of myocardial ischaemia and/or myocardial involvement [22] in cases of canine babesiosis caused by B. gibsoni.

From the study it appears that the ECG changes in canine babesiosis are multifactorial and heart suffers from same pathological process, which has been observed for other organ involvement in canine babesiosis namely inflammatory reaction and ischaemia [9].
