Familial platelet disorder with propensity for myeloid malignancy (FPD/AML), an autosomal dominant disorder associated with mutations in the RUNX1 gene, is characterized by mild to moderate thrombocytopenia, abnormal platelet function, and an increased risk of developing myeloid malignancy. We describe a pedigree with a novel RUNX1 mutation in which the prob and presented with mild thrombocytopenia. She had undetectable IgA levels (T (pE223X)) was detected on peripheral blood sampling. Her maternal half-brother with a history of celiac disease tested positive for the same mutation. The patient was undergoing in vitro fertilization at the time of diagnosis and a wild-type RUNX1 embryo was selected for implantation with subsequent delivery of a healthy baby. We contribute a unique finding of IgA deficiency to the clinical phenotype of FPD/AML. This is also the first report of embryo selection being used to prevent inheritance of an autosomal dominant RUNX1 mutation.

RUNX1 ; Familial platelet disorder ; MDS ; AML ;IgA deficiency

O’Neill C, Siddiqi I, Gruber S, McDonnell K, Moayeri S, et al. (2017) Co-Occurrence of Platelet Dysfunction, Myeloid Malignancy and IgA Deficiency in a Family with a Novel RUNX1 Mutation. JSM Bone Marrow Res 1(1): 1004.

RUNX1 is a member of the RUNX family of transcription factors, which plays an important role in the development and differentiation of hematopoietic cells. [1] Mutations in RUNX1 can promote leukemogenesis as seen in AML, MDS, and familial syndromes with a predisposition to hematologic malignancies [2,3]. RUNX1 is also involved in the development and function of the immune system and disruptions in RUNX1 may promote autoimmunity [4,5].

Familial platelet disorder with propensity for myeloid malignancy (FPD/AML) due to inherited RUNX1 mutations is an autosomal dominant disorder characterized by mild to moderate thrombocytopenia, abnormal platelet function, and an increased risk of developing myeloid malignancies such as acute myelogenous leukemia (AML) and myelodysplastic syndrome (MDS) [6,7]. In addition to the common manifestations of this syndrome, findings such as eczema and lymphoid malignancies have also been reported [8,9].

Latger-Cannard et al., recently published the largest cohort of individuals with FPD/AML consisting of nine pedigrees with unique RUNX1 mutations [10]. Most patients had mild to moderate thrombocytopenia and evidence of defective dense granule release. Bone marrow biopsies for seven patients were examined and showed marked dysmegakaryopoiesis. Among these 41 patients, there were no novel clinical features described as part of the FPD/AML phenotype.

We describe a pedigree with a novel RUNX1 mutation in which the prob and presented with mild thrombocytopenia. Immunoglobulin A deficiency and celiac disease were found in the affected family members that may be related to the RUNX1 mutation and is a unique feature of this syndrome not previously reported. In addition to the bone marrow features described by Latger-Cannard et al., biopsies in two of our patients showed mild eosinophilia with atypical granulation not previously described.

The patient is a 29-year-old Caucasian female who was referred by her primary physician for thrombocytopenia. She had been found to have a platelet count of 81 x109 /L, which was decreased from 90 x109 /L a few months prior. She was first noted to have a similarly low platelet count at the age of ten but this did not prompt referral to a hematologist until it was noted during a fertility workup at the age of 28. The patient reported a lifelong history of easy bruising but no major bleeding problems or need for transfusions. Her mother had presented to the same hematologist 18 months earlier at the age of 56 years for leukocytosis, anemia, and severe thrombocytopenia. She was known to have had a normal platelet count 18 months prior to presentation but a lifelong history of easy bruising. She had undetectable IgA levels (<5mg/dL). Her bone marrow biopsy suggested an overlap syndrome of Myelodysplastic/ Myeloproliferative Neoplasm. She died of complications related to thrombocytopenia refractory to transfusions and spontaneous cerebellar hemorrhage one month later without having received therapy for the underlying myeloid malignancy. The patient’s maternal grandmother and great-uncle had died of acute myelogenous leukemia (Figure 1).

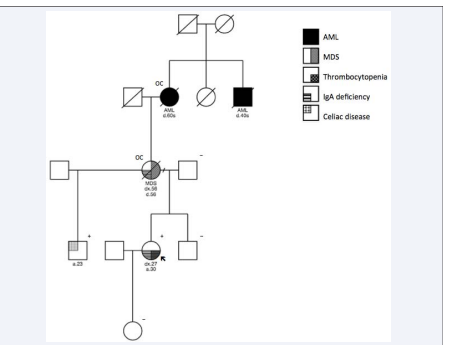

Figure 1 Phenotypic variation in a family with a germline RUNX1 mutation. −, negative for RUNX1 mutation; +, positive for RUNX1 mutation; d, age of death; a, age at last contact; dx, age of diagnosis; OC, obligate carrier; AML, acute myelogenous leukemia; MDS, myelodysplastic syndrome.

One brother from the same parents as the patient is alive and healthy; the other brother of the same mother but different father is alive and healthy except for a history of celiac sprue.

The patient was taking no medications at the time of presentation. Physical examination was notable only for a few healing ecchymoses

Initial laboratory evaluation showed a white count of 4 x103 / mcL with a normal differential, hemoglobin of 14.5 g/dL (MCV) 96.1 fL, RDW 12.8%), and platelet count of 84 x109 /L (MPV 8.6 fL). Absolute reticulocyte count was 93,200. Of note, she was found to have undetectable IgA levels (<5 mg/dL), like her mother, which was confirmed on repeat testing. Given a family history of celiac disease in one brother, tissue transglutaminase IgG and IgA were tested and were not elevated.

Peripheral blood smear showed normal to small size granular platelets, morphologically normal red blood cells, neutrophils with good nuclear segmentation and cytoplasmic granularity and mild eosinophilia. Bone marrow biopsy demonstrated a normocellular marrow (60%) with moderate erythroid hyperplasia, mildly increased megakaryocytes, mild eosinophilia, and no increase in blasts (<5%). Approximately one-third of the megakaryocytes displayed atypical features. These included (in descending order of prevalence): smaller size, increased nuclear: cytoplasmic ratios, decreased nuclear lobation, and/or separate nuclear lobes (Figure 2, A-C).

Figure 2 Atypical megakaryocyte morphology on bone marrow aspirate smears. In the patient (A-C), megakaryocytes included frequent small forms with increased nuclear to cytoplasmic ratios and decreased nuclear lobation (A, B) as well as a few forms with separate nuclear lobes (C). The patient’s brother (D-E) and mother (F) showed a similar spectrum of atypical megakaryocyte morphology. In addition, eosinophils with coarse basophilic granules were also noted in the patient as well as her brother (B and E, respectively, asterisk). (Wright-Giemsa stain, x1000). Atypical megakaryocyte morphology on bone marrow aspirate smears. In the patient (A-C), megakaryocytes included frequent small forms with increased nuclear to cytoplasmic ratios and decreased nuclear lobation (A, B) as well as a few forms with separate nuclear lobes (C). The patient’s brother (D-E) and mother (F) showed a similar spectrum of atypical megakaryocyte morphology. In addition, eosinophils with coarse basophilic granules were also noted in the patient as well as her brother (B and E, respectively, asterisk). (Wright-Giemsa stain, x1000).

Eosinophils and precursors were mildly increased and included some with coarse basophilic granules (Figure 2B). Interestingly, a similar spectrum of bone marrow morphology was seen in the patient’s brother, who did not have thrombocytopenia (Figure 2, D-E). In her mother’s bone marrow biopsy, megakaryocytes were decreased, but again included small forms with high nuclear: cytoplasmic ratios and reduced nuclear lobation (Figure 2F).

Due to the significant family history, molecular testing was done on this patient. A heterozygous mutation in exon 7 of the RUNX1 gene (c.667G>T (pE223X)) resulting in a premature stop codon was detected on peripheral blood sampling. No mutations were found in ASXL1, EZH2, ETV6 or TP53. Further testing of saliva and buccal specimens demonstrated similar levels of this mutation when compared with the blood, consistent with a germline mutation. Her maternal half-brother with a history of celiac disease also tested positive for the same mutation. Her father and one brother were negative for the RUNX1 mutation and no specimen from the mother was available for testing.

The patient was undergoing in vitro fertilization at the time of diagnosis. Embryos were frozen after biopsy at day 5/6 of development. Using laser dissection, approximately 5 to 10 cells were removed from the trophoectoderm of each blastocyst for mutational analysis and a RUNX1 negative embryo was selected for implantation.

During pregnancy, her platelets ranged from 100 to 79 x109 /L but she had no major bleeding problems. In fact, she had resolution of her spontaneous bruising during pregnancy. Platelet function testing during the third trimester showed abnormal platelet aggregation in response to epinephrine. Platelets increased to 105 x109 /L after delivery. She is now 52 weeks status post uncomplicated vaginal delivery of a healthy baby girl.

We describe a pedigree with FPD/AML for which mutational testing was done for two patients revealing a novel RUNX1 mutation. The prob and had thrombocytopenia and platelet dysfunction and her half brother had a normal platelet count and absence of bleeding symptoms. Their mother had a normal platelet count but a history of easy bruising prior to developing MDS. FPD/AML is known to produce a variable phenotype among affected individuals who share the same RUNX1 mutation and only a proportion of affected members develop AML [11,12]. It may be that significant platelet dysfunction and progression to leukemia develop as a result of the accumulation of additional mutations in RUNX1 and other genes.

Additionally, this pedigree shows evidence of immune dysfunction including IgA deficiency and celiac disease, neither of which has previously been described in association with FPD/ AML. Sorrell et al described a pedigree with a RUNX1 mutation at the 3-prime end of exon 8 (c.1413_1414insGC (p. L472X)) in which carriers had mild to severe eczema that directly correlated to their degree of thrombocytopenia and/or clinical bleeding difficulties [8]. One report describes a patient with FPD/AML due to a RUNX1 mutation in exon 8 (c.837G>A (p.W279X) who had a history of recurrent infections during childhood including lower extremity cellulitis, periorbital cellulitis, and perirectal abscess [13]. Similar to our pedigree, mutations in these cases were within the C-terminal region of the RUNX1 gene, which is less common as most RUNX1 mutations associated with FPD/AML are found within the runt-homology domain near the N-terminus of RUNX1 [14].

Voon et al., reviewed the role of the RUNX complex as a regulator of hematopoiesis and its effects on immune function, particularly their rolein the developmental pathway of many immune effector cells [4]. The RUNX proteins are each involved at different stages of B cell differentiation including transforming growth factor beta-mediated IgA class switching [15,16]. The RUNX complex is also involved in the differentiation and function of regulatory T cells and disruptions in these proteins are shown to be associated with autoimmune conditions such as systemic lupus erythematosus and psoriasis [17]. Variations in the RUNX3 locus have been associated with celiac disease and ulcerative colitis [18,19]. Alteration of the RUNX1 gene may be responsible for both IgA deficiency and celiac disease seen in our pedigree, however there is currently no evidence of a direct link between RUNX1 mutations and these entities. This may be a potential area for further study.

Latger –Cannard et al., described the bone marrow features of seven patients with FPD/AML. Biopsy specimens showed dysmegakaryopoiesis with hypolobulated or immature megakaryocytes with high nucleo-cytoplasmic ratio, strongly basophilic cytoplasm, and poorly lobulated nuclei in association with micromegakaryocytes [10]. These findings were consistent with those seen in our pedigree. In addition to megakaryocyte abnormalities, bone marrow biopsies for two patients in our pedigree show increased eosinophils with atypical basophilic granulation (Figure 2).

In conclusion, we contribute to the literature a report of a novel mutation in a FPD/AML pedigree with unique features of the bone marrow histology and clinical phenotype. This is also the first report of embryo selection being used to prevent inheritance of an autosomal dominant RUNX1 mutation. We hope these findings will improve the ability of clinicians and pathologists to recognize this entity.

1. Rossetti S, Sacchi N. RUNX1: A microRNA hub in normal and malignant hematopoiesis. Int J Mol Sci. 2013; 14: 1566-1588.
2. Hart SM, Foroni L. Core binding factor genes and human leukemia. Haematologica. 2002; 87: 1307-1323.
3. Song WJ, Sullivan MG, Legare RD, Hutchings S, Tan X, Kufrin D, et al. Haploinsufficiency of CBFA2 causes familial thrombocytopenia with propensity to develop acute myelogenous leukaemia. Nat Genet. 1999; 23: 166-175.
4. Voon DC, Hor YT, Ito Y. The RUNX complex: reaching beyond haematopoiesis into immunity. Immunology. 2015; 146: 523-536.
5. Wong WF, Kohu K, Nakamura A, Ebina M, Kikuchi T, Tazawa R, et al. Runx1 deficiency in CD4+ T cells causes fatal autoimmune inflammatory lung disease due to spontaneous hyperactivation of cells. J Immunol. 2012; 188: 5408-5420.
6. Michaud J, Feng W, Osato M, Cottles G, Yanagida M, Asou N, et al. In vitro analyses of known and novel RUNX1/AML1 mutations in dominantfamilial platelet disorder with predisposition to acute myelogenous leukemia:implications for mechanisms ofpathogenesis. Blood. 2002; 99:1364-1372.
7. Owen CJ, Toze CL, Koochin A, Forrest DL, Smith CA, Stevens JM, et al. Five new pedigrees with inherited RUNX1 mutations causing familial platelet disorder with propensity to myeloid malignancy. Blood. 2008; 112: 4639-4645.
8. Sorrell A, Espenschied C, Wang W, Weitzel J, Chu S, Parker P, et al. Hereditary leukemia due to rare RUNX1c splice variant (L472X) presents with eczematous phenotype. Int J Clin Med. 2012; 3.
9. Linden T, Schnittger S, Groll AH, Juergens H, Rossig C. Childhood B-cell precursor acute lymphoblastic leukaemia in a patient with familial thrombocytopenia and RUNX1 mutation. Br J Haematol. 2010; 151: 528-530.
10. Latger-Cannard V, Philippe C, Bouquet A, Baccini V, Alessi MC, Ankri A, et al. Haematological spectrum and genotype-phenotype correlations in nine unrelated families with RUNX1 mutations from the French network on inherited platelet disorders. Orphanet J Rare Dis. 2016; 11: 49.
11. Ganly P, Walker LC, Morris CM. Familial mutations of the transcription factor RUNX1 (AML1, CBFA2) predispose to acute myeloid leukemia. Leuk Lymphoma. 2004; 45: 1-10.
12. Owen C, Barnett M, Fitzgibbon J. Familial myelodysplasia and acute myeloid leukaemia--a review. Br J Haematol. 2008; 140: 123-132.
13. Schmit JM, Turner DJ, Hromas RA, Wingard JR, Brown RA, Li Y, et al. Two novel RUNX1 mutations in a patient with congenital thrombocytopenia that evolved into a high grade myelodysplastic syndrome. Leuk Res Rep. 2015; 4: 24-27.
14. Liew E, Owen C. Familial myelodysplastic syndromes: a review of the literature. Haematologica. 2011; 96: 1536-1542.
15. Watanabe K, Sugai M, Nambu Y, Osato M, Hayashi T, Kawaguchi M, et al. Requirement for Runx proteins in IgA class switching acting downstream of TGF-beta 1 and retinoic acid signaling. J Immunol. 2010; 184: 2785-2792.
16. Whiteman HJ, Farrell PJ. RUNX expression and function in human B cells. Crit Rev Eukaryot Gene Expr. 2006; 16: 31-44.
17. Alarcón-Riquelme ME. Role of RUNX in autoimmune diseases linking rheumatoid arthritis, psoriasis and lupus. Arthritis Res Ther. 2004; 6: 169-173.
18. Dubois PC, Trynka G, Franke L, Hunt KA, Romanos J, Curtotti A, et al. Multiple common variants for celiac disease influencing immune gene expression. Nat Genet. 2010; 42: 295-302.
19. Weersma RK, Zhou L, Nolte IM, van der Steege G, van Dullemen HM, Oosterom E, et al. Runt-related transcription factor 3 is associated with ulcerative colitis and shows epistasis with solute carrier family 22, members 4 and 5. Inflamm Bowel Dis. 2008; 14: 1615-1622.
