Inhibitory Effect of Stachytarpheta mutabilis Extracts on the Corrosion of Mild Steel in Acidic Media
- 1. Department of Pure and Applied Chemistry, University of Calabar, Nigeria
Abstract
The anticorrosive potential of Stachytarpheta mutabilis leaf extract (SMLE) as a corrosion inhibitor for corrosion of mild steel (MS) in 1 M HCl was investigated using weight loss measurement as well as gasometric techniques at 30 and 60 o C. Relevant thermodynamic equations were employed to estimate the activation energy, enthalpy change and entropy change. The adsorption isotherms were used to determine the Gibbs free energy change. Results obtained showed that SMLE functioned as an excellent corrosion inhibitor for mild steel in the acidic environment. Temperature studies revealed a decrease in inhibition efficiency with increase in temperature and activation energies increased in the presence of the extract. The adsorption of SMLE on mild steel was approximated using Freundlich, Flory-Huggins, Frumkin, El-Awary’s and Temkin isotherms but Langmuir gave the best fit. Both kinetic and thermodynamic parameters governing the adsorption process were calculated and discussed. The adsorption followed a first order kinetics. As concluded from the results, the adsorption of S. mutabilis on mild steel in 1M HCl medium is feasible, spontaneous and it occurred by physical adsorption. From the experimental results obtained, it can be concluded that SMLE inhibit corrosion effectively when compared well with many reported green inhibitors for MS corrosion.
Keywords
Stachytarpheta mutabilis; Isotherms; Kinetics; Thermodynamics; Corrosion inhibition; Efficiency
CITATION
Effiong BB, Ikpi ME (2023) Inhibitory Effect of Stachytarpheta mutabilis Extracts on the Corrosion of Mild Steel in Acidic Media. JSM Chem 10(2): 1064.
INTRODUCTION
The corrosion of metals in many industrial operations has become a serious problem that requires a broad-reaching approach due to ; cost of maintenance, replacement of damaged component, labour cost as well as the cost incurred during installation .Companies loss billions of dollars as a result of corrosion of iron and steel in the oil and drilling sector due to contamination of product, loss productivity via product delays and failures to meet specification, efficiency, litigation and taxes and overhead imposed on corroded portion of goods and services [1]. In order to prevent or minimize corrosion, organic and /or inorganic substances referred to as inhibitors are usually added to the system to inhibit corrosion via chemisorptions and/or physisorption mechanism on the metal surface or by reacting with metal ions and forming a barrier precipitate that keeps the interface away from corrosion agents [2]. These inhibitors based on their functional properties mitigate corrosion by; increasing the electrical resistance at the metal-electrolyte interface and hydrogen overvoltage, shifting the corrosion potential/ polarization of the metal surface to either cathodic or anodic end or both and decreasing the permeation of ions onto the metal interface [3,4].The use of plant extracts as an anticorrosive inhibitors have been validated by their elemental and electronic configurations such as oxygen, nitrogen or sulphur, and multiple bonds presence, which allow an adsorption on the metal surface [5,6].
Several investigators have reported the use of myriads of synthetic organic compounds as inhibitors such as benzylaminopurine [7], S-triazole-triazole derivatives [8], azoles (Popova et al., 2007), Schiff base [9], pyridine derivatives [10], pyrazole derivatives [11], bipyrazole derivatives [12], pyrimidine derivatives [13], and benzimidazolederivatives [14,15] as effective corrosion inhibitors in acidic media. Nevertheless, most of these inhibitors are not environmentally friendly but toxic and expensive with attendant safety issues. Therefore, the study of non-toxic or environmentally friendly corrosion inhibitors is important to overcome this challenge. Recent literatures highlighting the use of plant extract from Carica papaya, Rosmarinus Officinalis, Damsissa, Murrayakoenigii, cashew, mango, Uncaria gambir, Fiscusycomorus, Gum Arabic, Raphia hookeri, Ipomoea invulcrata, Vigna unguiculata, Pachylobus edulis, Ginseng root, Dacroydes edulis and Zenthoxylum alatum had been investigated and [16-22] Ogunleye et al., 2018; [23-30] to mention but a few have been found to exhibit anticorrosion inhibiting effect for metal in acidic/alkaline media. In our continuous quest to explore, verify and validate more natural products of plant origin as corrosion inhibitors, the present study is on Stachytarpheta mutabilis leaf extract. Perusals of literatures however, revealed that the anticorrosive inhibiting action of Stachytarpheta mutabilis has not been tested for metals in acidic/ alkaline media to the best of our knowledge.
Stachytarpheta mutabilis belongs to the family Verbenaceae.
The verbena family has more than 2600 species and 100 genera with Stachytarpheta mutabilis as the most popular and abundant species [31]. It is commonly called ‘Red porterweed’, ‘pink snakeweed’, ‘coral poterweed’ or ‘red snakeweed’ [32]. Stachytarpheta mutabilis has been known to exhibit antibacterial and hypoglyceric effect on living tissues and as a result, have been well employed in the treatment of malaria, stomach-ache and cholera. It has also been used as a vermifuge or purging vehicle, in the treatment of eye trouble, heart trouble, yellow fever and gonorrhea [33]. It has been reported elsewhere that Stachytarpheta mutabilis has an anti-viral activity against chronic and acute hepatitis [34]. Several literatures have reported that sulphur containing compounds in Stachytarpheta mutabilis are responsible for its pharmacological properties. These compounds include alkaloids, flavonoids, tannins etc [35-37]. Consequent upon this, the extracts of this plant, which contains numerous naturally environmentally organic compounds, may be utilized as eco-friendly corrosion inhibitors.
To gain insight on the working and applicability of S. mutabilis for commercial purposes, the inhibition mechanism, kinetics and process thermodynamics were examined. This present study deployed gravimetric and gasometric techniques at 30 and 60 °C to evaluate another eco-friendly material Stachytarpheta mutabilis leaves extract (SMLE), for use as an engineering inhibitor on MS submerged in a 1 M HCl solution. The kinetics and thermodynamic parameters for maximum corrosion inhibition using SMLE were established.
MATERIALS AND METHODS
Materials preparation
Materials preparation The mild steel sheets used in this work were obtained from St. Iyke Iron and Steel, Mutala Mohammed Highway Calabar, Cross River State, Nigeria. Small piece of 5cm x 4cm and 4cm x 2cm coupons were cut off from a full sheet of about 1mm in thickness for the weight loss and hydrogen evolution technique respectively. Before taking measurements, all the mild steel samples were mechanically polished using emery paper of upto 600 grits, degreased with absolute ethanol, dried in acetone and stored in moisture free desiccators before their use in corrosion studies.
Preparation and extraction of S. mutabilis leaf extract (SMLE)
The procedure for the preparation of the leaf extracts is similar to that reported by Okafor et al., (2028). The leaves of Stachytarpheta mutabilis were collected as required from a local bush of Parliamentary in Ikot Ishie, Calabar Municipality, Cross River State, Calabar, Nigeria and were authenticated at the herbarium of the University of Calabar, Calabar, Nigeria. The leaves were oven dried in a N53C – Genlab Laboratory oven at 323K, to avoid denaturing. The undenatured sample was blended with a commercial blender until it became powdery in nature. The weight was taken and stored in an air tight sample bottle for future use.
Dried and powdered leaves of S. mutabilis were extracted with absolute ethanol in Soxhlet apparatus for 2 hrs. After completion of extraction, the extract was filtered and heated on a water bath at 60 °C until most of the ethanol evaporated. 10g of the ethanol extract was digested in 1L of 1 M HCl solutions (for weight loss and gasometric technique respectively). The resultant solution was kept for 24 hours. From the stock solution obtained, solutions of different concentrations of (0.5g/l, 1.0g/l, 2.0g/l, 4.0g/l, 6.0g/l, 8.0g/l, and 10,0g/l) were prepared. The blank solution was also prepared.
Gravimetric measurements
Gravimetric-based method such as weight loss provides integrated weight loss information from corrosion that has occurred over some period of time. Weight loss measurements were investigated under total immersion using 250 mL capacity beakers containing 200 mL test solution at (303+ 1K) maintained in a thermostated water bath. The mild steel coupons were weighed and suspended in the beaker with the aid of rod and hook. The coupons were withdrawn at 24 hrs interval progressively for 168 hrs (7days), scrubbed with bristle brush using ethanol, rinsed severally in deionized water, cleaned, dried in acetone, and re-weighed. The weight losses of the coupon in grammes, was taken as the difference in the weight of the mild steel coupons (MS) before and after immersion in different test solutions. Then the tests were repeated at different temperatures. In order to get good reproducibility, experiments were carried out in triplicate. In this present investigation, the standard deviation values among parallel triplicate experiments were found to be less than 5%, depicting good reproducibility. However, experiments were conducted at 30 °C for weight loss and 30 and 60 °C for hydrogen evolution measurements.
The corrosion rate (ρ ) in 2 mgcm hr − was evaluated from the following equation [38,39]:
(1)
where W is the average weight loss of three mild steel sheets, S the total area of one mild steel specimens and t is the immersion time (168 h). With the calculated corrosion rate, the inhibition efficiency (%I) was calculated as follows [40,41] :
(2)
Where ρ1 and ρ2 are the corrosion rates of the mild steel coupons in the absence and presence of SMLE, respectively.
Gasometric technique
The volume of hydrogen evolved was determined following the procedures previously described elsewhere [42,43]. The measurements were performed at temperatures of 303 + 1K and 333+ 1K respectively. A test solution of 1M blank HCl was introduced into the reaction vessel connected to a burette through a delivery tube. A coupon was dropped into the blank solution of HCl and the reaction vessel quickly closed to prevent any escape of hydrogen gas. The volume of hydrogen gas evolved from the corrosion reaction vessel was examined by the volume changes in the level of the paraffin oil in the burette at 60s (1min) interval for 45 min (2700s). The same procedure was repeated in the presence of inhibitor (SMLE) having concentrations range of 0.5g/l, 1.0g/l, 2.0g/l, 4.0g/l, 6.0g/l, 8.0g/l, 10.0g/l with a corrodent (HCl) concentration of 1M.
The inhibition efficiency (%I) was calculated using the equation:
(3)
Where 1 VHt is the volume of hydrogen evolved at time ‘‘t’’ for inhibited solution and 0 VHt for uninhibited solution. The rate of evolution of hydrogen gas ( ) 2 1 R ml cm H min− was determined from the slope of the graph of volume of hydrogen gas evolved per surface area ( 2 mlcm− ) against immersion time (min).
Solutions
The aggressive solutions, 1 M HCl were prepared by dilution of analytical grade 36% HCl with distilled water. The concentration ranges of SMLE (0.5g/l, 1.0g/l, 2.0g/l, 4.0g/l, 6.0g/l, 8.0g/l, and 10.0g/l) were prepared for corrosion inhibition study.
Phytochemical studies
The phytochemical analysis of alkaloids, saponins, flavonoids, polyphenols, phlobatinins, antraniods, anthraquinones, cardiac glycoside and tannins was carried out by using the methods of (Gopal et al., 2015 [44]; Hampel 1976[45]; Harold 1971 [46]; Henth 1971 [47]; Herbert 1978 [48] and Harbone (1973) [49].
RESULTS AND DISCUSSION
Effect of SMLE on corrosion
The effect of extract of Stachytarpheta mutabilis leaves towards the corrosion inhibition of mild steel (MS) in aggressive 1M HCl was investigated using weight loss technique at 30 °C The results obtained are presented in Table 1. Figure 1
Table 1: Calculated values of corrosion rate, inhibition efficiency, rate constant and half-life for mild steel coupons in the presence and absence of SMLE in 1 MHCI (using the weight loss technique) at 30 o C
System/Concentration |
Corrosion rate ( mgcm-2hr-1 ) |
Inhibition efficiency (%I) |
Rate constant ´10-3 ( day-1 ) |
Half-life (days) |
Blank (1 MHCI) |
6.74 |
- |
10.60 |
65.38 |
1 MHCI +0.5g/l SMLE |
4.71 |
30.02 |
7.30 |
94.93 |
1 MHCI +1.0g/l SMLE |
4.10 |
25.84 |
7.80 |
88.85 |
1 MHCI +2.0g/l SMLE |
4.39 |
34.80 |
6.30 |
110.00 |
1 MHCI +4.0g/l SMLE |
1.46 |
78.30 |
2.00 |
346.50 |
1 MHCI +6.0g/l SMLE |
1.58 |
76.57 |
2.20 |
315.00 |
1 MHCI +8.0g/l SMLE |
1.17 |
82.69 |
1.60 |
433.13 |
1 MHCI +10.0g/l SMLE |
1.47 |
78.20 |
2.00 |
346.50 |

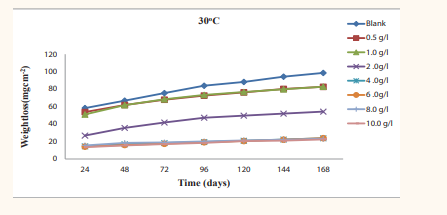

Figure 1: Variation of weight loss with time for mild steel corrosion in 1M HCI in the absence and presence of different concentrations of extract at 30 °C
shows the variation of weight loss versus time for mild steel corrosion in 1M HCl without and with different SMLE concentrations (0.5g/L, 1.0g/L, 2.0g/L, 4.0g/L, 6.0g/L, 8.0g/L, 10.0g/L) at 30 °C. Inspection of the plot revealed that the weight loss of the mild steel was reduced in the presence of the inhibitor compared to its absence; an indication of inhibitive effect of acid corrosion of mild steel (MS). Further inspection of the plot showed that the weight loss of MS in the different SMLE test solutions increased with time. The non-linearity of the plot of weight loss versus time may be due to the heterogeneous nature of the process and presence of mill scale on the MS surface involving several steps [50]. Similar report has been reported elsewhere [51].
The effect of SMLE on the corrosion rate of MS with temperature at 30 °C in the absence and presence of different concentrations of SMLE are depicted in Figure 2,

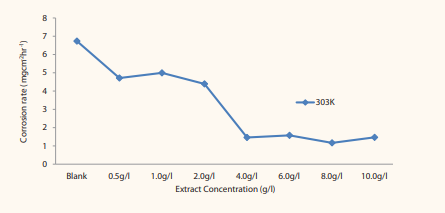

Figure 2: The relationship between corrosion rate and extract concentration in the absence and presence of SMLE at 30 °C
and the calculated values are presented in Table 1. Inspection of Table 1 and Figure 2, revealed that the corrosion rate in the presence of SMLE increases with rise in temperature. This may be due to the fact that corrosion of MS in acidic environments necessitates the evolution of hydrogen gas and a rise in temperature increases hydrogen gas evolution which invariably results in higher dissolution rate of MS. Figure 2 also revealed that the corrosion rate was reduced in the presence of the different SMLE concentrations with the lowest value obtained at 8.0g/L of SMLE solution used at 30 °C. Decrease in corrosion rate of MS in the presence of SMLE solution depicts the inhibitive and anticorrosive effect of SMLE on the corrosion of mild steel (MS) coupons. The inhibitive effect of SMLE in retarding the corrosion of mild steel in 1M HCl was obtained by comparing the corrosion of MS in the inhibited and uninhibited acid solution and is denoted in terms of the inhibition efficiency (%I). The influence of temperature on percentage inhibition efficiency was studied by conducting weight loss measurements at 30 °C containing different SMLE concentrations (Table1). Inspection of (Table1) revealed that the percentage inhibition efficiency increases with concentration but decreases with temperature. The increase in percentage inhibition efficiency (%I) with increase in extract concentration may be due to an increase in the phytochemical constituents in the crude extract adsorbed on the mild steel-solution interface blocking the active sites, in which direct acid attacks occur and effectively isolate the mild steel from corrosion attack [52 ,53]. Similarly, views have been held by other researchers elsewhere. The increase in percentage inhibition efficiency of SMLE with extract concentration may be due to the adsorption of SMLE onto the mild steel – solution surface through non-bonding election pairs present on the heteroatoms as well as π- electrons with the d- orbitals on the mild steel surface [54]. Similarly, it can be seen that the percentage inhibition efficiency decreases with increase in temperature (Table 2). Such functional display may be due to an increase in the rate of desorption of SMLE from the MS surface at higher temperature [55].
Table 2: Calculated values of corrosion rate, inhibition efficiency, activation energy and heat of adsorption for mild steel coupons in the acid media containing extracts fromStachytarpheta mutabilis (using the gasometric technique)
System/Concentration |
Corrosion rate ( mgcm-2hr -1 ) |
Inhibition efficiency (%I) |
|
( KJmol-1 ) |
||
|
30 oC |
60 oC |
30 oC |
60 oC |
|
|
Blank (1 MHCI) |
0.06 |
0.40 |
- |
- |
53.44 E (KJmol -1 ) |
Qa-ds |
1 MHCI +0.5g/l SMLE |
0.04 |
0.33 |
24.6 |
13.72 |
a57.21 |
-20.04 |
1 MHCI +1.0g/l SMLE |
0.04 |
0.27 |
31.4 |
30.22 |
53.96 |
-2.62 |
1 MHCI +2.0g/l SMLE |
0.03 |
0.21 |
53.63 |
45.12 |
58.16 |
-10.11 |
1 MHCI +4.0g/l SMLE |
0.02 |
0.15 |
65.13 |
59.49 |
57.64 |
-7.13 |
1 MHCI +6.0g/l SMLE |
0.01 |
0.14 |
76.81 |
62.32 |
67.02 |
-20.10 |
1 MHCI +8.0g/l SMLE |
0.02 |
0.11 |
70.09 |
72.37 |
51.22 |
-2.72 |
1 MHCI +10.0g/l SMLE |
0.01 |
0.09 |
74.16 |
74.10 |
53.50 |
- |
Hydrogen evolution measurements
The corrosion of mild steel coupons in 1M HCl in the presence and absence of S. mutabilis leaves extract was investigated at 30 and 60 °C using hydrogen evolution technique. The plot profiling the volume of hydrogen gas evolved in the inhibited and uninhibited acid solution against the reaction time (t, mins) of the MS coupons are depicted in Figure 3,4

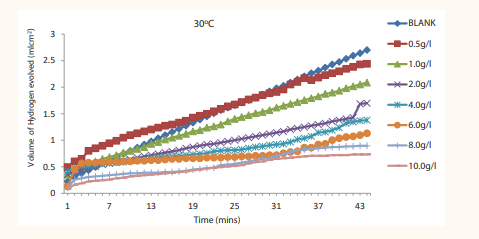

Figure 3: Variation of volume of H2 evolved with time for mild steel corrosion in 1M HCI in the absence and presence of different concentrations of extract at 30 °C

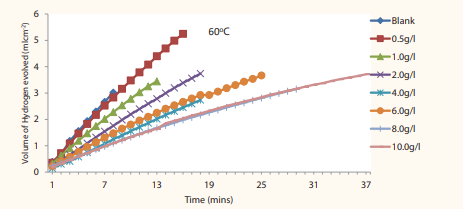

Figure 4: Variation of volume of H2 evolved with time for mild steel corrosion in 1M HCI in the absence and presence of different concentrations of extract at 60 oC
and the estimated inhibition efficiency of the systems at different temperatures are presented in Table 2 respectively. Inspection of the Figures showed that the volume of hydrogen gas evolved varies directly with the reaction time. The plot also indicates that the volume of hydrogen gas evolved increase with increase in temperature in the absence and presence of the SMLE while it decreased with increasing SMLE concentration. The values of the corrosion rates of MS coupons in the inhibited and uninhibited sample solution were assessed from the linear portion of the hydrogen evolution plot and the corresponding values for the different systems investigated are presented in Table 2. Figure 5,6

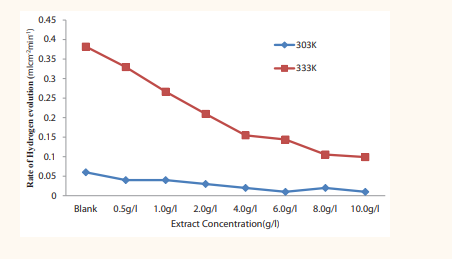

Figure 5: The relationship between corrosion rate ( 2 1 mlcm min − − ) and extract concentration in the absence and presence of different concentrations of SMLE at 30 and 60 oC

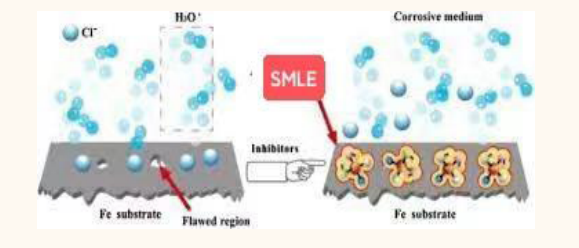

Figure 6: Schematic diagram showing the mechanistic interaction of SMLE on mild steel surface.
portrayed that the corrosion rates increase with rise in temperature and were decrease in the presence of SMLE compared to the blank solution. Inspection of Table 2 revealed that the percentage inhibition efficiency for the different test solutions increased with analogous increase in SMLE concentration but decreases with rise in temperature. This behaviour may be attributed to the high dissolution rate of MS coupon at elevated temperature and the desorption of the phytochemical constituent of the SMLE as a result of increased solution agitation resulting from elevated rates of hydrogen gas evolution which may retard the adsorption of the inhibitor on the metal surface [56]. The decrease in percentage inhibition with rise in temperature is suggestive of physical adsorption of the S. mutabilis crude extract constituents onto the MS surface. The percentage inhibition efficiency obtained from the two independent investigations (weight loss and hydrogen evolution) is in good agreement with each other (Table 3).
Table 3: Comparison of inhibition efficiency (%I) of SMLE from weight loss and hydrogen evolution method at 30oC
Concentration /System |
Inhibition efficiency(%I) |
|
Weight loss |
Hydrogen evolution |
|
1 MHCI+0.5g/l SMLE |
30.02 |
24.6 |
1 MHCI +1.0g/l SMLE |
25.84 |
31.4 |
1 MHCI+2.0g/l SMLE |
34.80 |
53.63 |
1 MHCI+4.0g/l SMLE |
78.30 |
65.13 |
1 MHCI+6.0g/l SMLE |
76.57 |
76.81 |
1 MHCI+8.0g/l SMLE |
82.69 |
70.09 |
1 MHCI+10.0g/l SMLE |
78.20 |
74.16 |
On comparing the percentage inhibition of SMLE with previously documented inhibition efficiencies of different plant extracts in acidic media, it was found that the present SMLE under this investigation could serve as an effective green corrosion inhibitor for mild steel in acidic media. The inhibition efficiency obtained from SMLE compared well with other plants extract reported in the literature (Tables 4-8).
Table 4: R2 Values for the various adsorption isotherms considered
|
Langmuir |
Tempkin |
Freundlich |
Flory- Huggins |
El- Awady |
Frumkim |
Temp (K) |
R2 |
|
|
|
|
|
303 |
0.991 |
0.947 |
0.931 |
0.988 |
0.947 |
0.920 |
333 |
0.992 |
0.993 |
0.923 |
0.952 |
0.980 |
0.944 |
Table 5: The values of dimensionless separation factor, KL at various concentrationsof SMLE at 30 OC and 60 OC
System/Concentration |
KL |
|
|
30 oC |
60 oC |
1 MHCI +0.5g/l SMLE |
0.746 |
0.835 |
1 MHCI +1.0g/l SMLE |
0.595 |
0.717 |
1 MHCI +2.0g/l SMLE |
0.424 |
0.559 |
1 MHCI +4.0g/l SMLE |
0.269 |
0.388 |
1 MHCI +6.0g/l SMLE |
0.197 |
0.297 |
1 MHCI +8.0g/l SMLE |
0.155 |
0.240 |
1 MHCI +10.0g/l SMLE |
0.128 |
0.202 |
Mean value |
0.357 |
0.464 |
Table 6: The thermodynamic parameters for SMLE in 1 MHCI on mild steelcorrosion at 30 and 60 OC.
T OC |
Slope |
(Kads M-1) |
DGads ((KJmol ) -1 |
DHads (KJmol ) -1 |
DSads (Jmol K ) -1 -1 |
30 |
1.47 |
0.68 |
-9.15 |
-15.18 |
-19.0 |
60 |
2.53 |
0.39 |
-8.55 |
|
|
Table 7: Qualitative analysis of phytochemical compounds of Stachytarpheta mutabilis
S.No |
Phytochemical components |
Aqueous extract |
1. |
Alkaloids |
+ |
2. |
Saponins |
- |
3. |
Flavonoides |
+ |
4. |
Polyphenols |
++ |
5. |
Phlobatinins |
- |
6. |
Antranoids |
+ |
7. |
Anthraquinones |
- |
8. |
Cardiac glycoside |
+ |
9. |
Tannins |
- |
10. |
Reducing sugar |
+ |
Note: +ve=present, -ve = absent, ++ve = present in large amount
Table 8: Comparison of Inhibition efficiency of SMLE with other natural inhibitors on MS
Natural products |
Percentage Inhibition |
References |
Pectin from citrus peels |
94.20% |
Fiori-Bimbi et al. (2015) |
Punica granatum peel extract |
92.40% |
Behpour et al. (2012) |
Murraya Koenigii extract |
84.60% |
Sharmila et al. (2010) |
Justicia gendarussa extract |
93.00% |
Satapathy et al. (2009) Ituen et al. (2017) |
Griffonia simplicifolia extract |
91.73% |
|
Water Melon rind extract |
83.35% |
Odewunmi et al. (2015) |
Longan seed and peel extracts |
92.93% |
Liao et al. (2017) |
Sodium Nitrite SMLE |
61.8% 82.69% |
Rizvi et al. (2021) |
Effect of temperature and inhibition mechanism Temperature affects the rate of coatings of metallic surfaces in electrochemical corrosion. In case of corrosion of MS coupons in a neutral solution (oxygen depolarization), increase in temperature has a positive effect on the overpotential of oxygen depolarization and the rate of oxygen permeation but retards oxygen solubility. On the other hand, in corrosion of MS coupons in acidic medium (hydrogen depolarization), the corrosion rates increase exponentially with temperature rise due to decrease in hydrogen evolution overpotential [57]. Thus, in investigating the effect of temperature on the corrosion of MS coupons in 1M HCl in the presence and absence of inhibitor, the apparent activation energies ( a ε ) were estimated from the condensed Arrhenius equation [58].
(4)
Where ρ2 and ρ1 are the corrosion rates at absolute temperatureT2 and T1 respectively, and R is the molar gas constant (8.314 1 1 JK mol − − ). An estimate of the heat of adsorption (Qads ) was obtained from the trend of surface coverage with temperature. The calculate values for both variables in the presence and absence of inhibitor in 1M HCl are presented in Table 2.
Analysis of the temperature dependence of inhibition efficiency and comparison of corrosion activation energies profile in inhibited and uninhibited acid solution gives an insight into the inhibitor mechanism of adsorption. It has been reported elsewhere [58] that a decrease in inhibition efficiency with rise in temperature with corresponding increase in apparent activation energy in the presence of an inhibitor compared to its absence is suggestive of physical adsorption while the reverse process;increase in percentage inhibition with analogous increase in temperature with a decrease in a ε in the presence and absence of inhibitor in 1M HCl corresponds to a chemisorption mechanism. The trend for SMLE suggests that physisorption process governs the inhibition process. Thus, it can be inferred that the increase in apparent activation energies was due to the corrosion reaction mechanism in which charge transfer was blocked (geometric blocking effect) by the adsorption of phytochemical constituents of SMLE on the MS surface;[59,60]. It also implies that the sorption process was controlled by the surface reaction, since the activation energies of the corrosion process in the inhibited and uninhibited solution was higher than 20 1 KJmol − [61]. The a ε as shown in Table 2, is greater for the inhibited process than for an uninhibited process due to the increased energy barrier. These observations also suggest the formation of a complex compound between the SMLE and MS- solution surface [62]. The negative Qads values imply that the degree of surface coverage decreased with rise in temperature, supporting the earlier proposed physisorption mechanism [63].
Due to the complex chemical composition of the crude extract of SMLE, it is difficult to identify the active constituent that is responsible for the inhibiting effect of SMLE in 1M HCl. In aqueous acidic solutions, SMLE exists either as neutral molecules or in the form of cations (protonated SMLE) depending on the nature of chemical interactions occurring to the inhibitor. In acidic solution, adsorption of Cl − ions onto the MS surface renders its surface negatively charged and susceptible to physical adsorption of cationic moieties of the crude extract. The SMLE molecules can be adsorbed also on the metal surface through donor- acceptor reaction between the π - electrons of the crude extract of the phytochemical constituents and the vacant d- orbitals of iron. The combined adsorption of anion with cation gives a positive synergistic effect which is responsible for the observed increase in %I with analogous rise in extract concentration. Thus, the metal complexes of 2+ Fe and SMLE or protonated SMLE can be explained further as follows:
SMLE+xH SMLExH [ ] x+
SMLE+Fe SMLE-Fe +
From the observed mechanism, it can be inferred, that the insoluble Fe-Inhibitor complex could act as catalyst by promoting or inhibiting metal dissolution depending on its solubility. Consequent upon this, the Fe-Inhibitor complex might be adsorbed on the MS surface via Vander Waals force to form a protective film that prevents the corrosion of MS surface. Similar observation has been documented elsewhere [64,65].
Adsorption isotherm and thermodynamics
In general, the adsorption isotherm gives an insight on the adsorption of inhibitor on metal surface. Figure 8,7

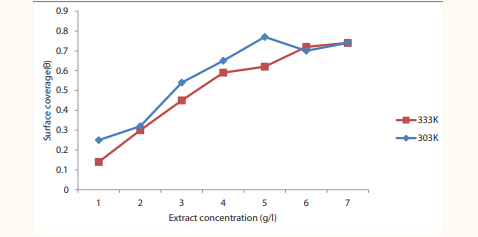

Figure 7: Adsorption curve for Stachytarpheta mutabilis extract on mild steel in 1M HCI from

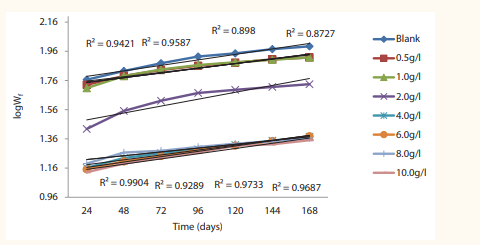

Figure 8: Plot of log Wf against time for mild steel coupons in 1M HCI with and without SMLE
profiles the variation of the degree of surface coverage with concentration of SMLE obtained from hydrogen evolution measurements technique for the corrosion medium-SMLE systems at 30 and 60 o C . Assuming a direct relationship between the inhibitor efficiency and surface coverage ( ) θ , the plot in Figure 7, describes an S- shaped curve [66]. This suggests that SMLE acts as an inhibitor by formation of a thin coat which acts as a protective barrier film that blocks the corrosive agents from accessing the MS surface –solution interface. The degree of surface coverage was estimated from the expression [67].
Sorption isotherm models were utilized for fitting data in order to estimate the relationship between the amount in the aqueous concentration at equilibrium and the amount sorbed by SMLE onto the MS surface. Adsorption isotherm equations were used to characterize the corrosion inhibition mechanism.
Customarily, adsorption isotherms are expressed in the form of Eq. (7) [68].
where f x (θ, ); denotes the configurational factor which depends on the physical mode and the assumptions underlying the derivation of the isotherm, θ is the degree of surface coverage, C the inhibitor concentration, x is the size factor ratio, α is the molecular interaction parameter and Kads is the adsorption–desorption equilibrium constant of the sorption process. The adsorption isotherm model that best describes the adsorption of S. mutabilis leave extract on mild steel in 1M HCl medium was obtained by fitting the concentration of the extract and the degree of surface coverage of the inhibitor, θ into the various adsorption isotherms models (Langmuir, Tempkin, Freundlich, Frumkim, El Awady, and Flory-Huggins adsorption isotherm) to examine the equilibrium between SMLE concentration in 1M HCl and the amount sorbed on the MS surface. In the current study, correlation coefficient ( 2 R ) was used to determine the best fit isotherm.
Freundlich adsorption isotherm [69,70]
Tempkin adsorption isotherm model [71-73]
Frumkim adsorption isotherm model [69]
El -Awady thermodynamic /kinetic adsorption isotherm model [74]
Flory-Huggins adsorption isotherm model [70]
Langmuir adsorption Isotherm model [75]
Table 4. (Supporting document) profiles the various adsorption isotherm models considered in this study. The R2 values for each isotherm model presented in Table 4 were used to determine the most suitable model. The experimental data fitted into all the isotherms under this investigation but the Langmuir isotherm model gave the best fit. Langmuir isotherm with R2 values of 0.992 which is close to unity compared with others tested adsorption isotherms in this study, best describes the adsorption mechanism of S. mutabilis extract on mild steel in 1M HCI. Therefore, Langmuir adsorption isotherm is most appropriate for evaluating the equilibrium adsorptiondesorption constant, Kads at the studied temperature. Moreover, the dimensionless separation factor, KL which describe the type of isotherm is related to the equilibrium adsorption- desorption constant, Kads by the following equation [76].
If KL is >1 unfavourable, KL = 1 linear, 01 irreversible. Table 5 gives the calculated values of KL for SMLE at different concentration at 30 and 60 o C . Inspection of Table 5 revealed that all KL values are less than unity confirming that the adsorption process is favourable. However, further inspection of the Table shows that the mean value of KL at 30 o C is lower than KL at 60 o C indicating that the inhibitory action of SMLE is more favourable at lower temperature. Table 6 indicates that the adsorption equilibrium constant Kads values decrease with analogous increase in temperature. Large values of Kads implies better inhibition efficiency of the inhibitor and the adsorbing inhibitor molecules. On the other hand, small values of Kads revealed that such interactions between adsorbing inhibitor molecules and the metal surface are weaker, confirming that the inhibitor molecules are easily ejectable by the solvent molecules from the metal interface [77]. These results confirm that SMLE is physically adsorbed on the metal surface and that the strength of the adsorption decreases with temperature.
The free energy of adsorption o ?Gads of the inhibitors on MS surface can be estimated using the following relation [78]
Gads = -RTIn ( Kads ´ 55.5)
Where o ?Gads is the standard free energy of adsorption, Kads is the equilibrium constant of adsorption, the value of 55.5 is the concentration of water in solution ( 1 molL− ), R is the molar gas constant ( 1 1 KJmol K− − ) and T is the temperature (K). The calculated o ?Gads and Kads results are also summarised in Table 6. The negative values of o ?Gads indicate the spontaneous adsorption of these molecules from HCI solution to the metal surface. Values of o ?Gads around -20 1 KJmol − or lower are compatible with electrostatic interaction between charged organic molecules and the charged metal surface (physisorption); those around -40 1 KJmol − or higher are in accordant with charge sharing or transfer from the organic molecules to the metal surface to form a co-ordinate type of bond (chemisorptions) [50]. In this present study, the values of o ?Gads for SMLE being less than -40 1 1 KJmol K− − indicate physical adsorption. Thus, the inhibition efficiency decreased with the increase in temperature as a result of desorption of SMLE from the MS surface.
The thermodynamic parameters: enthalpy of adsorption o ?Hads and entropy of adsorption o ads ?S can be estimated from integrated version of the Van’t Hoff equation expressed by (Ramesh and Adhikari, 2008).
The above equation shows that the plot of ads InK versus 1 T which gives straight lines with slope of ( o Hads R −? ) and intercepts of ( 1 55.5 o ads S In R ? + ). Estimated value of o ?Hads and
?S using the Van’t Hoff equation are -15.18 1 KJmol − and -19.94 1 1 Jmol K− − , respectively. The enthalpy and entropy for the adsorption of SMLE on mild steel were also deduced from the thermodynamic basic equation [79].
Where o ?Hads and o ads ?S are the enthalpy and entropy changes of adsorption process, respectively. A plot of o ?Gads versus T was linear with the slope equal to ( o ads −?S ) and intercept of ( o ?Hads ). The enthalpy of adsorption, o ?Hads and the entropy of adsorption o ads ?S obtained are -15.18 1 KJmol − and -19.0 1 1 Jmol K− − respectively. The negative sign of o ?Hads showed that the adsorption of SMLE molecules is an exothermic process. For an exothermic process, physisorption is differentiated from chemisorption by considering the absolute value of o ?Hads . For physisorption process, the enthalpy of adsorption is less than 40 1 KJmol − while that for chemisorption approaches 100 1 KJmol − [80]. In the present investigation, o ?Hads is lower than 40 1 KJmol − clearly indicating that physical adsorption is involved. Values of o ?Hads and o ads ?S obtained by the two methods are in accord with each other. The entropy of adsorption obtained from Eqs. (17) and (18) are negative because inhibitor molecule freely moving in the bulk solution (inhibitor molecule were disordered), were adsorbed in an orderly fashion onto the mild steel, thereby retarding the entropy [81].
Kinetics of mild steel corrosion in 1M HCl with and without SMLE
The study of kinetics modeling-based studies gives an insight into the reaction and mechanism of the MS- solution interaction and helps to explain several process variables for monitoring and evaluating system performance and optimization. The kinetics of MS corrosion in inhibited and uninhibited 1M HCl solution containing different SMLE concentration was studied at 30 o C by fitting the corrosion data into different rate laws. Correlation coefficients R2 were used to determine the most suitable law for the corrosion process. The rate laws examined [82].
Zero-order:
First-order:
Second-order:
Where Wo the initial weight of mild steel, Wt is the weight loss of mild steel at time t and K is the rate constant. On fitting of the experimental data to the different rate laws, the first –order kinetics gave the best R2 value. The plot of Wf (g) against time (t) is portrayed in Figure 8 and calculated values obtained are summarized in Table 1. Observation from the plot showed that the rate constant decreased with increase in SMLE concentration. The one-dimensionality of the plot in the inhibited and uninhibited acid solution suggests that its presence does not alter the corrosion process. Similar observations for other inhibitors have been made documented by others researcher [83].
Where Wo the initial weight of mild steel, Wt is the weight loss of mild steel at time t and K is the rate constant. On fitting of the experimental data to the different rate laws, the first –order kinetics gave the best R2 value. The plot of Wf (g) against time (t) is portrayed in Figure 8 and calculated values obtained are summarized in Table 1. Observation from the plot showed that the rate constant decreased with increase in SMLE concentration. The one-dimensionality of the plot in the inhibited and uninhibited acid solution suggests that its presence does not alter the corrosion process. Similar observations for other inhibitors have been made documented by others researcher [83].
The half-life ( 1 2 t ) value was estimated using the equation [84]
Where K is the rate constant, the values of the rate constant and half-life periods obtained are summarized in Table 1 and were observed to increase with increase in concentration of SMLE the results further affirmed that the corrosion rate is higher in the uninhibited solution than in the inhibited MS sample solution. These suggest that the presence of SMLE decreases the dissolution rate of MS corrosion. The results corroborated findings by [85].
Phytochemical studies
The results obtained from the crude extract of SMLE are displayed in Table 7. The results revealed that SMLE contains considerable amount of phytochemicals which are good corrosion inhibitors that have been well documented in literature to exhibit good inhibitive properties [86, 87] making it possible to attribute the inhibiting action of Stachytarpheta mutabilis to the much presence of polyphenol [88].These compounds have been reported by several investigators to possess high anticorrosion activity as a result of the lone pairs of electron on their heteroatom [89].
CONCLUSION
The capacity of SMLE as a green corrosion inhibitor has been assessed in this research by using the weight loss and hydrogen evolution technique. SMLE acts as an inhibitor for the corrosion of mild steel in 1 M HCl. Inhibition efficiency values increase with the inhibitor concentration but decrease with rise in temperature suggesting physical adsorption mechanism. The adsorption of extract film was found to obey Langmuir isotherm and firstorder kinetics. The values of the activation energy, enthalpy, Gibbs free energy and parameters estimated from the isotherm models suggested that the adsorption mechanism of SMLE on the MS is spontaneous, exothermic and accompanied with a decrease in entropy of the system from thermodynamic point of view. The results obtained from weight loss and hydrogen evolution measurements are in good agreement. However, further investigation to assess the corrosion morphology and to isolate and validate the active phytochemical constituent in the extract of SMLE that is responsible for the inhibition of mild steel in acidic media is required.
ACKNOWLEDGMENT
The authors are thankful to the anonymous reviewers for the contributions and suggestions to further improve the scientific benefit of the manuscript.
REFERENCES
- Cron C J, Marsh GA. Overview of economics and engineering aspect of corrosion in oil and gas production. J Petrol Thechnol. 1983; 35: 1033-1041.
- Nahle I, Abu-abdounI, Abdel-Rahman M, Al Khayat. UAE Neem Extract as a Corrosion Inhibitor for Carbon Steel in HCl Solution. Int J Corros. 2010.
- Jones L W. Corrosion and water Technology for Petroleum Producers. Tulsa, OK: Oil and Gas Consultants International, Inc. (OGCI Publications). 1998; 202.
- NACE. Preparation and installation of Corrosion Coupons and Interpretation of Test Data in Oil Production Practice. NACE Recommended Practice Houston TX: National Association of Corrosion Engineers. 1975: 7-75.
- Obot IB, Obi-Egbedi NO. Adsorption properties and inhibition of mild steel corrosion in sulphuric acid solution by ketoconazole: Experimental and theoretical investigation. Corros Sci. 2010; 52: 198-204.
- Obi-Egbedi NO, Obot IB. Inhibitive properties, thermodynamic and quantum chemical studies of alloxazine on mild steel corrosion in H2SO4. Corrosion Science. 2010; 53: 263-275.
- Li X, Deng S, Fu H, Mu G. Inhibition effect of 6-benzylaminopurine on the corrosion of cold rolled steel in H2SO4 solution. Corros Sci. 2009; 51: 620-634.
- Li W, Zhao X, Liu F, Hou B. Investigation on inhibition behavior of S-triazole–triazole derivatives in acidic solution. Corros Sci. 2008; 50: 3261-3266.
- Lece HD, Emregul KC, Atakol O. Difference in the inhibitive effect of some Schiff base compounds containing oxygen, nitrogen and sulfur donors. Corros Sci. 2008; 50: 1460-1468.
- Veloz MA, Martinz IG. Effect of Some Pyridine Derivatives on the Corrosion Behavior of Carbon Steel in an Environment Like NACE TM0177.Corrosion. 2006; 62: 283
- Ouchrif A, Zegmout M, Hammouti B, El-kadiri S, Ramdani A. 1,3Bis(3-hyroxymethyl-5-methyl-1-pyrazole) propane as corrosion inhibitor for steel in 0.5 M H 2SO 4 solution. Appl Surf Sci. 2005; 252: 339-12.
- Chetouani A, Hammouti B, Benhadda T, Daoudi M. Inhibitive action of bipyrazolic type organic compounds towards corrosion of pure iron in acidic media. Appl Surf Sci. 2005; 249: 375-385.
- Abd El-Maksoud. The influence of some Arylazobenzoyl acetonitrile derivatives on the behaviour of carbon steel in acidic media. Appl Surf Sci. 2003; 206: 129-136.
- Wang L. Evaluation of 2-mercaptobenzimidazole as corrosion inhibitor for mild steel in phosphoric acid. Corros Sci. 2001; 43: 2281.
- Popova E, Sokolova S, Raicheva M, Christov. AC and DC study of the temperature effect on mild steel corrosion in acid media in the presence of benzimidazole derivatives. Corrosion Science. 2003; 45: 33-58
- Ebenso EE, Ekpe UJ. Kinetic study of corrosion and corrosion inhibition of mild steel in sulphuric acid using Carica papaya leave extract. West Afr J Biol Appl Chem. 1996; 41: 21–27.
- Kliskic M, Radosevic J, Gudic S, Katalinic V. Aqueous extract of osmarinus officianliis L. As inhibitor of Al-Mg alloy corrosion in chloride solution. J Appl Electrochem. 2000; 30: 823-830.
- Abdel-Graber AM, Abd-El-Nabey BA, Sidahmed IM, El-Zayady AM, Saadawy M. Effect of temperature on inhibitive action of Damsissa extract on the corrosion of steel in acidic media. Corros Sci. 2006; 62: 239-299.
- Ashish KS, Ahmad, Prasad R, Quraishi MA. Thermodynamic, electrochemical and quantum chemical investigation of some Schiff bases as corrosion inhibitors for mild steel in hydrochloric acid solutions Corros Sci. 2010; 52 : 933-942. MA. Effect of cefazolin on the corrosion of mild steel in HCl solution. Corrosion Sci.2016; 52: 152–160.
- Da Rocha JC, Da Cunha P, Gomes JA, Elia ED. Corrosion inhibition of carbon steel in hydrochloric acid solution by fruit peels aqueous extract. Corros Sci. 2010; 52: 2341-2348.
- Hussain HM, Kassim JM. The corrosion inhibition and adsorption behaviour of Uncaria gambir extract on mild steel in 1M HCl. Int J Mater Chem Phys. 2011; 125: 461-468.
- Ogwo KD, Osuwa J., Udoinyang IE, Nnanna LA. Corrosion inhibition of mild steel and aluminium in 1 M hydrochloric acid by leaves extracts of Ficus sycomorus. Phys Sci Int J. 2017; 14: 1-10.
- Umoren SA, Obot IB, Ebenso EE, Okafor PC, Ogbobe O, Oguzie EE. Gum arabic as a potential corrosion inhibitor for aluminium in alkaline medium and its adsorption characteristics. Anti-Corros Mater Meth. 2006; 53: 277-282.
- Umoren SA, Obot IB, Ebenso EE, Obi-Egbedi NO. The Inhibition of aluminium corrosion in hydrochloric acid solution by exudate gum from Raphia hookeri.Desalination. 2009; 247: 561-572.
- Obot IB, Obi-Egbedi NO. Ginseng Root: A new Efficient and Effective Eco-Friendly Corrosion Inhibitor for Aluminium Alloy of type AA 1060 in Hydrochloric Acid Solution Int J Electrochem Sci. 2009; 4: 1277-1288.
- Umoren SA, Ogbobe O, Igwe IO. Ebenso EE. Inhibition of Mild Steel Corrosion in Acidic Medium Using Synthetic and Naturally Occurring Polymers and Synergistic Halide Additives. Corros Sci. 2008; 50: 1998-2006
- Umoren SA, Obot IB, Akpabio LE, Etuk SE. Adsorption and corrosive inhibitive properties of Vigna unguiculata in alkaline and acidic media. Pigment Resin Technol 2008; 37: 98-105.
- Obot IB, Obi-Egbedi NO. Port Electrochem Acta . 2009; 27:517.
- Umoren SA, Obot IB, Ebenso EE. Blends of polyvinyl pyrrolidone and polyacrylamide as corrosion inhibitors for aluminium in acidic medium. E J Chem. 2008; 15: 355-363.
- Chauhan LR, Gunasekaran G Corrosion inhibition of mild steel by plant extract in dilute HCl medium. Corros Sci. 2007; 49: 1143-1161.
- Stone GN, Amos JN, Stone TF, Knight RL, Gay H, and Parrott F. Thermal effects on activity patterns and behavioural switching in a concourse of foragers on Stachytapheta mutabilis (Verbenaceae) in Papua New Guinea. Oecologia. 1988; 77: 56-63.
- Calixto JB, Adair RS, Valdir CE and Rosendo A Y.A review of the plants of the Genus phyllathus, their chemistry pharmacology and therapeutic potential. Med Res Rev. 1998; 18: 224-258.
- Munir AA.A taxonomic revision of the genus stachytarpheta vahl (Verbanaceae) in Australia. J Adelaide Bot Gard. 1992; 14: 151 -156.
- Fonseca NG. Lepidópteros visitantes florais de Stachytarpheta cayennensis (Rich.) Vahl (Verbenaceae) em remanescente de Mata Atlântica, Minas Gerais, Brasil. Revista Brasileira de Entomologia. 2006; 50: 399 - 405.
- Pettit KC. Phytochemistry. New York: W. H. Freeman and Company. 1982.
- Punita Mourya, Sitashree Banerjee, Singh M M. Corrosion inhibition of mild steel in acidic solution by Tagetes eract a (marigold flower) extract as a green inhibitor. Corrosion Science. 2014 ; 85: 352-363.
- Ramachandran S, Tsai BL, Blanco M, Chen H, Tang Y. Self-Assembled Monolayer Mechanism for Corrosion Inhibition of Iron by Imidazolines. Langmuir ACS publications.1996.
- Revie R W. (Eds), Uhlig H H. An introduction to corrosion science and engineering. New York John Willey and Sons. 1985.
- Umoren SA, Solomon MM, Udousoro II, Udoh AP. Synergistic and antagonistic effects between halide ions and carboxymethyl cellulose for the corrosion inhibition of mild steel in sulphuric acid solution. Cellulose. 2010; 17: 635-648.
- Solomon MM, Umoren SA, Udosoro II, Udoh AP. Inhibitive and adsorption behaviour of carboxymethyl cellulose on mild steelcorrosion in sulphuric acid solutio Corros Sci. 2010; 52: 1317-1325.
- Umoren SA, Obot IB, Obi-Egbedi NO. Raphia hookeri gum as a potential eco-friendly inhibitor for mild steel in sulfuric acid. Mater Sci. 2009; 44: 274-279.
- Umoren SA, Obot IB, Ebenso EE, Obi-Egbedi NO. The Inhibition of aluminium corrosion in hydrochloric acid solution by exudate gum from Raphia hookeri.Desalination. 2009; 247: 561-572.
- Oguzie EE. Corrosion inhibition of aluminium in acidic and alkaline media by Sansevieria trifasciata extract. Corros Sci. 2007; 49: 1527-1539.
- Onuchukwu AI. Mater Chem Phys. 1988; 20: 323.
- Gopal J. Shadma Anjum, Rajiv Prakash. Musa Paradisica peel extract as green corrosion inhibitor for mild steel in HCl solution. Corrosion Science. 2015; 90: 107-117.
- Hampel AC. Glossary of Chemical Terms. New York: Litton Educational Publishers. 1976.
- Harold EM. The making shaping and treating of steel. Washington: Benue and Pan American International Publishers. 1971.
- Henth M.Corrosion and Process Plant. New York: McGraw Hill Publishers. 1971
- Herbert H V. The Corrosion Handbook. New York: The Electrochemical Society Incorporated. 1978.
- Harbone J B. Phytochemical methods: A guide to modern techniques of plant analysis. Chapman and Hill. 1973.
- Obi-Egbedi NO, Obot IB. Inhibitive properties, thermodynamic and quantum chemical studies of alloxazine on mild steel corrosion in H2SO4. Corrosion Science. 2010; 53: 263-275.
- Solomon MM, Umoren SA, Udosoro II, Udoh AP. Inhibitive and adsorption behaviour of carboxymethyl cellulose on mild steelcorrosion in sulphuric acid solutio Corros Sci. 2010; 52: 1317-1325.
- Raja PB, Sethuraman MG. Strychnos nux-vomica an eco-friendly corrosion inhibitor for mild steel in 1 M sulfuric acid medium. Mater Corros. 2009; 60: 22-28.
- Behpour M, Ghoreishi SM, Kashani MK, Soltani N. Inhibition of 304 stainless steel corrosion in acidic solution by Ferula gumosa (galbanum) extract. Material Corrosion. 2009; 60: 895-898.
- Ahmad, Prasad R, Quraishi MA. Thermodynamic, electrochemical and quantum chemical investigation of some Schiff bases as corrosion inhibitors for mild steel in hydrochloric acid solutions Corros Sci. 2010; 52 : 933-942.
- Li X., Deng SD, Fu H, Li T. Adsorption and inhibition effect of 6-benzylaminopurine on cold rolled steel in 1.0 M HCl. Electrochimca Acta. 2009; 54: 4089-4098.
- Oguzie EE. Corrosion inhibition of aluminium in acidic and alkaline media by Sansevieria trifasciata extract. Corros Sci. 2007; 49: 1527-1539.
- Popova A, Christov M, Deligeorigiev T. Influence of the Molecular Structure on the Inhibitor Properties of Benzimidazole Derivatives on Mild Steel Corrosion in 1 M Hydrochloric Acid. Corrosion. 2003; 59: 756-764.
- Umoren SA, Obot IB, Ebenso EE, Okafor PC, Ogbobe O, Oguzie EE. Gum arabic as a potential corrosion inhibitor for aluminium in alkaline medium and its adsorption characteristics. Anti-Corros Mater Meth. 2006; 53: 277-282.
- Sibel Z, Dogan P, Yazici B. Inhibition of acidic corrosion of iron and aluminium by SDBS at different temperatures.Corros Rev. 2005; 23: 217-232.
- Umoren SA, Ekanem UF. INHIBITION OF MILD STEEL CORROSION IN H2SO4 USING EXUDATE GUM FROM PACHYLOBUS EDULIS AND SYNERGISTIC POTASSIUM HALIDE ADDITIVESChem. Eng Commun. 2010; 197: 1339-1356.
- Fouda AS, Al-Sarawy AA, El-Katori EE. Pyrazolone derivatives as corrosion inhibitors for C-steel in hydrochloric acid solution. Desalination. 2006; 201: 1-13.
- Erna M, Herdini H, Futra D. Corrosion inhibition mechanism of mild steel by amylose-acetate/carboxymethyl chitosan composites in acidic media. International Journal of Chemical Engineering. 2019.
- Umoren SA, Obot IB, Ebenso EE, Okafor PC. Eco-Friendly Inhibitors from Naturally Occurring Exudategums for Aluminium Corrosion Inhibition in Acidic Medium. Port Electrochem Acta. 2008; 26: 267-282.
- Li X, Deng SD, Fu H, Li T. Adsorption and inhibition effect of 6-benzylaminopurine on cold rolled steel in 1.0 M HCl. Electrochimca Acta. 2009; 54: 4089-4098.
- 69. Muthukrishnan P, Jeyaprabha B, Prakash P. Adsorption and corrosion inhibiting behavior of Lannea coromandelica leaf extract on mild steel corrosion .Arabian Journal of Chemistry. 2017; 10: S2343-S2354.
- Olusola JO, Oluseyi AK, Kehinde OO, Olayinka AO, Oluwatosin JM Port. Electrochim Acta. 2009; 27: 591–598.
- Solomon MM, Umoren SA, Udosoro II, Udoh AP. Inhibitive and adsorption behaviour of carboxymethyl cellulose on mild steelcorrosion in sulphuric acid solutio Corros Sci. 2010; 52: 1317-1325.
- Sahin M, Bilgic S, Yilmaz H. The inhibition effects of some cyclic nitrogen compounds on the corrosion of the steel in NaCl mediums. Appl Surf Sci. 2002; 195: 1-7.
- Alaneme KK,Olusegun SJ. Corrosion inhibition performance of lignin extract of sunflower (Tithonia Diversifolia) on medium carbon low alloy steel immersed in HCl solution. Leonardo J Sci. 2012; 20: 59-70.
- Ebenso EE, Alamu H, Umoren SA, Obot IB. Inhibition of mild steel corrosion in sulphuric acid using alizarin yellow dye and synergistic iodide additive, Int J Electrochem. Sci. 2008; 3: 1325–1339.
- Nwabanne JT, Okafor VN. Adsorption and thermodynamics study of the inhibition of corrosion of mild steel in H2SO4 medium using Vernonia amygdalina, J. Minerals Mater. Characteri. Eng.2012; 11: 885–890.
- Alinnor IJ,Ejikeme PM. Corrosion inhibition of aluminum in acidic medium by different extracts of Ocimum gratissimum, Am Chem Sci J. 2012; 2: 122-135.
- Alaneme KK,Olusegun SJ. Corrosion inhibition performance of lignin extract of sunflower (Tithonia Diversifolia) on medium carbon low alloy steel immersed in HCl solution. Leonardo J Sci. 2012; 20: 59-70.
- Chauhan LR, Gunasekaran G. Corrosion inhibition of mild steel by plant extract in dilute HCl medium, Corrosion Sci. 2007; 49: 1143-1161.
- Dagdag O, Safi Z, Hsissou R, Erramli H, El Bouchti M, Wazzan N, et al. Epoxy pre-polymers as new and effective materials for corrosion inhibition of carbon steel in acidic medium: computational and experimental studies Sci Rep. 2019; 9: 1-14.
- Noor EA. Potential of aqueous extract of Hibiscus sabdariffa leaves for inhibiting the corrosion of aluminum in alkaline solutions. Appl J Electrochem. 2009; 39 : 1465-1475.
- Amin MA, Abd El Rehim SS, El-Naggar MM, Abdel-Fatah HTM. Assessment of EFM as a new nondestructive technique for monitoring the corrosion inhibition of low chromium alloy steel in 0.5 M HCl by tyrosine. J Mater Sci. 2009; 44: 6258-6272.
- Badiea AM, Mohana KN. Effect of temperature and fluid velocity on corrosion mechanism of low carbon steel in presence of 2-hydrazino-4,7-dimethylbenzothiazole in industrial water medium. Corrosion Sci. 2009; 51: 2231–2241.
- Ouali El, Hammouti B, Aouniti A, Ramli Y, Azougagh M, Essassi EM, et al. Thermodynamic characterisation of steel corrosion in HCl in the presence of 2phenylthieno (3, 2-b) quinoxaline. J. Mater. Environ. Sci. 2010; 1: 1-8.
- Mu G, Li X, Liu G. Synergistic inhibition between tween 60 and NaCl on the corrosion of cold rolled steel in 0.5 M sulfuric acid. Corros Sci. 2005; 47: 1932-1952.
- Ebbing DD, Gammon SD, General Chemistry, Houghton Mifflin Company, Boston. 2005.
- Abiola OK. Adsorption of 3-(4-amino-2-methyl-5-pyrimidyl methyl)-4-methyl thiazolium chloride on mild steel. Corros Sci. 2006; 48: 3078-3090.
- Atkins P, de Paula J, A Textbook of Physical Chemistry, seventh ed. University Press Oxford. 2002: 873.
- Okafor PC, Ikpi ME, Uwah IE, Ebenso EE, Ekpe UJ, Umoren SA Inhibitory action of Phyllanthus amarus extracts on the corrosion of mild steel in acidic media. Corros Sci. 2008; 50: 2310-2317.
- Okafor P C, Ekpe U J, Ebenso E E, Umorem E M, Leizous K E. Inhibition of mild steel corrosion in acidic medium by Allium stativum extracts. Bulletin of Electrochemistry. 2005; 21: 347-354.
- Satapathy A K, Gunasekaran G, and Rodriques P V. Corrosion inhibition of Justicia gendarussa plant extract in Hydrochloric acid solution. Corrosion Science. 2009; 51: 2848-2856.
- Faustin M, Maliuk A, Lebrini M. Corrosion inhibition of C38 steel by alkaloids extract of geissospermum leaves in IM HCl. Electrochemical and phytochemical studies. Corrosion Science. 2015; 92: 289 -300.
- Uwah IE, Ugi BU, Okafor PC, Ikeuba AI. Comparative study of corrosion inhibition and adsorption characteristics of ethanol extracts of Andrographispaniculata (King Bitters) and Vernoniaamygdalina (Bitter Leaf) on mild steel on HCl solutions: International Journal of Applied Chemistry. 2013; 9: 73- 88.
