Sugar maple is an important component of northeastern North American forests that has been declining for several decades. Sugar maple decline may alter stand structure and long-term stability of its habitat. The decline may be related partly to the effects of acid deposition on soil nitrogen (N) and base cations such as calcium (Ca) and magnesium (Mg). Calorespirometric measurements of rates of plant metabolic activity have been suggested as a rapid measure of plant response to environmental conditions. Instantaneous rates of metabolic heat production (Rq), CO2 production (RCO2), and metabolic efficiency (Rq/ RCO2) were measured on leaf tissue of Acer saccharum Marshall (sugar maple) seedlings and mature trees, during two summers, in 12 forest plots in the Catskill Mountains, NY, in response to a 2-way factorial combinations of N and Ca+ Mg addition to forest soil. Contrary to our expectation, no beneficial effect of Ca+ Mg addition was detected in terms of increased metabolic rate of sugar maple seedlings or mature trees. N addition decreased the metabolic rates in mature trees, suggesting that N addition can decrease the long-term growth potential of mature sugar maple trees in our study site, which is reported to be N saturated due to continuous atmospheric N addition.

• Sugar maple
• Calorespirometry
• Liming
• Acidification reversal
• Nitrogen saturation

Momen B, Behling SJ, Hansen LD, Sullivan JH (2018) Calorespirometry Measurement of Sugar Maple Seedling and Mature Tree Response to Calcium, Magnesium, and Nitrogen Additions in the Catskill Mountains, NY, USA. JSM Environ Sci Ecol 6(1): 1060.

This manuscript is published posthumously in memory of Dr. Bahram Momen (1955-2018), who directed this study. His service and dedication to his student’s, colleagues and his profession made possible this and dozens of other manuscripts. He will be remembered as a valuable colleague and leader, a selfless person who never said “no” to a student who needed his help and a good friend.

Acer saccharum Marsh (sugar maple) an important ecological and economical tree species found throughout northeastern North America’s forests has been declining for several decades [1-6]. Sugar maple decline can alter the structure and long- term stability of its habitat [7] and may be related to acidic deposition that can affect the availability of soil nutrients such as nitrogen (N), calcium (Ca), and magnesium (Mg). Detection of sugar maple decline requires a long-term monitoring of under- and over-story stand overall growth. However, such long-term, overall growth depends on the short-term alteration of plant eco-physiological processes such as carbon gain and metabolic activities that are affected by changes in soil chemistry. N is an essential component of proteins involved in photosynthesis and respiratory metabolism, and is often a growth-limiting nutrient in forests. However this may no longer be the case in area such as the Catskill region of New York that have been receiving high atmospheric deposition and may be nitrogen saturated [8].

Depletion of soil calcium by acidic deposition has been reported for sugar maple stands [9,10]. Sugar maple has a high demand for Ca, which is required by a number of plant eco- physiological processes and its depletion can harm sugar maple health and regeneration [5,6,11,12]. Therefore, Ca addition may help stressed sugar maple stands by enhancing leaf area, fine twig growth, seed production, and root starch concentration [13-17].

Results of linking growth or decline of sugar maple to soil N concentrations have been inconclusive [4,7,18,19]. Moreover, there has not been any study of the effects of N, Ca, and other basic cations such as Magnesium (Mg) in a factorial setting in the field to quantify their additive or interactive effects. This is particularly important for both seedlings and mature sugar maples considering the fact that seedling responses may not adequately reflect mature tree responses. Our main objective in this study was to quantify the synergistic or interactive effects of a factorial combination of N and Ca+ Mg additions on both sugar maple seedlings and mature trees. Quantification of the treatment effects on stand growth and health requires a long- term monitoring program, particularly for mature trees, and it would be desirable to assess possible treatment effects within a shorter time span.

Calorespirometry is a promising method of quantifying plant respiratory rate and substrate carbon conversion efficiency for early detection of the effects of stressful or favorable environmental conditions. However, plant eco-physiology literature has focused mostly on gas exchange measurements of net photosynthesis, CO2 production, and or O2 consumption rates. Under favorable conditions, plant respiratory heat rates can be used to indicate the sink activity and efficiency of converting photosynthate to structural components, and thus, realized growth and health condition [20,21]. Assessing metabolic rate by the usual measurement of the rate of CO2 evolution in the dark (dark respiration) may not reflect the total metabolic rate accurately because some intermediates of respiratory carbon metabolism can be diverted into synthetic reactions and never appear as CO2 . Also, the energy use efficiency of different synthetic pathways using respiratory products varies [22-24]. Calorimetric measurements of metabolic heat production (Rq) can be a more accurate measure of total metabolism with an emphasis on oxidative reactions [25,26]. Measures of Rq per unit of CO2 evolution or O2 consumption can also be used to detect thermodynamic efficiency of metabolic reactions and quantify catabolic and anabolic components of respiration and their ratio to determine if a plant is experiencing favorable conditions and growing or if it is stressed and in decline. Under optimum environmental conditions, if the metabolic efficiency does not change, increased Rq should indicate increased growth potential. Positive correlations between different measures of growth have been reported previously [21,26-28].

The calorespirometry theory and methodology are thoroughly discussed elsewhere [29] and explained briefly in the Material and Methods section. We quantified instantaneous rates of respiratory metabolic heat production (Rq), CO2 production (RCO2 ), and metabolic efficiency (Rq/ RCO2 ) in response to N and Ca +Mg addition to forest soil, during two summers, in 12 forest plots in the Catskill Mountains, NY. We hypothesized that Ca addition could increase both Rq and RCO2 , indicating sugar maple enhanced potential growth and release from stress caused by base cation depletion due to acidic deposition. We also hypothesized that N addition would not have any positive effect on the responses measured because the study site is reported to be N saturated.

Study site

The study was conducted in the Neversink River drainage in the Catskills region in southern New York, USA. The Catskills region is an important ecological site providing drinking water for New York City. Catskills’ soil is characterized mainly as inceptisols that are susceptible to ion imbalances and pH changes due to acidic deposition. Parent material of this soil is 40% mudstone and siltstone and 60% sandstone and conglomerates [30] that provide a very low concentration of base cations to the soil. Inceptisols are sandy loams with an average of 60% sand, exhibiting well-drained porous characteristics that result in easy leaching of nutrients [31,32]. Additionally, the Catskill soils are acid-sensitive due to glaciation, which scoured exchangeable base-rich soils from ridge tops and slopes.

Experimental design and treatments

A randomized complete block design (RCBD) with three blocks each at three elevations, 670-680, 700-710, or 720- 730 m was used. Within each block, four 50x50 m plots were assigned randomly to each of the four treatments consisting of: 1) reference (no additions), 2) annual additions of 25 kg ha-1 of N for three years(+N), 3) a single addition of 2268 kg of dolomitic limestone in the fall (+Ca Mg) and 4) a single addition of 2268 kg of dolomitic limestone in fall plus annual additions of 25 kg ha-1 of N for three years (+CaMgN). N was added as NH4 NO3 for two years, and then in the form of urea thereafter when NH4 NO3 became unavailable commercially. The addition of 25 kg N ha-1 was approximately double the atmospheric deposition of N at the site. The dolomitic limestone was 17.7% Ca and 10.6% Mg, which resulted in additions of 1606 kg Ca and 962 kg Mg ha-1. Both the dolomite and N were applied in pelletized form by hand. To ensure uniform distribution, each plot was divided into 5x5 m squares to receive a pre-measured dose.

Foliage sampling and measurements

Foliage was collected from mature trees and seedlings in the field during July mornings in 2006 and 2007. During each measuring period, foliage was harvested from three mature trees (as subsamples) from each replicate plot. Few seedlings were available, and thus, only one seedling per replicate plot was sampled. Foliage from mature trees was collected by shotgun sampling of branches from the periphery of upper canopy positions from dominant or co-dominant trees. The foliage was immediately put in air-tight plastic bags inside a cooler at 1C and transported to a refrigerator in the laboratory.

A multi-cell differential scanning calorimeter (MC-DSC, TA Instruments, New Castle, DE) was used in isothermal mode. This device has four independent slots with 1 mL sealed ampules that enables measurements on three samples at a time with the fourth serving as a reference. The measuring temperature was set between 20-25 C to mimic the average midday temperature in the field at the time of sampling. One set of measurements was made first with empty ampules to obtain an instrument baseline for each slot (in µW) to subtract from foliage measurements. Approximately 150 mg (fresh weight) of leaf foliage with minimal visible injury, usually from the center, was cut with a sterile razor and put inside each measuring ampule with a small piece of wet paper tissue to minimize tissue evaporation. The ampules were sealed and placed in the calorimeter and allowed to equilibrate for about 20 minutes at the controlled temperature. Then, heat production rates were measured to reach constant values within about another 20 minutes. Next, the ampules were taken out, opened, and a small vial containing 50 µL of 0.4 M NaOH was inserted into each of the ampules. The ampules were resealed and placed inside the calorimeter again, and heat production rates measured until constant values were reached. The CO2 produced by respiration inside the ampules reacts with the NaOH and produces 108.5 kJ/mole CO2 in addition to the heat from metabolizing foliage [32]. Finally, the NaOH was removed from the ampules and another set of heat rate measurements made on the foliage alone to adjust for possible time effect on the foliage heat production rate. After the heat rate measurements, the foliage was oven dried at 70°C for three days to obtain constant dry mass. The completion of all subsamples and replicates of mature-tree and seedling foliage required 4 to 5 days of storage of leaves after harvesting. A preliminary experiment indicated no significant effect of storage time on our sugar maple foliage. Lack of storage time effect is also reported for ponderosa pine [33].

Statistical analysis was performed using The MIXED Procedure of the SAS System testing for main effects of N addition and CaMg addition and their interaction in a 2X2 factorial.

Metabolic heat rate (Rq) and the rate of CO2 production (RCO2 ) were normalized per unit of dry mass, and Rq/RCO2 calculated as described by Hansen et al. [33], We used many subsamples but the statistical analysis was performed based on three replicated forest plots for each treatment combination. These results are shown in Figures 1-3.

Figure 1: Main-effect means of addition of either N (with and without CaMg added combined, “no N” or “N added”) or addition of CaMg (with and without N added combined, “no CaMg” or “CaMg added”) on foliar metabolic heat production rate. Each bar is the mean with standard error (arrows) of at least three samples. Different letters on top of bars (SEs) indicate a statistically significant (P < 0.05) difference in means.

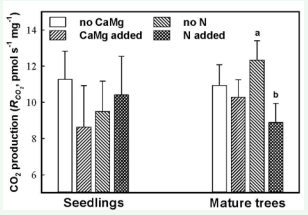

Figure 2: MainMain-effect means of addition of either N (with and without CaMg added combined, “no N” or “N added”) or addition of CaMg (with and without N added combined, “no CaMg” or “CaMg added”) on foliar CO2 production rate. Each bar is the mean with standard error (arrows) of at least three samples. Different letters on top of bars (SEs) indicate a statistically significant (P < 0.05) difference in means.

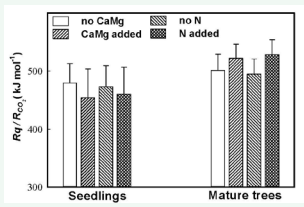

Figure 3: Main-effect means of addition of either N (with and without CaMg added combined, “no N” or “N added”) or addition of CaMg (with and without N added combined, “no CaMg” or “CaMg added”) on foliar metabolic heat produced per mol CO2 released production rate. Each bar is the mean with standard error (arrows) of at least three samples.

No interaction (P > 0.05) was detected between the effects of CaMg (liming) and N addition on any response measured for seedlings or mature trees. Therefore, the main-effect means of each level of either liming or N addition were averaged across the other factor. These are reported in Figures 1-3. No effect of liming or N addition was detected for seedlings on any metabolic response measured. In mature trees, N addition decreased rates of foliar metabolic heat production (Figure 1) and, CO2 production (Figure 2), but had no significant effect on metabolic efficiency (Rq/RCO2 -Figure 3) (P < 0.5).

No statistical comparison was made between seedling and mature responses as this was not our objective. However, the measured responses of seedlings and mature trees did not seem to differ. Rq/RCO2 seemed to be higher in mature trees than in seedlings, but both sets are within the limits of error of the 470 kJ/mole expected for non-growing tissue respiring sugar [34,35].

Contrary to our expectations and previous reports in the literature [36], calcium and magnesium addition did not induce a positive foliar metabolic response in seedlings or mature trees (Figure 1-3). This was unexpected especially for seedlings considering that liming increased Ca, Mg, and pH in the soil Oe horizon [37] where fine roots of seedlings are present. This indicates that liming may not benefit sugar maple seedlings’ establishment and survival. Mature trees have the bulk of their roots in a deeper horizon for which soil chemistry data before and after treatment application are not available, and therefore, discussion of lack of liming effect on mature trees is not relevant. However, levels of foliar N were shown to increase in mature sugar maples in response to liming and this was accompanied by a reduction in C:N ratio in foliage [38].

In interpreting the results, we assume that the decreased metabolic rates in mature leaves adversely affected transport of photosynthate to stems and roots. Although N addition did not affect soil Oe, Oa/A, and B horizons [37], it adversely affected mature trees by decreasing their instantaneous rates of foliar metabolic heat production (Figure 1) and CO2 production (Figure 2). These adverse N effects on mature trees are consistent with a decrease in apparent quantum efficiency of mature trees, but contrary to the result that N, when combined with Ca and Mg addition, increased photosynthetic capacity of mature trees [37]. However, the positive or negative effects of N, Ca, and Mg addition on the short-term, instantaneous eco-physiological responses did not result in changes in the basal area of mature sugar maple trees in our forest sites [37].

The effects of N and liming on sugar maple have been studied widely but no past study has focused on the metabolic responses measured in this study. Our results provide a small step towards understanding the complex issue of the adverse effect of atmospheric deposition and climate change on sugar maple mature tree die-back and lack of seedling establishment.

This manuscript represents a part of the MS Thesis of Shawn J. Behling. We wish to thank the Department of Plant Science and Landscape Architecture and Dr. Gregory Lawrence, USGS for support of this work.

1. Adams CM, Hutchinson TC. Fine-root growth and chemical- composition in declining Central Ontario sugar maple stands. Can J Forest Res. 1992; 22: 1489-1503.
2. Kolb T, McCormick L. Etiology of sugar maple decline in four Pennsylvania stands. Can J Forest Res. 1993; 23: 2395-2402.
3. McLaughlin S, Percy K. Forest health in North America: Some perspectives on actual and potential roles of climate and air pollution. Water Air Soil Poll. 1999; 116: 151-197.
4. Horsley SB, Long RP, Bailey SW, Hallett RA, Hall TJ. Factors associated with the decline disease of sugar maple on the Allegheny Plateau. Can J Forest Res. 2000; 30: 1365-1378.
5. Long RP, Horsley SB, Hallett RA, Bailey SW. Sugar maple growth in relation to nutrition and stress in the northeastern United States. Ecol Appl. 2009; 19: 1454-1466.
6. Sullivan TJ, Lawrence GB, Bailey SW, McDonnell TC, Beier CM, Weathers KC, et al. Effects of Acidic Deposition and Soil Acidification on Sugar Maple Trees in the Adirondack Mountains, New York. Environ Sci Technol. 2013; 47: 12687-12694.
7. Duchesne L, Ouimet R, Houle D. Basal area growth of sugar maple in relation to acid deposition, stand health, and soil nutrients. J Environ Qual. 2002; 31: 1676-1683.
8. Lovett GM, Weathers KC, Sobczak WV. Nitrogen saturation and retention in forested watersheds of the Catskill Mountains, New York. Ecol Appl. 2000; 10: 73-84.
9. Johnson AH, Moyer A, Bedison JE, Richter SL, Willig SA. Seven Decades of Calcium Depletion in Organic Horizons of Adirondack Forest Soils. Soil Sci Soc Am J. 2008; 72: 1824-1830.
10. Warby RAF, Johnson CE, Driscoll CT. Continuing Acidification of Organic Soils across the Northeastern USA: 1984-2001. Soil Sci Soc Am J. 2009; 73: 274-284.
11. Duchesne L, Ouimet R, Moore JD, Paquin R. Changes in structure and composition of maple-beech stands following sugar maple decline in Quebec, Canada. For Ecol Manage. 2005; 208: 223-236.
12. Hallett RA, Bailey SW, Horsley SB, Long RP. Influence of nutrition and stress on sugar maple at a regional scale. Can J Forest Res. 2006; 36: 2235-2246.
13. Liu G, Cote B, Fyles JW. Effects of base cation fertilization on the nutrient status, free amino acides and some carbon fractions of the leaves of sugear maple (Acer Saccharum Marsh). Plant Soil. 1994; 160: 79-86.
14. Long RP, Horsley SB, Lilja PR. Impact of forest liming on growth and crown vigor of sugar maple and associated hardwoods. Can J Forest Res. 1997; 27: 1560-1573.
15. Wargo PM, Minocha R, Wong BL, Long RP, Horsley SB, Hall TJ. Measuring changes in stress and vitality indicators in limed sugar maple on the Allegheny Plateau in north-central Pennsylvania. Can J Forest Res. 2002; 32: 629-641.
16. Juice SM, Fahey TJ, Siccama TG, Driscoll CT, Denny EG, Eagar C, et al. Response of sugar maple to calcium addition to Northern Hardwood Forest. Ecology. 2006; 87: 1267-1280.
17. Moore JD, Ouimet R. Ten-year effect of dolomitic lime on the nutrition, crown vigor, and growth of sugar maple. Can J Forest Res. 2006; 36: 1834-1841.
18. Magill AH, Aber JD, Berntson GM, McDowell WH, Nadelhoffer KJ, Melillo JM, et al. Long-term nitrogen additions and nitrogen saturation in two temperate forests. Ecosystems. 2000; 3: 238-253.
19. Catovsky S, Bazzaz FA. Nitrogen availability influences regeneration of temperate tree species in the understory seedling bank. Ecol Appl. 2002; 12: 1056-1070.
20. Hansen LD, Hopkin MS, Criddle RS. Plant calorimetry: A window to plant physiology and ecology. Thermochim Acta. 1997; 300: 183-197.
21. Hansen LD, Lewis EA, Eatough DJ, Fowler DP, Criddle RS. Prediction of long-term growth-rates of larch clones by calorimetric measurements of metabolic rates. Can J Forest Res. 1989; 19: 606-611.
22. Smith BN, Walker JL, Stone RL, Jones AR, Hansen LD, Usda, et al. Temperature-dependent respiration-growth relations in ancestral maize cultivars. 2000; 276-279.
23. Hansen LD, Smith BN, Criddle RS, Church JN, Usda, Usda. Responses of plant growth and metabolism to environmental variables predicted from laboratory measurements. 2000; 259-264.
24. Amthor JS. Respiration in a future, higher-CO2 world. Plant Cell and Environment. 1991; 14: 13-20.
25. Criddle RS, Breidenbach RW, Lewis EA, Eatough DJ, Hansen LD. Effects of temperature and oxygen depletion on metabolic rates of tomato and carrot cell-cultures and cuttings measured by calorimetry. Plant Cell and Environment. 1988; 11: 695-701.
26. Hansen LD, Woodward RA, Breidenbach RW, Criddle RS. Dark metabolic heat rates and integrated growth-rates of coast redwood clones are correlated. Thermochim Acta. 1992; 211: 21-32.
27. Anekonda TS, Criddle RS, Libby WJ, Breidenbach RW, Hansen LD. Respiration rates predict differences in growth of coast redwood. Plant Cell and Environment. 1994; 17: 197-203.
28. Criddle RS, Anekonda TS, Tong S, Church JN, Ledig FT, Hansen LD. Effects of climate on growth traits of river red gum are determined by respiration parameters. Aust J Plant Physiol. 2000; 27: 435-443.
29. Wadso L, Hansen LD. Calorespirometry of terrestrial organisms and ecosystems. Methods. 2015; 76: 11-19.
30. Murdoch PS, Stoddard JL. Chemical characteristics and temporal trends n 8 streams of the Catskill mountains, New York, New York. Water Air Soil Poll. 1993; 67: 367-395.
31. Lawrence GB, David MB, Lovett GM, Murdoch PS, Burns DA, Stoddard JL, et al. Soil calcium status and the response of stream chemistry to changing acidic deposition rates. Ecol Appl. 1999; 9: 1059-1072.
32. Hansen LD, Dipple GM, Gordon TM, Kellett DA. Carbonated serpentinite (listwanite) at Atlin, British Columbia: A geological analogue to carbon dioxide sequestration. Canadian Mineralogist. 2005; 43: 225-239.
33. Hansen, LD, Criddle RS, Smith BN. “Calorespirometry in Plant Biology”, in Plant Respiration: From Cell to Ecosystem, edited by H. Lambers and M. Ribas-Carbo. 2005; 17-30.
34. Ellingson D, Olson A, Matheson S, Criddle RS, Smith BN, Hansen LD, Determination of the Enthalpy Change for Anabolism by Four Methods. Thermochimica Acta. 2003; 400: 79-85.
35. Hansen LD, Macfarlane C, McKinnon N, Smith BN, Criddle RS, Use of Calorespirometric Ratios, Heat per CO2 and Heat per O2, to Quantify Metabolic Paths and Energetic of Growing Cells. Thermochimica Acta, 2004; 422: 55-61.
36. Momen B, Helms JA, Criddle RS. Foliar metabolic heat rate of seedlings and mature trees of Pinus ponderosa exposed to acid rain and ozone. Plant Cell Environ. 1996; 19: 747-753.
37. Momen B, Behling SJ, Lawrence GB, Sullivan JH. Photosynthetic and Growth Response of Sugar Maple (Acer saccharum Marsh.) Mature Trees and Seedlings to Calcium, Magnesium, and Nitrogen Additions in the Catskill Mountains, NY, USA. Plos One. 2015; 10.
38. Behling, Shawna J. Affects of nitrogen and calcium on photosynthesis and metatolic activity in sugar maple in the Catskill mountains. 2007; 70.
