The integrated discrimination improvement (IDI) index is a popular and sensitive tool in identifying a useful predictor in a binary outcome of interest. However, due to its highly asymmetric null distribution, the Z-statistic proposed by for IDI-based testing of new predictors was proven not valid. In this article, the researchers proposed a modified version of IDI to assess the performance or accuracy of the predictors of an ordinal outcome. Monte Carlo simulations were conducted to investigate the statistical properties of the proposed  measure. The asymptotic distribution was derived using U-statistics. The methodology was further applied to a proportional odds ordinal logistic regression model with the inclusion of the blood urea nitrogen/creatinine ratio to discriminate stroke in evolution among acute ischemic stroke patients. These results of the study add to the literature regarding optimal prediction modeling research. The modified version of IDI has a symmetric null distribution; the Z-statistic for testing of new predictors was proven valid.

Model performance; Integrated discrimination improvement; Stroke in evolution

Yu WW, Chang CH, Lin LC, Yen CH (2017) Evaluating the Incremental Predictive Ability of a New Predictor in Ordinal Outcome Risk Model. JSM Health Educ Prim Health Care 2(1): 1026.

Using multivariate risk prediction models to identify key predictors associated with the risk levels and quantification of the risk have been among the major advances made in prevention strategies adopted in medicine in the recent decades. In an earlier simulation study of the logistic model [1,2], the estimated average regression coefficients were found to be inaccurate when compared with the “true” population values, even with a fairly large sample. Problems with the validity of the Z-statistic under the null hypothesis were that the Type I error was either greater or less than the nominal value of 5%, and the statistical significance did not imply the improvement in model performance. Equally difficult, was the use of AUC to judge the multitude of increase, because its inability to highlight the value of the new factors that were useful for making predictions [1,3]. To overcome these problems, the integrated discrimination index (IDI), attempting to assess whether or not adding a new factor improves discrimination performance of an established risk prediction model [4]. It is accomplished by assigning a weight to each movement that is equal to the difference(s) of probabilities based on models with and without a new factor. However, Kerr et al. added that the IDI tends to underestimate the standard error. The proposed Z-statistic in the literature for IDI-based testing of a new predictor was proven to be not valid, because the test statistic did not show a standard normal null distribution [5]. In spite of this, the IDI still has been increasingly popular in predictive modeling research. Furthermore, IDI was developed as binary risk prediction models. In reality, much many predicted outcomes in medicine have been ordinal data [6]. The aim in our real clinical diagnoses was to categorize the National Institutes of Health Stroke Scale (NIHSS) score as ordinal predicted outcomes. The NIHSS score objectively quantifies the level of impairment caused by a stroke. It has also gained popularity as a clinical tool utilized in treatment planning. For instance, the Bureau of National Health Insurance in Taiwan implemented a payment scale for the rt-PA treatment of acute ischemic stroke (AIS), requiring a minimum of NIHSS score to be equal to or greater than 25 for a patient to receive any form of subsidy. The ordinal outcome models are far more complex to explain the clinical reality than the ones in binary risk prediction. Many valuable clinical data with ordinal responses are often dichotomized for this reason [7-11]. Moreover, assessing the discrimination performance of ordinal risk prediction models is not always a straightforward measure. Most of them are based on the extension of c-statistic, such as generalized c, Obuchowski, average dichotomized c and ordinal volume under the ROC surface [12-17]. However, none of which can be used to test for the incremental value of a predictor. In light of this, the researchers proposed a new measure to evaluate the incremental gain of a new predictor in an ordinal risk prediction model. Ideally, a fine discrimination performance measure should possess the following two properties: P1. The power of the measure should be approximately equal to the stated significance level when H0 is true, P2. The null distribution of the measure follows a standard normal distribution. As previously mentioned, statistical IDI does not satisfy both assumptions. This provides a ground for improvements.

Modified version of IDI for ordinal outcomes

Assuming , i1 p , i2 p ..., i pin , in which i = ,1 ,2 3 represent the independently randomly predicted probabilities of the event from three overlapping and continuous distributions. The volume under the ROC surface (VUS) is equal to the probability that three predicted probabilities, one from each category, are classified in the correct order category [16]. Hence, the unbiased nonparametric estimator of the VUS proposed by Dreiseitl et al. is equivalent to the nonparametric test statistic proposed by Terpstra and Magel except that it multiplies the weight by the estimator, which is expressed as follows [17,18]:

Specifically,  provided that at least one strict inequality exists; otherwise,

Next, the following notations are introduced:

 is the fraction of the rank of pk being equal to k with respect to p1 , p2 ,…, pk (numerator) over    (denominator), and the subscript new refers to the model with a new factor.  is the fraction of the rank of pk being equal to k with respect to p1 , p2 ,…, pk (numerator) over  (denominator), and the subscript old refers to the model without a new factorSimilarly, and , where i = 1,…, k-1, correspond to the fractions of rank of pi being equal to i with respect to p1 , p2 ,…, pk (numerator) among (denominator), only that the subscript new refers to the model with a new factor and subscript old refers to the model without one.

In a set of cases, it is desirable that the predicted probabilities of the event of each category are consistent with the order of the ordinal outcome. Therefore, the score awarded to a set equals the number of categories for which this holds. The new measure of three ordinal categories is express as the following form

MIDI (3) is denoted as the modified version of IDI of three ordinal categories and SF(3) refers to the sum of F(3), F(2) and F(1). Based on the equation (1), the MIDI (3) can be inferred as follows:

R (pi ) is denoted the rank of pi with respect to p1 , p2 , and p3 , and I (.) denotes the indicator function.

The following was obtained as a way of generalization:

Consequently, also obtained was an asymptotic test for null hypothesis of MIDI (k) = 0 as follows:

In the equation (2),  is the estimator of correlation coefficient of  under  .

The simulated powers of ZMIDI(3) are shown to be close to the nominal level under the null hypothesis. (Table 1) illustrates the simulated critical values for α = 0 05 . of sample size combinations. Comparing with asymptotic critical values of 1.6449 for α = 0 05 . under the null hypothesis, they are all not too far apart. We also investigated more thoroughly of the sampling distribution of MIDI and ZMIDI under H0 . (Figures 1,2)

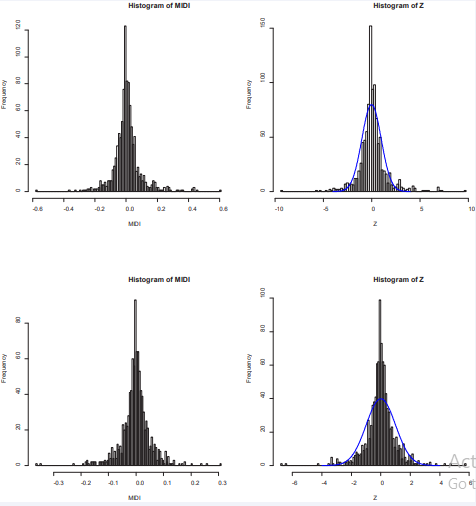

Figure 1: Null distribution of MIDI(3)/ZMIDI(3) for simulated data sets using a proportional odds logistic model & Standard normal curves of ZMIDI(3) (top row; n1 = n2 = n3 = 10, bottom row; n1 = 150, n2 = 10, n3 = 50).

Figure 2: Null distribution of MIDI(4)/ZMIDI(4) for simulated data sets using a proportional odds logistic model & Standard normal curves of ZMIDI(4) (top row; n1 = n2 = n3 = n4 = 10, bottom row; n1 = 150, n2 = 10, n3 = 10, n4 = 10).

show the histograms of MIDI (3), ZMIDI (3) and MIDI (4), ZMIDI(4) under H0 of the sample size combinations (10, 10, 10), (150, 10, 50) and (10, 10, 10, 10), (150, 10, 10, 10), and M = 10,000. The null distributions of MIDI and ZMIDI are all symmetric with are centered in zero. (Table 2) provides the p values of the 5 randomly individual cases of β2 coefficients of 2, 4 and 6 in the fitted ordinal logistic regression model and for the MIDI (3) and MIDI (4) with sample size combinations (20, 20, 20) and (20, 20, 20, 20). The result demonstrated that the p-values of β2 are inconsistent with the p-values of ZMIDI. The resulting p-values of β2 are only significant for a correlation between s and y. In contrast to this, the MIDI is used to assess improvement in model discrimination. However, small p values of β2 cannot guarantee to detect the significance of MIDI (Table 1,2).

Up to 40% of the patient with the stroke experienced early deterioration in their conditions after being hospitalized [20]; such patients are defined as stroke in evolution (SIE). SIE patients experience a worsening neurologic condition as indicated by an increase in their NIHSS scores within 72 hours of admission. Theoretically, although any increase in NIHSS score can be indicative of SIE, symptoms can be border line in some cases. Hence, any change of below 0 is categorized as amelioration, 1-2 as border line, and 3 or more as SIE in the present study. The reason for such is that a larger increase can often be more indicative of the patient’s worsening conditions. The analysis was based on data from 196 AIS patients recruited from the Chia-Yi Chang Gung Memorial Hospital and 27 of which were diagnosed of SIE.

According to Lin, the ratio of blood urea nitrogen/ creatinine (BUN/Cr) higher than 15 was cogent predictor of SIE [21]. We evaluated the improvement in model performance with the inclusion of age and BUN/Cr ratio. ZMIDI(3) was used to test the significance. The increase value in the VUS was also presence for reference. Thirty (15.3%) of 196 patients were diagnosed with SIE. The mean (SD) age of the 196 participants enrolled was 70.6 (10.4) years, ranging from 44 to 99 years. A proportional odds ordinal logistic regression model showed that the BUN/Cr ratio higher than 15 was significant (p = 0.011), and VUS increased from 0.1943 to 0.3212 adding that BUN/Cr ratio is higher than 15 (Table 3). The estimator of correlation coefficient of SF (3)new and SF(3)old under H0 of 0.854 was used based on the ,oldnew ρˆ for sample size scenario 38 (Table 3). The values of F (3), F (2) and F (1) with BUN/Cr are shown the top row in Table (4). The significant difference was noted in ZMIDI(3) for BUN/Cr. MIDI(3), with the inclusion of BUN/Cr, was summed up to 0.3681, due to a 2.82 % increase in F (1), 12.08 % increase in F (2) and 23.55 % increase in F (3), respectively (Table 3,4).

The result is supported by the findings presented by Lin et al., indicating that BUN/Cr was found to be the significant predictor of SIE [22]. In addition, MIDI (3) not only suggested that the inclusion of the factor in the proportional odds ordinal logistic regression model can result in improvement in performance, but also provided the F (.) values of for threelevel outcome from this study. We may conclude that the addition of BUN/Cr improved the F (.) values by 2.81 %,12.08 % and 23.55 % for cases with NIHSS score increases of below 0, 1–2 and 3 or more among ∏= 3 i 1 ni results. We also evaluated the improvement in model performance with the inclusion of NIHSS, Glasgow Coma Scale score (GCS) and D-dimers using the MIDI (3). With the case of BUN/Cr, F (2) (12.08%) and F(3) (23.55 %) made most contributions to MIDI(3), and F(1) (2.81%) is the smallest among NIHSS, GCS and D-dimers. This implied that the discrimination performance of BUN/Cr is not better than NIHSS, GCS and D-dimers for the predicted probability of SIE for patients without early deterioration after stroke. Moreover, the bottom row in (Table 2) also shows the 1st step of backward elimination from full model (including age, BUN/Cr, NIHSS, GCS and D-dimers). The NIHSS and GCS were far from significant in proportional odds ordinal logistic regression model with p = 0.6923 and 0.2964, respectively. However, the MIDI (3) identified them as marginal significant predictors (p = 0.074, p = 0.053). With the addition of BUN/Cr, F (.) values improved by 14.34 % and 3.30 % for cases with NIHSS increases of 3 or more and 1–2 among ∏= 3 i 1 ni results, but a loss of 0.95 % was noted for cases whose NIHSS increases were below 0. Subsequently, the addition of NIHSS improved F(.) values by 4.88 %, 2.77 % and 0.96 %, and the addition of GCS improved F(.) values by 8.82 %, 1.37 % and -0.60 %. The F (1) values increased quite evenly throughout from 0.4659 to 0.4754 and 0.4719, as BUN/Cr and GCS were removed separately from the full mode.

Table 1: Null distribution of ZMIDI (k) for k = 3.

	k = 3
	Average MIDI(3)	Average power	Simulated critical value	new,old		Average MIDI(3)	Average power	Simulated critical value	new,old
		P(ZMIDI(3) >1.6449)	ZMIDI(3)0.05				P(ZMIDI(3) >1.6449)	ZMIDI(3)0.05
1	0.00081	0.0533	1.6982	0.9644	20	0.00111	0.0387	1.4321	0.9527
2	-0.0002	0.0444	1.5149	0.8736	21	-0.0020	0.0377	1.3672	0.9182
3	0.00946	0.0567	1.7640	0.8505	22	0.00155	0.0441	1.5611	0.9614
4	0.00355	0.0531	1.6965	0.8442	23	-0.0005	0.0354	1.3421	0.9266
5	0.00478	0.052	1.6884	0.8185	24	-0.0012	0.0374	1.3813	0.9305
6	0.00000	0.0473	1.5961	0.9810	25	0.00113	0.0385	1.4261	0.9529
7	0.00442	0.0473	1.5834	0.9113	26	0.00179	0.0529	1.6852	0.9727
8	0.00007	0.0413	1.4856	0.8867	27	0.00132	0.0475	1.5985	0.9534
9	0.00099	0.0424	1.5240	0.8713	28	-0.0001	0.0395	1.4346	0.9183
10	0.00426	0.0513	1.6645	0.8439	29	-0.0026	0.0404	1.4417	0.8812
11	0.00044	0.0489	1.6251	0.9864	30	0.00333	0.0447	1.5636	0.9368
12	-0.0036	0.0326	1.2634	0.9344	31	0.00006	0.0460	1.6012	0.9962
13	0.00024	0.0401	1.4233	0.9050	32	0.00023	0.0413	1.4856	0.9913
14	-0.0006	0.0409	1.4667	0.8860	33	-0.0021	0.0406	1.4593	0.9403
15	-0.0070	0.0349	1.3398	0.8695	34	0.00159	0.0368	1.2572	0.9758
16	-0.0009	0.0363	1.3824	0.9605	35	0.00016	0.0529	1.6852	0.9610
17	0.00082	0.0406	1.4593	0.9206	36	0.00085	0.0465	1.4635	0.9419
18	0.00088	0.0466	1.5920	0.9739	37	0.00408	0.0452	1.4772	0.9168
19	0.00115	0.0407	1.4558	0.9420	38	0.00120	0.0475	1.6116	0.8540
k = 3: 1: n1 =10, n2 =10, n3 =10; 2: n1 =30, n2 =10, n3 =10; 3: n1 =50, n2 =10, n3 =10; 4: n1 =70, n2 =10, n3 =10; 5: n1 =150, n2 =10, n3 =10; 6: n1 =10, n2 =30, n3 =10; 7: n1 =30, n2 =30, n3 =10; 8: n1 =50, n2 =30, n3 =10 9: n1 =70, n2 =30, n3 =10; 10: n1 =150, n2 =30, n3 =10; 11: n1 =10, n2 =50, n3 =10; 12: n1 =30, n2 =50, n3 =10 13: n1 =50, n2 =50, n3 =10; 14: n1 =70, n2 =50, n3 =10; 15: n1 =150, n2 =50, n3 =10; 16: n1 =24, n2 =10, n3 =20 17: n1 =24, n2 =10, n3 =47; 18: n1 =24, n2 =10, n3 =23; 19: n1 =24, n2 =10, n3 =17; 20: n1 =24, n2 =10, n3 =31 21: n1 =22, n2 =10, n3 =44; 22: n1 =22, n2 =10, n3 =19; 23: n1 =22, n2 =10, n3 =37; 24: n1 =22, n2 =10, n3 =38 25: n1 =22, n2 =10, n3 =29; 26: n1 =16, n2 =10, n3 =16; 27: n1 =16, n2 =10, n3 =13; 28: n1 =16, n2 =10, n3 =29 29: n1 =16, n2 =10, n3 =49; 30: n1 =16, n2 =10, n3 =23; 31: n1 =82, n2 =79, n3 =83; 32: n1 =82, n2 =79, n3 =87 33: n1 =65, n2 =143, n3 =24; 34: n1 =70, n2 =92, n3 =58; 35: n1 =82, n2 =56, n3 =59; 36: n1 =67, n2 =54, n3 =33 37: n1 =62, n2 =67, n3 =25; 38: n1 =154, n2 =16, n3 =27

Table 2: P-values of the null hypothesis in the proportional odds logistic simulation model and corresponding MIDI (k) for k=3 and 4.

Table 3: Proportional odds ordinal logistic regression coefficients for examined predictors.

Table 4: Contributions to SIE prediction in AIS patients1

The example in Table (2) provided in the study also illustrates how an increase in the MIDI (3) can lead to a decrease in the F (1). This might suggest the researchers to reconsider alternative ways to evaluate increases in the MIDI (3) or VUS, or perhaps the p value of <0.05 shall not be suggested in the clinical practice. In clinical reality, most patients’ symptoms may not be considered critical by medical professionals. However, the additional cost of obtaining an extra predictor is significantly high. Thus, it might not be worth the efforts to include it in the prediction models. Alternatively, we might want to resort to traditionally measures. A word of caution as always, any decision of the kind should be based upon the clinical and public health implications.

Finally, it should be noted that one of the limitations of the proposed measure is that to estimate the unknown correlation coefficient between old and new SF under H0 , ,oldnew ρˆ , may result in intensive computation. Note that the data given in (Table 3) can be used to approximate ,oldnew ρˆ for sample size combinations that do not appear in the table. For instance, one might consider a parametric or nonparametric fit to the data {n1 , n2 , n3 , ρnew,old} for k=3 and then applies this fit to obtain ,oldnew ρˆ .

1. Pencina MJ. Extensions of net reclassification improvement calculations to measure usefulness of new biomarkers. Stat Med. 2011; 30: 11-21.

2. Lilienfeld DE, Pyne DA. The logistic analysis of epidemiologic prospective studies: investigation by simulation. Stat Med. 1984; 3: 15-26.

3. Cook NR. Use and misuse of the receiver operating characteristic curve in risk prediction. Circulation. 115; 928-935.

4. Pencina MJ. Evaluating the added predictive ability of a new marker: From area under the ROC curve to reclassification and beyond. Stat Med. 2008; 27: 157-172.

5. Kerr KF, Mc Clelland RL, Brown ER, Lumley T. Evaluating the incremental value of new biomarkers with integrated discrimination improvement. Am J Epidemiol. 2011; 174: 364-374.

6. Whitehead A, Omar RZ, Higgins JP, Savaluny E, Turner RM, Thompson SG, et al. Meta-analysis of ordinal outcomes using individual patient data. Stat Med. 2001; 20: 2243-2260.

7. Hacke W, Kaste M, Bluhmki E, Brozman M, Dávalos A, Guidetti D, et al.Thrombolysis with alteplase 3 to 4.5 hours after acute ischemic stroke. N Engl J Med. 2008; 359: 1317-1329.

8. Chen MY, Wang EK, Jeng YJ. Adequate sleep among adolescents is positively associated with health status and health-related behaviors. BMC Public Health. 2006; 6: 59.

9. Yang RJ, Wang EK, Hsieh YS, Chen MY. Irregular breakfast eating and health status among adolescents in Taiwan. BMC Public Health. 2006; 6: 295.

10. De Lemos JA, Drazner MH, Omland T, Ayers CR, Khera A, Rohatgi A, et al. Association of troponin T detected with a highly sensitive assay and cardiac structure and mortality risk in the general population. JAMA. 2010; 304: 2503-2512.

11. Guo SE, Huang TJ, Huang JC, Lin MS, Hong RM, Chang CH, et al, Alcohol, betel-nut and cigarette consumption are negatively associated with health promoting behaviors in Taiwan: A cross-sectional study. BMC Public Health. 2013; 13: 257.

12. Harrell FE, Califf RM, Pryor DB, Lee KL, Rosati RA. Evaluating the yield of medical tests. JAMA. 1982; 247: 2543-2546.

13. Harrell FEJ. Regression modeling strategies: with applications to linear models, logistic regression, and survival analysis. Springer. 2001.

14. Obuchowski NA. Estimating and comparing diagnostic tests’ accuracy when the gold standard is not binary. Acad Radiol. 2005; 12: 1198- 1204.

15. Waegeman W, De Baets B, Boullart L. ROC Analysis in Ordinal Regression Learning, Pattern Recognition Letters. 2008; 29: 1-9.

16. Scurfield BK. Multiple-event forced-choice tasks in the theory of signal detectability, J Math Psychol. 1996; 40: 253-269.

17. Mossman D. Three-way ROCs. Med Decis Making. 1999; 19: 78-89.

18. Dreiseitl S, Ohno-Machado L, Binder M, Comparing three-class diagnostic tests by three-way ROC analysis, Medical Decision Making. 2000; 20: 323-331.

19. Chang CH, Chin CC, Yu W, Huang YY. Using the Bernoulli trial approaches for detecting ordered alternatives. BMC Medical Research Methodology. 2013; 13: 148-154.

20. Terpstra JT, Magel RC. A new nonparametric test for the ordered alternative problem, Nonparametric Statistics. 2003; 15: 289-301.

21. Davalos A, Castillo J. Progressing stroke. In: Fisher M, Bogousslavsky J. Current review of cerebrovascular disease, Philadelphia: Current Medicine Inc. 1999; 149-160.

22. Lin LC, Yang JT, Weng HH, Hsiao CT, Lai SL, Fann WC, et al. Predictors of early clinical deterioration after acute ischemic stroke. Am J Emerg Med. 2011; 29: 577-581.
