Nine complexes of trimethoprim with some transition metals [Cr(III), Mn(II), Fe(III), Co(II), Ni(II), Cu(II), Zn(II), Cd(II) and Hg(II)] were synthesized and characterized by elemental analysis, IR, electronic spectra and magnetic measurements. The IR spectra proved that trimethoprim act as a bidentate ligand. From the electronic spectra and magnetic measurements, all complexes have octahedral geometry. The antimicrobial activity examined against two grampositive and two gram-negative bacteria. The complexes showed a well antifungal activity. The thermal decomposition mechanisms of trimethoprim and its metal complexes were studied and suggested from the DTA and TGA curves. All complexes were thermally decomposed and ended by formation of the metal oxides except the complex of mercury.

•    Trimethoprim; Complexes; Synthesis; Biological
activity; Thermal Studies

Masoud MS, Ali AE, Elasala GS, Amer GE (2019) Synthesis, Characterization, Biological Activity and Thermal Studies of Trimethoprim Metal Complexes. J Drug Des Res 6(1): 1074.

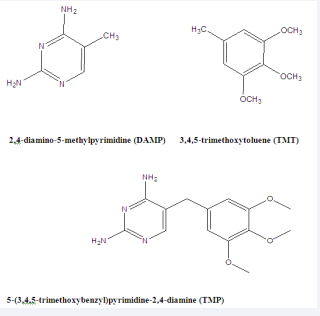

Trimethoprim, chemically 5-(3,4,5-trimethoxybenzyl) pyrimidine-2,4-diamine, it is composed of two parts: 3,4,5-trimethoxytoluene and 2,4-diamino-5-methylpyrimidine (Figure 1).

Figure 1: Chemical Structure of Trimethoprim (TMP).

It is one of the chemotherapeutic agents known as dihydrofolate reductase inhibitors. It is used in prophylaxis treatment and urinary tract infections [1].

Trimethoprim is a synthetic antibacterial combination product. It is considered as bacteriostatic antibiotic. It acts by interfering with the action of bacterial dihydrofolate reductase, inhibiting synthesis of tetrahydrofolic acid. This is an essential precursor in the de novo synthesis of the intermediate thymidine monophosphate, a precursor of DNA metabolite thymidine triphosphate [2].

Bacteria are unable to take up folic acid from the environment and are thus dependent on their own synthesis. Inhibition of the enzyme deprives the bacteria of nucleotides which are necessary for DNA replication causing, in certain circumstances, cell lethality. Trimethoprim combination with sulphadimidine antibiotic inhibits an earlier step in the folate synthesis pathway (Figure 2).

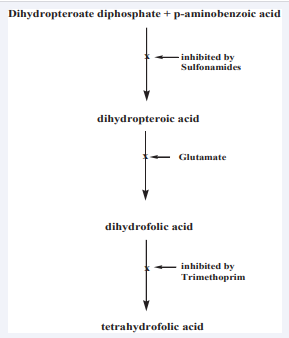

Figure 2: Mechanism of action of trimethoprim..

This combination results in an in-vitro synergistic antibacterial effect by inhibiting successive steps in folate synthesis. This benefit was not seen in general clinical use [3]. Trimethoprim has higher antimicrobial activity against gram-positive and gram-negative bacteria and antifungal activity against different fungi. Previous work for trimethoprim metal complexes fell to synthesis of trimethoprim complexes with (Fe, Cu, Zn and Pt) [4]. In this study the coordination properties of trimethoprim metal complexes were discussed and identified by IR, UV-Vis, ESR and magnetic susceptibility measurements. The thermal behavior of trimethoprim and its metal complexes were discussed from the TGA and DTA curves. The proposed mechanism of decomposition is discussed. Also the thermodynamic and kinetic parameters were calculated. The biological activity of the ligand and its complexes aimed to be studied.

The solution of trimethoprim was prepared by dissolving the solid in hot ethanol, while the solutions of the salts [Cr(III), Mn(II), Fe(III), Co(II), Ni(II), Cu(II), Zn(II), Cd(II) and Hg(II)] as chlorides were prepared by dissolving the salt in 50 ml distilled water. The solution of trimethoprim was mixed with the aqueous solution of the metal chloride with molar ratio (1:1). The reaction mixture was refluxed for about 45 min then left overnight. The obtained precipitates were isolated by filtration, and then washed by EtOH-H2O and dried in a vacuum desiccator over anhydrous CaCl2.

Table 1: Elemental analysis, m.p. and color of trimethoprim metal complexes.

The analytical data (Table 1), of the prepared complexes examined by usual methods [5]. The chloride contents of the complexes were analyzed by using Volhard method [6]. Also the contents of metals were determined by using atomic absorption spectroscopy and complexometric analysis [7].

The electronic spectra of the solid metal complexes were measured in Nujol mull spectra by use Unicam UV/Vis spectrometer [8]. The IR spectra of the trimethoprim and its metal complexes were recorded on Perkin Elmer spectrophotometer, Model 1430 which it is range of 400-4000 cm-1. The Molar magnetic susceptibilities were determined by using Pascal’s constants at room temperature using Faraday’s method. The electron spin resonance spectra were recorded on reflection spectrometer operating at (9.1–9.8) GHZ in a cylindrical resonance cavity with 100 KHZ modulation. The values of g were determined by comparison with the standard DPPH signal. Differential thermal analysis and thermogravimetric analysis of the ligand and its complexes were recorded on Shimadzu DTA/TGA-60 thermal analyzer with heating rate 10°C/min under nitrogen atmosphere of flow rate 20 ml/min. The biological activity of trimethoprim and its complexes were examined against five microorganisms representing different microbial categories, two Gram-positive (Staphylococcus Aureas ATCC6538P and Bacillus subtilis ATCC19659), two Gram negative (Escherischia coli ATCC8739 strain and Pseudomonas aeruginosa ATCC9027) and candida albicans as a fungi.

The IR of trimethoprim and its metal complexes are listed in (Table 2) with some important characteristic assignments.

Table 2: Fundamental infrared bands of trimethoprim (cm-1) and its metal complexes.

Trimethoprim showed characteristic bands at 3469, 3317 and 1636 cm-1 mainly due to the asymmetric νNH2, symmetric νNH2 and νC=N pyrimidine ring vibrations, respectively. The metal complexes also contained other bands which are indication of the coordination of the ligand with the metal ions. The asymmetric νNH2 band appeared at 3469 cm-1 in the spectrum of trimethoprim, this band and the νC=N pyrimidine ring band shifted for trimethoprim metal complexes. Spectral studies of all synthesized trimethoprim metal complexes indicated that the linking of the organic molecule with the metal ions as a bidentate ligand through the nitrogen atom N(7) of the amino group and the nitrogen atom N(2) of the pyrimidine ring. For [Cr(TMP)Cl2 (OH)H2O].H2O complex, the coordination occurred through the nitrogen atom of amino group which was indicated by shifting of νNH2 from 3469 cm-1 to 3406 cm-1 and the nitrogen atom of pyrimidine ring which was indicated by shifting of νC=N from 1636 to 1675 cm-1, Table 2, besides appearance of νM-N stretching at 507 cm-1, νM-O stretching at 490 cm-1 [9], and νMCl at 450 cm-1, Table 2. For the complex [Mn(TMP)2Cl2].H2O, the shift in the amino group from 3469 to 3405 cm-1 and the change in the value of νC=N of from 1636 to 1674 cm-1, Table 2, indicated that the coordination occurred through the nitrogen atoms of amino group and of pyrimidine ring, so the ligand acts as bidentate, in addition to appearance of bands at 518 cm-1 and 465 cm-1, Table 2, represents νM-N stretching and νM-Cl respectively. Similar situations are evident for all the other complexes Table 2. The electronic absorption spectra for the chromium complex [Cr(TMP)Cl2OHH2O].H2O showed three bands at 295, 405, 600 nm due to 4A2g→4T1g (P), 4A2g→4T1g(F) and 4A2g→4T2g(F) transitions, respectively (Table 3).

Table 3: Nujol mull electronic absorption spectra λ max (nm), room temperature effective magnetic moment values (µeff, 298° K) and geometries of trimethoprim metal complexes.

So the complex has octahedral geometry. Such octahedral geometry is deduced from the µeff value which equals, 4.71 B.M [10,11]. However, the electronic absorption spectra of the buff manganese complex, [Mn(TMP)2Cl2].H2O, (Table 3), gave bands at 310, 353 and 500 nm where the first band is assigned to 6A1g→4A1g transition, while the second band is due to 6A1g→ 4T2g transition and the last band is due to 6A1g→4T1g transition [12,13]. Its room temperature µeff value of 4.30 B.M, typified the existence of Oh geometry. The electronic absorption spectra of pale brown iron complex, [Fe(TMP)Cl2(OH)H2O].2H2O, (Table 3), gave bands at 258, 350, 483 nm. These bands are due to CT (t2g → π*) and CT (π →eg). Its room temperature µeff value of 4.26 B.M, typified the existence of Oh configuration [14,15]. The spectra for the pale pink [Co(TMP)2Cl2].3H2O complex, (Table 3), gave bands at 294, 473, 558 nm. The bands are due to charge transfer, while the latter broad band is assigned to 4T1g(F)→4T1g(P) transition with µeff = 5.13 B.M, typified the existence of octahedral geometry [16]. The green electronic absorption spectra for the [Ni(TMP)2Cl2].H2O complex showed three bands at 381, 480 and 625 nm due to 3A2g(F)→3T1g(P) and 3A2g(F)→3T1g(F) transitions, respectively, (Table 3) with octahedral geometry , further deduced from the µeff value which equal 2.80 B.M. The pale green copper complex [Cu(TMP)2Cl2].H2O, (Table 3), exhibited bands at 260, 410 and 720 nm assigned to 2Eg → 2T2g transition suggesting octahedral geometry (Figure 3) [17], with room temperature µeff value 2.09 B.M.

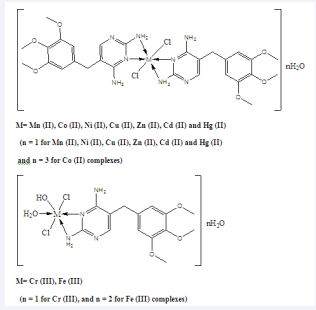

Figure 3: Proposed structures of trimethoprim metal complexes.

The complexes of zinc, cadmium and mercury are diamagnetic with d10 configuration, so no d-d transition could be observed. The geometry of zinc, cadmium and mercury complexes was octahedral depending on elemental analysis.

Electron spin resonance of copper complex

The room temperature solid state ESR spectrum of [Cu(TMP)2Cl2].H2O complex (1:2),

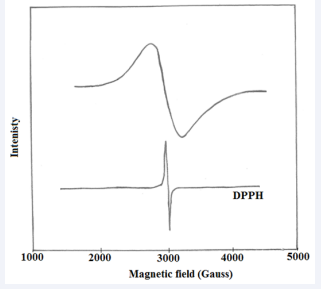

Figure 4: X-band ESR spectra of [Cu (TMP)2 Cl2 ].H2 O complex.

Figure 4 exhibit an isotropic nature where gs = 2.173 with value of A = 148 (× 10-4 cm-1).

Biological activity

The antimicrobial activities of the synthesized complexes have been screened in vitro, as growth inhibiting agents. The antibacterial and antifungal screening were carried out using disc diffusion method [18] against some strains of bacteria like Staphylococcus aureas (ATCC 6538P), Bacillus subtilis (ATCC 19659); (Gram positive), Escherichia coli (ATCC 8739) and Pesudomonas aeruginosa (ATCC 9027); (Gram negative) and one fungal species Candida albicans (ATCC 2091). The compounds were dissolved in DMSO (1mg/ml). The study included trimethoprim and four complexes of different metal ions (cobalt, nickel, copper and zinc). Two different broadly antibiotics (Ciprofloxacin and Clotrimazole) are used in this study as references. After incubation for 24 h at 37°C in the case of bacteria and for 48 h at 37°C in the case of fungi, inhibition of the organisms was evidenced by clear zone surrounding each disk, measured in millimeters [19]. Trimethoprim and its all complexes showed high antimicrobial activity. The ligand showed inhibition zone 33 for Gram-positive bacteria (Staphylococcus aureus) and inhibition zone 30 for Gram negative bacteria (Escherichia coli)(Table 4).

Table 4: Antibacterial and antifungal activity of the investigated compounds against some reference strains expressed in absolute activity (AU).

Also, it showed antifungal effect with inhibition zone 25.The [Co(TMP)2Cl2].3H2O complex showed activity for Staphylococcus aureus and Escherichia colia with inhibition zones 29 and 27, respectively. The complex has also activity against Candida albicans with inhibition zone 17. The complexes [Ni(TMP)2Cl2].H2O, and [Zn(TMP)2Cl2].H2O showed activity for Staphylococcus aureus with inhibition zones 30. While for Escherichia coli the inhibition zones were 27.The [Cu(TMP)2Cl2]. H2O complex showed activity against Staphylococcus aureus and Escherichia coli with inhibition zones 30 and 24, respectively. Trimethoprim and its metal complexes showed no activity against Pesudomonas aeruginosa and Bacillus subtilits, while they appeared a well antifungal activity with Candida albicans (Table 4).

Thermal analysis

The thermal analysis of some coordination compounds has been reported from Masoud et al [20-24]. The study of thermal analysis of the ligand (trimethoprim) and its metal complexes were investigated. In this study different techniques were used: thermogravimetric analysis (TGA) and differential thermal analysis (DTA). The data of analysis are collected in Table 5.

Table 5: DTA analysis of trimethoprim and its metal complexes.

In case of the free ligand (trimethoprim), the decomposition occurred in three steps in temperature range 36.6-597.4ºC, Figure 5.

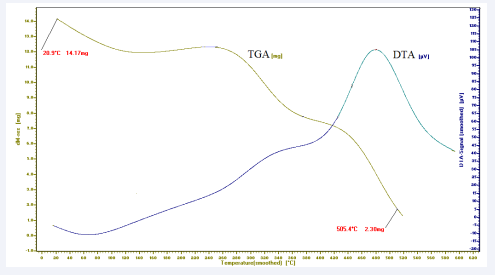

Figure 5: TGA and DTA curves for trimethoprim.

The first step of decomposition at 36.6ºC, the weight loss was 9.21%. The step ended at 255.5ºC. The second step of decomposition started above 256ºC and the weight loss was 42.02%, this step ended at 401.7ºC.While the last step was in temperature range between 402-600ºC, and the weight loss was 48.66%. All steps accompanied by the endothermic effect in the DTA curve in the range of temperature from 19.7 to 600ºC. All TGA steps were ended by no residue. The suggested mechanism of decomposition is given in Figure 6.

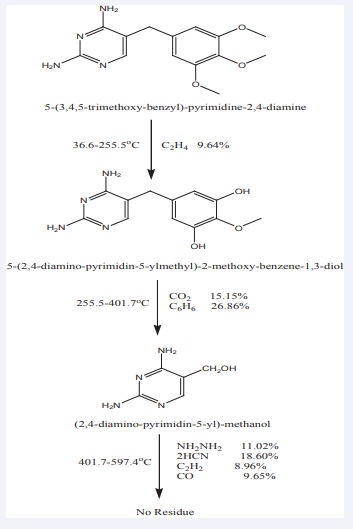

Figure 6: Thermolysis of Trimethoprim

Figure 7: TGA and DTA curves for [Cr(TMP)Cl2 (OH)H2 O].H2 O complex.

For the [Cr(TMP)Cl2(OH)H2O].H2O complex, Figure 7, the decomposition occurred in three steps. The first step of decomposition above 30ºC, the weight loss was 12.91% and ended at 232.0ºC which accompanied by the endothermic effect in the DTA curve at temperature 200ºC. The second step of decomposition started above 240 ºC and the weight loss was 33.52%, this step ended at 375ºC. While the last step was in temperature range between 380-505.4ºC, and the weight loss was 37.33%. The second and the last steps in TGA are overlapped to give an exothermic peak in DTA thermogram which appeared in temperature range 240-600ºC. The first endothermic peak is due to dehydration of water molecules and loss of ethylene. The rest strong peaks are due to decomposition steps of the complex ended with the formation of 0.5 Cr2O3 as a final product. The suggested mechanism of decomposition is given in Figure 8.

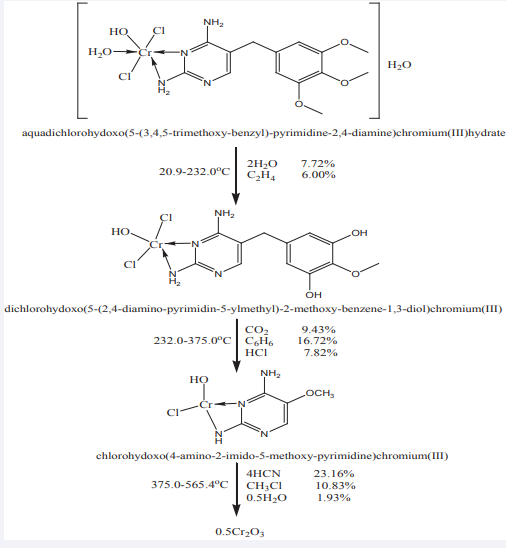

Figure 8: Thermolysis of [Cr(TMP)Cl2 (OH)H2 O].H2 O complex

Meanwhile, the [Hg(TMP)2Cl2].H2O complex, Figure 9, decomposed in three steps, there is no mass change to 35.9ºC.

Figure 9: TGA and DTA curves for [Hg(TMP)2 Cl2 ].H2 O complex

the first step started at 36ºC , the weight loss was 56.51% and ended at 157.2ºC, this step accompanied by the endothermic effect in the DTA curve at temperature 89ºC.The second step of decomposition started above 158ºC and the weight loss was 15.45%. The step ended at 265.9ºC.The last step decomposed above 266ºC, and the weight loss was 25.09% and ended at 595.9ºC. The second and last steps accompanied by the exothermic effect in the DTA curve at temperature 332ºC. All TGA steps are due to dehydration process of water molecule, sublimation of Hg in temperature range 266-595.9°C and decomposition steps of the complex ended by formation of carbon residue as a final product with 2.8%. The suggested mechanism of decomposition is given in Figure 10.

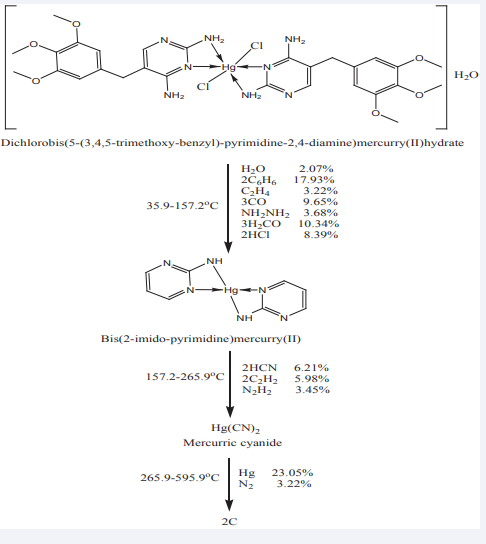

Figure 10: Thermolysis of [Hg(TMP)2 Cl2 ].H2 O complex.

Figure 11: Determination of Ea by the relation of lnΔT against 103 /T for trimethoprim ligand.

The complexes of trimethoprim was synthesized and characterized by different spectroscopic methods. The stoichiometry of complexes was determined by the analytical data. All complexes have octahedral geometries. The Nujol mull electronic spectra confirmed these results. An ESR spectrum of copper complex was studied. The spectral data confirmed that trimethoprim acts as a bidentate ligand. Trimethoprim showed higher antibacterial and antimicrobial activity than the prepared complexes for some strains. The kinetic and thermodynamic parameters were calculated from the differential thermal analysis curves. All complexes were thermally decomposed and ended by formation of metal oxides except the complex of mercury.
