JSM Diabetology and Management

Effect of Streptozotocin-Induced Type 1 Diabetes Mellitus on Contraction and Calcium Transport in the Rat Heart

Review Article | Open Access Volume 2 | Issue 1 |

  • 1. Department of Physiology, UAE University, UAE
  • 2. Department of Health Sciences, Zayed University, UAE
  • 3. Department of Cellular Membranology, Bogomoletz Institute of Physiology, Ukraine
  • 4. Department of Basic Medical Sciences, Qatar University, Qatar
  • 5. School of Forensic & Applied Sciences, University of Central Lancashire, UK
+ Show More - Show Less
Corresponding Authors
Frank Christopher Howarth, Department of Physiology, College of Medicine & Health Sciences, P.O. Box 17666, Al Ain, UAE University, UAE,
Abstract

Diabetes mellitus (DM) is a major global health disorder currently affecting 450 million people. Diabetic cardiomyopathy (DC) is a disorder of cardiac muscle that is independent of coronary artery disease and that may lead to heart failure in diabetic patients. The precise mechanism(s) of diabetic cardiomyopathy are still not fully understood. Therefore, it is of paramount importance to develop experimental models of DM to study the time course and cellular, subcellular and molecular mechanisms of diabetic cardiomyopathy. With this in mind, scientists initially discovered that the antibiotic, streptozotocin (STZ) could be used to rapidly to induce diabetes mellitus in animal models. STZ destroys pancreatic beta cells, leading to hypoinsulinemia and hyperglycaemia. If left untreated hyperglycaemia may lead to DC and eventually heart failure. Initially in DM, the cardiac myocytes become apoptotic, disorganised and the number of myocytes are significantly reduced. The heart responds by enlarging itself (hypertrophy) which is accompanied by fibrosis leading to a physiological remodelling process. Within the myocytes, the process of excitation-contraction coupling (ECC) is deranged. This is due to an inability of the heart cells to regulate Ca2+ which is the initiator and regulator of cardiac muscle contraction. As a result, the heart takes longer to contract and to relax leading to DC, progressive heart failure and eventually sudden cardiac death. The aim of this review was to evaluate our current understanding of contractile dysfunction and disturbances in Ca2+ transport in the STZ-induced diabetic rat heart.

Keywords


•    Streptozotocin
•    Diabetes mellitus
•    Rat
•    Cardiomyopathy
•    Heart
•    Ventricle
•    Calcium signaling
•    Contraction

Citation

Howarth FC, AlKury L, Smail M, Qureshi MA, Sydorenko V, et al. (2017) Effect of Streptozotocin-Induced Type 1 Diabetes Mellitus on Contraction and Calcium Transport in the Rat Heart. JSM Diabetol Manag 2(1): 1004

ABBREVIATIONS

DM: Diabetes Mellitus; DC: Diabetic Cardiomyiopathy; STZ: Streptozotocin; ECC: Excitation-Contraction Coupling; SR: Sarcoplasmic Reticulum; SERCA2: Sarcoplasmic Reticulum Ca2+ ATPase Pump; TPK: Time to Peak; THALF: Time to Half; EPI: Epicardial; ENDO: Endocardial; DNA: Deoxyribonucleic Acid; mRNA: Messenger Ribonucleic Acid; RYR: Ryanodine Receptor

INTRODUCTION

The STZ-induced diabetic rat is a widely used experimental model of DM. STZ selectively enters pancreatic beta cells via the GLUT2 glucose transporter where it causes damage to the genetic machinery and ultimately leads to beta cell death [1]. The general characteristics of the STZ-induced diabetic rat include hypoinsulinemia, hyperglycemia, dyslipidemia, polyuria, reduced body weight gain, polydipsia and polyphagia [2]. Contractile dysfunction, which is frequently observed in the diabetic heart, may include disturbances in heart rate, stroke volume, cardiac output, ejection fraction and rates of pressure development and relaxation rate [3-7].

Experiments performed in ventricular myocytes isolated from diabetic heart have variously displayed either unaltered or reduced amplitude of shortening, and prolonged time course of contraction and relaxation [8-11]. Intracellular free Ca2+ [Ca2+]i transport systems are essential to the initiation and regulation of cardiac myocyte contraction and relaxation. During the process of ECC, the arrival of an action potential at a ventricular myocyte causes membrane depolarization leading to the opening of voltage-gated L-type Ca2+ channels and a small influx of Ca2+. This small entry of Ca2+ triggers a much larger release of Ca2+ from the sarcoplasmic reticulum (SR). There follows a transient rise in intracellular Ca2+ (Ca2+ transient) which binds to the troponin C and initiates and regulates the process of myocyte contraction. Relaxation of contraction begins when Ca2+ is pumped back into the SR via the SR Ca2+ ATPase pump (SERCA2) and effluxed from the cell, primarily via the Na+ /Ca2+ exchanger [12-14]. Experiments performed in cardiac myocytes from diabetic heart have variously displayed disturbances in Ca2+ transient, time course of Ca2+ transient, L-type Ca2+ current, SR Ca2+ content, uptake and release and Na+ /Ca2+ exchange current[5,15-18]. The aim of this review was to evaluate our current understanding of contractile dysfunction and disturbances in Ca2+ transport in the STZ-induced diabetic rat heart.

Diabetogenic Action of Streptozotocin

The general chemical structure of STZ is shown in Figure 1.

Figure 1 Diagram showing the chemical structure of streptozotocin.

Figure 1 Diagram showing the chemical structure of streptozotocin.

STZ is an antimicrobial agent which has also been used as a chemotherapeutic alkylating agent [19,20]. STZ is typically administered dissolved in a citrate buffer by either intraperitoneal or intravenousinjection. Once in the blood circulation, STZ travels to the pancreas where it selectively accumulates in pancreatic beta cells via the low-affinity GLUT2 glucose transporter in the plasma membrane. It should be noted that STZ is also able to damage other organs that express GLUT2 including the kidney and the liver [21,22]. It is generally believed that the toxicity of STZ is dependent upon the DNA alkylating activity of its methylnitrosourea moiety and methylation of the DNA molecule. Transfer of the methyl group from STZ to the DNA molecule causes damage and fragmentation of the DNA. Beta cell toxicity might also arise from the action of reactive oxygen species [1,23]. Whatever the mechanism(s) of action, the consequences of STZ treatment are damage to the beta islet cells of the pancreas and a reduction in the ability of these cells to produce insulin (Figure 2, 3)

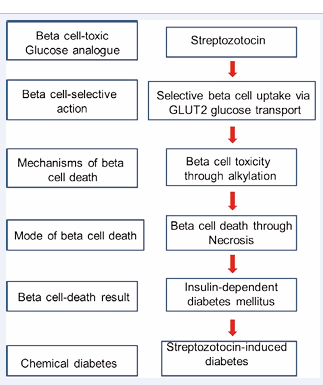

 Figure 2 A schematic diagram showing the toxic effects of streptozotocin in  beta cells. Adapted from Lenzen, 2008(1).

Figure 2 A schematic diagram showing the toxic effects of streptozotocin in beta cells. Adapted from Lenzen, 2008(1).

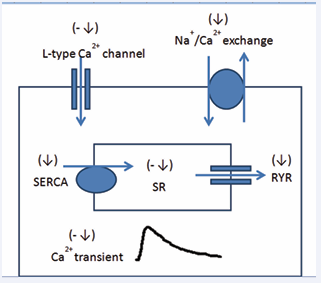

Figure 3 Diagram showing the proposed actions of STZ-induced diabetes on  Ca2+ transport systems in the ventricular  myocyte.  -=No effect, ?=Reduced  activity, ?=Increased activity.

Figure 3 Diagram showing the proposed actions of STZ-induced diabetes on Ca2+ transport systems in the ventricular myocyte. -=No effect, ↓=Reduced activity, ↑=Increased activity.

The nature of the pathophysiological effects of STZ depends to a large extent on the dose and duration of treatment.

Blood Chemistry in the Streptozotocin-Induced Diabetic Rat

The general characteristics of the STZ-induced diabetic rat include hypoinsulinemia, hyperglycemia, polyuria, decreased body weight gain, polydipsia and polyphagia [2]. Insulin levels fall dramatically in diabetic rats compared to controls (Table 1).

Tables

Table 1: Blood insulin levels in the streptozotocin-induced diabetic rat

Dose of STZ

(mg/kg body weight)

Treatment time

Insulin level

(Control vs. STZ)

Reference

55 iv

6 w

43.3 vs. 31.3 µU/ml

[44]

65 iv

15, 27 d

31.2 vs. 12.4 15 d, 13.1 27 d µU/ml

[7]

55 ip

7 w

1.08 vs. 0.29 ng/ml

[5]

45-50 ip

7-8 w

1.98 vs. 0.27 ng/ml

[4]

65 iv

8 w

157 vs. 45 pmol/L

[64]

45 ip

8 w

1.2 vs. 0.3 ng/ml

[6]

45

8 w

1.12 vs. 0.3 ng/ml

[37]

60 ip

8-12 w

20.63 vs. 4.80 ng/ml

[2

Due to the falling concentrations of insulin, target organs like the liver and muscle are unable to clear glucose from the blood circulation and blood glucose rises. Following a 45-60 mg/kg body weight injection of STZ in adult rats the blood glucose levels typically rise to an average of 400 mg/dl in STZ treated rats compared to 100 mg/dl in controls (Table 2).

Table 2: Blood glucose levels in the streptozotocin-induced diabetic rat.

Dose STZ (mg/kg body weight)

Treatment time

Glucose level (Control vs. STZ)

Reference

60  ip

3d, 30 d

70 vs. 265, 77 vs. 309 mg/dl

[40]

100 iv

4-6 d

96 vs. 329 mg/dl

[50]

65 ip

5-7 d

270 vs. 529 mg/dL

[51]

60 ip

1 w

128.6 vs. 479.0 mg/dL

[49]

65 iv

7 d

126 vs. 509 mg/dL

[52]

65 iv

7 d

6.9 vs. 27 mmol/L

[27]

65 iv

15 d,27 d

130 vs. 388 15 d, 130 vs. 435 27 d mg/dL

[7]

40 ip

28 d

3.40 vs.28.78 mmol/l

[36]

40 iv

3-4 w

10.3 vs. 40.4 mM

[61]

40 ip

4 w

3.40 vs. 28.78 mmol/L

[36]

50 ip

4-5 w

10.08 vs. 48.05 mmol/L

[56]

60 iv

4-6 w

163.2 vs. 511.3 mg/dL

[60]

50 iv

4-7 w

217 vs. 529 mg/dL

[55]

60 ip

4-10 w

92.4 vs. 407.5 mg/dL

[16]

60 ip

4 w,24 w

76 vs. 292, 66 vs. 252 mg/dl

[3]

50 ip

5 w

101 vs. 458 mg/dL

[57]

50 ip

5 w

105 vs. 421 mg/dL

[17]

55 iv

6 w

6.2 vs. 19.1 mmol/L

[44]

55 iv

7 w

94 vs. 333 mg/dL

[26]

55 ip

7 w

4.9 vs. 21.2 mmol/L

[5]

45-50 ip

7-8 w

7.2 vs. 22.8 mmol/L

[4]

60 ip

8 w

104.06 vs. 469.64 mg/dl

[65]

60 ip

8 w

98.00 vs. 440.38 mg/dl

[66]

45

8 w

5.2 vs. 22.6 mmol

[37]

60 ip

8 w

70.1 vs. 307.2 mg/dl

[48]

65 iv

8 w

180 vs. 546 mg/dl

[64]

55

8 w

105 vs. 344 mg/dl

[50]

45

8 w

5.2 vs. 22.6 mmol/L

[37]

55 iv

8 w

110 vs. 348 mg/dL

[45]

50 ip

8 w

116.6 vs. 386.8 mg/dL

[41]

45 iv

8 w

6.2 vs. 20.8 mmol/L

[6]

60 iv

8 w

4.7 vs. 30.8 mmol/L

[30]

65 iv

8 w

155 vs. 473 md/dL

[35]

60 ip

8w

70.1 vs. 307.2 mg/dL

[48]

60 ip

8-12 w

69.4 vs. 322.5 mg/dl

[43]

60 ip

8-12 w

92.4 vs. 407/5 mg/dl

[29]

60 ip

8-12 w

71.83 vs. 308.23 mg/dl

[47]

60 ip

8-12 w

78.3 vs. 366.7 mg/dL

[28]

60 ip

8-12 w

70.0 vs. 331.5 mg/dL

[46]

60 ip

8-12 w

71.83 vs. 308.23 mg/dL

[47]

60 ip

8-12 w

92.4 vs. 407.5 mg/dL

[29]

60 ip

8-12 w

68.0 vs. 347.4 mg/dL

[10]

60 ip

8-12 w

69.4 vs. 322.5 mg/dL

[43]

60 ip

9 w

70.50 vs. 260.17 mg/dL

[59]

60 ip

9 w

90.21 vs. 529.21 mg/dL

[38]

60 ip

12 w

7.57 vs. 19.47 mmol/L

[39]

60 ip

12 w

90.5 vs. 455.0 mg/dL

[11]

60 ip

13-24 w

110 vs. 554 mg/dl

[49]

Urine glucose is also elevated in diabetic rats [24] compared to controls. Persistently elevated levels of glucose in the blood of diabetic rats causes glycosylation of hemoglobin and glycosylated hemoglobin is a widely used diagnostic criterion for DM (Table 3)

Table 3: Glycosylated hemoglobin in the streptozotocin-induced diabetic rat.

Dose STZ (mg/kg body weight)

Treatment time

Glucose level (Control vs. STZ)

Reference

45-50 ip

7-8 w

3.9 vs. 8.3 %

[4]

55 ip

7 w

4.1 vs. 8.4 %

[5]

45 iv

8 w

3.3 vs. 8.3 %

[6]

45

8 w

4.3 vs. 8.9 %

[37]

 Glycosylated hemoglobin can rise to an average of 8.5% in diabetic rats compared to 4.0 % in controls (Table 3). Alterations in lipid profile including increased cholesterol [7], increased free fatty acids [7], increased atrial and brain natriuretic peptides[10,25], reduced insulin-like growth factor-1 and triiodothyronine [7,26], increased creatine [27], and increased blood osmolarity also occur in diabetic animals compared to controls [28,29].

Body and Heart Weight in the Streptozotocin-Induced Diabetic Rat

Body weight gain is typically reduced in diabetic rats compared to controls (Table 4).

Table 4: Body weight in the streptozotocin-induced diabetic rat.

Dose STZ (mg/kg body weight)

Treatment time

Body weight

(Control vs. STZ)

Reference

100 iv

4-6 d

237 vs. 190 g

[50]

65 ip

5-7 d

370 vs. 269 g

[8]

65 ip

5-7 d

370 vs. 269 g

[51]

60 ip

7 d

282.1 vs. 237.2 g

[49]

65 iv

7 d

334.4 vs. 285.5 g

[27]

65 iv

7 d

351 vs. 279 g

[52]

40 ip

28 d

265 vs. 202 g

[36]

60 ip

30 d

314 vs. 238 g

[40]

50 ip

4-5 w

256.32 vs. 186.12 g

[56]

60 iv

4-6 w

420 vs. 239 g

[60]

50 iv

4-7 w

425 vs. 233 g

[55]

60 ip

4-10 w

385.4 vs. 233.8 g

[16]

60 ip

4, 24 w

305 vs. 248, 410 vs. 308 g

[3]

50 ip

5 w

240.2 vs. 196.8 g

[17]

50 ip

5 w

249.2 vs. 197.8 g

[57]

55 iv

6 w

448 vs. 335 g

[44]

55 iv

7 w

434 vs. 293 g

[26]

55 ip

7 w

366.6 vs. 270.6 g

[5]

45-50 ip

7-8 w

416.5 vs. 329.8 g

[4]

60 ip

8 w

352.25 vs. 267.57 g

[65]

60 ip

8 w

351.05 vs. 259.05 g

[66]

45

8 w

393.0 vs. 289.1 g

[37]

60 ip

8 w

312.0 vs. 229.1 g

[48]

65 iv

8 w

467 vs. 258 g

[64]

55 iv

8 w

380 vs. 285 g

[50]

55 iv

8 w

411 vs. 310 g

[45]

45 iv

8 w

422.5 vs. 312.8 g

[6]

60 iv

8 w

438 vs. 247 g

[30]

65 iv

8 w

462 vs.270 g

[35]

60 ip

8-12 w

304.3 vs. 221.1 g

[43]

60 ip

8-12 w

381.4 vs. 232.8 g

[29]

60 ip

8-12 w

326.83 vs. 226.23 g

[47]

60 ip

8-12 w

269.1 vs. 209.9 g

[46]

60 ip

8-12 w

300.6 vs. 224.0 g

[10]

60 ip

8-12 w

307.1 vs. 232.8 g

[28]

60 ip

9 w

351.20 vs. 198.80 g

[38]

60 ip

9 w

285.33 vs. 229.33 g

[59]

60 ip

12 w

589.83 vs. 256 g

[39]

60 ip

12 w

361.5 vs. 255.8 g

[11]

60 ip

13-24 w

426 vs. 266 g

[49]

Heart weight is typically reduced but may occasionally be unaltered in diabetic rats (Table 5).

Table 5: Heart weight in the streptozotocin-induced diabetic rat.

Dose STZ (mg/kg body weight)

Treatment time

Heart weight

(Control vs. STZ)

Reference

65 ip

5-7 d

1.10 vs. 0.92 g

[8]

65 ip

5-7 d

1.10 vs. 0.92 g

[51]

65 iv

7 d

1.10 vs. 0.90 g

[52]

50 iv

4-7 w

1.35 vs. 0.88 g

[55]

60 ip

4-10 w

1.1 vs. 1.0 g

[16]

50 ip

5 w

4.04 vs. 4.08 mg/g

[57]

55 iv

7 w

1.85 vs. 1.37 g

[26]

55 ip

7 w

1.2 vs. 1.0 g

[5]

45-50 ip

7-8 w

1.25 vs. 0.97 g NSD

[4]

60 ip

8 w

1.2 vs. 1.06 g

[65]

60 ip

8 w

1.18 vs. 1.05 g

[66]

55 iv

8 w

1.54 vs. 1.29 gNSD

[45]

45 iv

8 w

1.3 vs. 1.0 g

[6]

60 iv

8 w

1.60 vs. 1.24 g

[30]

65 iv

8 w

1.04 vs. 0.74 g

[35]

60 ip

8-12 w

1.17 vs. 1.01 g

[43]

60 ip

8-12 w

1.1 vs. 1.0 g

[29]

60 ip

8-12 w

1.25 vs. 0.99 g

[47]

60 ip

8-12 w

1.17 vs. 1.04 g

[46]

60 ip

8-12 w

1.25 vs. 1.02 g

[10]

60 ip

8-12 w

1.21 vs. 1.04 g

[28]

60 ip

9 w

1.86 vs. 1.00 g

[38]

60 ip

12 w

780 vs. 595.1 mg

[39]

60 ip

12 w

1.13 vs. 0.96 g

[11]

60 ip

13-24 w

1.33 vs. 1.05 g

[49]

NSD=No significant difference

Heart weight to body weight ratio is generally increased indicating a sign of hypertrophy but may also be unaltered in diabetic rats compared to controls (Table 6).

Table 6: Heart weight to body weight ratio in the streptozotocin-induced diabetic rat.

Dose STZ (mg/kg body weight)

Treatment time

Heart weight to body weight ratio (Control vs. STZ)

Reference

65 ip

    1. d

3.05 vs. 3.03 mg/g NSD

[8]

65 ip

5-7 d

3.03 vs. 3.05 mg/gNSD

[51]

65 iv

7 d

3.12 vs. 3.21 mg/g

[52]

50 iv

4-7 w

3.16 vs. 3.81 mg/g

[55]

55 iv

7 w

4.33 vs. 5.23 mg/gNSD

[26]

55 ip

7 w

3.3 vs. 3.7 mg/g

[5]

60 ip

8 w

3.42 vs. 4.00 mg/g

[65]

60 ip

8 w

3.38 vs. 4.11 mg.g

[66]

55 iv

8 w

3.74 vs. 4.16 mg/g

[45]

45 iv

8 w

3.1 vs. 2.9 mg/gNSD

[6]

60 iv

8 w

3.7 vs. 5.3 mg/g

[30]

65 iv

8 w

2.25 vs. 2.74 mg/g

[35]

60 ip

8-12 w

4.41 vs. 5.04 mg/g

[46]

60 ip

8-12 w

4.28 vs. 4.71 mg/gNSD

[10]

60 ip

9 w

5.43 vs. 5.07 mg/gNSD

[38]

60 ip

12 w

3.13 vs. 3.78 mg/g

[11]

60 ip

13-24 w

3.14 vs. 3.97 mg/g

[49]

NSD=No significant difference

Other studies have reported unaltered heart weight to tibial length [30], reduced left ventricle weight [31,32] and increased left ventricle to body weight ratio [33] in diabetic rats compared to controls. These data provide evidence of cardiac hypertrophy in the STZ-induced diabetic rat.

Hemodynamic Function In vivo and in the Isolated Perfused Heart of the Streptozotocin-Induced Diabetic Rat

Measures of hemodynamic function are shown in Table 7. Echocardiographic and other techniques have generally reported reduced heart rate [3-6,32,34,35,35-38] but sometimes unaltered heart rate [7,39] in diabetic rats compared to controls (Table 7)

Table 7: In vivoventricular function in the streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

HR

60 ip

10 d

348 vs. 255 bpm

[40]



65 iv

24, 27 d

412 vs. 376 bpm, 412 vs. 362 bpm

[7]



40 ip

28 d

388.63 vs. 339.50 bpm NSD

[36]



60 ip

4, 22 w

347 vs. 268,316 vs. 266 bpm

[3]



55 ip

7 w

416.5 vs. 304.8 bpm

[5]



45-50 ip

7-8 w

401.5 vs. 320.8 bpm

[4]



60 iv

8 w

390 vs. 311 bpm

[30]



45 iv

8 w

370.2 vs. 283.9 bpm

[6]



50  ip

8 w

318.24 vs. 243.80 bpm

[32]



45

8 w

382 vs. 291 bpm

[37]



65 iv

8 w

357 vs. 283 bpm

[35]



60 ip

9 w

346 vs. 267 bpm

[38]



55 iv

12 w

346 vs. 264 bpm

[9]



60 ip

12 w

420 vs. 388 bpm NSD

[39]

CO

55 ip

7 w

127.0 vs. 94.5 ml/min

[5]



45-50 ip

7-8 w

128.4 vs. 93.0 ml/min

[4]



45 iv

8 w

118.7 vs. 82.3 ml/min

[6]

SV

55 ip

7 w

0.31 vs. 0.31 ml NSD

[5]



45-50 ip

7-8 w

0.32 vs. 0.29 ml

[4]



45 iv

8 w

0.32 vs. 0.29 ml NSD

[6]

EF

55 ip

7 w

84.1 vs. 76.5%

[5]



45-50 ip

7-8 w

84.06 vs. 71.8%

[4]



50 ip

8 w

NSD

[41]



45 iv

8 w

83.5 vs. 72.5%

[6]



50 ip

8 w

84.4 vs. 67.8%

[32]



45

8 w

85 vs. 70%

[37]



60 ip

9 w

77.33 vs. 64.80%

[38]



60 ip

12 w

76.1 vs. 67.7%

[39]

FS

55 ip

7 w

61.7 vs. 51.9%

[5]



45-50 ip

7-8 w

60.6 vs. 52.9%

[4]



45 iv

8 w

60.9 vs. 49.3%

[6]



50 ip

8 w

55.7 vs. 39.6%

[32]



45

8 w

61 vs. 51%

[37]



60 ip

9 w

41.0 vs. 30.8%

[38]



60 ip

12 w

45.4 vs. 37.6%

[39]

LVSP

65 iv

21, 24, 27 d

150 vs.136 mmHg 21 d,150 vs. 131 mmHg 24 d,150 vs. 122 mmHg 27 d

[7]



40 ip

28 d

136.87 vs. 106.32 mmHg

[36]



55 ip

7 w

Reduced

[5]



45

8 w

130 vs. 104 mmHg

[37]



65 iv

8 w

151 vs. 123 mmHg

[35]

LVDP

65 iv

21, 24, 27 d

2.3 vs. 8.6 mmHg 21 d,9.6 mmHg 24 d,9.8 mmHg 27 d

[7]



65 ip

21 d

Increased

[42]



40 ip

28 d

2.38 vs. 6.30 mmHg

[36]



60 ip

8 w

Increased

[33]



45

8 w

0.6 vs. 4.8 mmHg

[37]



65 iv

8 w

3 vs. 19 mmHg

[35]



60 ip

12 w

Increased

[39]

LVPD (+dP/dt)

65 iv

21, 24, 27 d

Reduced

[7]



40 ip

28 d

5.71 vs. 3.12 mmHg/ms

[36]



60 ip

8 w

Reduced

[33]



60 ip

8 w

Reduced

[31]



5 ip

8 w

Reduced

[5]



45

8 w

9753 vs. 5176 mmHg/sec

[37]



65 iv

8 w

6137 vs. 4332 mmHg/sec

[35]



60 ip

12 w

Reduced

[39]

LVPR (-dP/dt)

65 iv

21, 24, 27 d

Reduced

[7]



40 ip

28 d

-4.91 vs. -2.66 mmHg/ms

[36]



55 ip

7 w

Reduced

[5]



60 ip

8 w

Reduced

[33]



60 ip

8 w

Reduced

[31]



45 ip

8 w

9088 vs. 4723 mmHg/sec

[37]



65 iv

8 w

5415 vs. 3610 mmHg/sec

[35]



60 ip

12 w

Reduced

[39]

LVRT

60 ip

8 w

Longer

[31]

LVEDD

55 ip

7 w

6.28 vs. 6.91

[5]



45-50 ip

7-8 w

6.58 vs. 6.70 mm NSD

[4]



45 iv

8 w

2.6 vs. 3.6 mm

[6]



60 ip

12 w

11.67 vs. 7.5 mm

[39]



55 iv

12 w

6.73 vs. 6.86 mm NSD

[9]

LVESD

55 ip

7 w

2.66 vs. 3.35

[5]



45-50 ip

7-8 w

2.67 vs. 3.234 mm NSD

[4]



60 ip

12 w

5.84 vs. 4.1 mm

[39]



55 iv

12 w

2.52 vs. 2.86 mm NSD

[9]

IVRT

50 ip

8 w

Increased

[32]



55 iv

12 w

Longer

[9]

IVCT

60 ip

8 w

Longer

[31]

BP

55 iv

8 w

110 vs. 105 mmHg NSD

[45]

HR=Heart rate, CO=Cardiac output, SV=Stroke volume, EF=Ejection fraction, FS=Fractional shortening, LVSP=Left ventricular systolic pressure, LVDP=Left ventricular diastolic pressure, LVPR=Left ventricular rate of pressure relaxation, LVRT=Left ventricle relaxation time, LVEDD=Left ventricular end-diastolic dimension, LVESD=Left ventricular end-systolic dimension, IVRT=Isovolumic relaxation time, IVCT=Isovolumic contraction time, BP=Blood pressure.NSD=No significant difference

. Associated with the changes in heart rate electrophysiological measurements of QRS, QT, PQ and PR intervals are generally prolonged [4,5,35,40] and sometimes unaltered [3,35,40] in diabetic rats compared to controls. Cardiac output may either be reduced or unaltered [4-6], stroke volume may be reduced or unaltered [4-6] and ejection fraction was generally reduced [5,6,32,37-39] but may also be unaltered [41] in diabetic rats compared to controls. Percentage fractional shortening was reduced [4-6,32,37-39] in diabetic rat. Left ventricular systolic pressure was reduced [33,35,36,39,42] and left ventricular diastolic pressure was increased [33,35-37,39,42] in diabetic rats compared to controls. Rates of pressure development and decline were lower [5,31,33,35-37,39] in diabetic rat. In the isolated perfused heart the spontaneous heart rate was lower [9,43], rates of pressure development and decline were lower [9] and the time to peak (TPK) and half relaxation (THALF) of pressure were prolonged [9] in diabetic rat heart. Collectively, these in vivo and in vitro experiments provide evidence of disturbances in hemodynamic function including heart rate, left ventricular systolic and diastolic pressure, rate of pressure development and decline, and cardiac output in the STZ-induced diabetic rat heart compared to controls.

Contraction in Ventricular Myocytes from Streptozotocin-Induced Diabetic Rat

The characteristics of ventricular myocyte contraction are shown in Table 8.

Table 8: Contraction in ventricular myocytes from streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

CV

60 ip

4-10 w

49.4 vs. 25.3%

[16]



55 iv

6 w

79.4 vs. 70.4%

[44]



45-50 ip

7-8 w

70 vs. 55%

[4]



60 ip

8-12 w

49 vs. 25%

[29]



55 iv

12 w

69 vs. 60 % NSD

[9]

RCL

100 iv

4-6 d

110 vs. 109 µm NSD

[50]



65 ip

5-7 d

129 vs. 108 µm

[8]



65 ip

5-7 d

127 vs. 113 µm

[51]



65 iv

7 d

95 vs. 103 µm

[52]



65 iv

7 d

128.9 vs. 113.9 µm LV

[27]



40 iv

3-4 w

126.4 vs. 121.7 µm NSD

[61]



55 ip

7 w

110.7 vs. 117.8 µm LV NSD

[5]



45-50 ip

7-8 w

112.30 vs. 112.83 µm NSD

[4]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



55 iv

8 w

111 vs. 110 µm NSD

[50]



55 iv

8 w

NSD

[45]



60 ip

8-12 w

NSD

[29]



60 ip

8-12 w

131.49 vs. 122.48 µm

[47]



60 ip

8-12 w

117 vs. 113 µm NSD

[46]



60 ip

8-12 w

131.49 vs. 122.48 µm

[47]



60 ip

8-12 w

117 vs. 123 µm NSD

[10]



60 ip

8-12 w

126 vs. 125 µm NSD

[43]



60 ip

8-12 w

NSD

[28]



60 ip

12 w

124.5 vs. 124.4 µm EPI NSD, 119.9 vs 121.7 ENDO NSD LV

[11]



60 ip

13-24 w

138.80 vs. 136.93 µm NSD

[49]



60 ip

20 w

134.88 vs. 134.94 µm NSD

[48]

TPK Shortening

100 iv

4-6 d

0.1-2.0 Hz NSD

[50]



65 ip

5-7 days

117 vs. 131 ms

[8]



65 ip

5-7 days

119 vs. 181 ms

[51]



65 iv

7 days

103.3 vs. 97.3 ms NSD

[52]



55 iv

7 w

Prolonged

[26]



60 ip

8 w

NSD

[66]



55 iv

8 w

0.1-2.0 Hz Prolonged

[50]



55 iv

8 w

Prolonged

[45]



60 ip

8-12 w

305 vs. 360 ms

[10]



60 ip

8-12 w

105.5 vs. 137.2 ms

[67]



60 ip

8-12 w

94 vs. 113 ms

[46]



60 ip

8-12 w

103 vs. 135 ms

[47]



60 ip

8-12 w

99 vs. 136 ms

[29]



60 ip

8-12 w

73 vs. 100 ms

[43]



60 ip

8-12 w

Prolonged

[28]



55 iv

12 w

Prolonged

[9]



60 ip

12 w

83 vs. 107 ms EPI, 90 vs. 110 ms ENDO

[11]



60 ip

13-24 w

97.4 vs. 123.5 ms

[49]



60 ip

20 w

98.1 vs. 112.1 ms

[48]

THALF relaxation of shortening

100 iv

4-6 d

Prolonged

[50]



55 ip

7 w

285.9 vs. 445.8 ms NSD

[5]



45-50 ip

7-8 weeks

382.60 vs. 472.52 ms

[4]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



55 iv

8 w

Prolonged

[50]



60 ip

8-12 w

NSD

[10]



60 ip

8-12 w

46.5 vs. 48.6 ms NSD

[67]



60 ip

8-12 w

NSD

[29]



60 ip

8-12 w

NSD

[68]



60 ip

8-12 weeks

41 vs. 51 ms

[46]



60 ip

8-12 weeks

37 vs. 48 ms

[43]



60 ip

8-12 w

NSD

[28]



55 iv

12 w

Prolonged

[9]



60 ip

12 w

51 vs. 59 ms EPI NSD, 51 vs. 59 ms ENDO

[11]



60 ip

13-24 w

55.7 vs. 61.1 ms NSD

[49]



60 ip

20 w

54.7 vs. 53.8 ms NSD

[48]

Time to 90% relaxation of shortening

65 ip

5-7 d

143 vs. 160 ms

[8]



65 ip

5-7 days

141 vs. 184 ms

[51]



65 iv

7 days

104.9 vs 138.5 ms

[52]

Tau relaxation

55 iv

7 w

Prolonged

[26]



55 iv

8 w

Prolonged

[45]



55 iv

12 w

Prolonged

[9]

Velocity of shortening (+dL/dt)

100 iv

4-6 days

0.5-2.0 Hz Slowed

[50]



65 iv

7 d

58 vs 58 µm/s NSD

[52]



55 iv

7 w

Reduced

[26]



55 ip

7 w

132.2 vs. 75.0 µm/s

[5]



45-50 ip

7-8 w

159.44 vs. 74.91 µm/s

[4]



55 iv

8 w

0.1-2.0 Hz Slowed

[50]



55 iv

8 w

NSD

[45]



45

8 w

228.6 vs. 89.9 µm/s

[37]



55 iv

12 w

Lower

[9]

Velocity of relengthening    (-dL/dt)

100 iv

4-6 d

0.1-2.0 Hz Slowed

[50]



65 iv

7 d

-54 vs. -52 µm/s NSD

[52]



55 iv

7 w

Reduced

[26]



55 ip

7 w

117.9 vs. 60.9 µm/s

[5]



45-50 ip

7-8 w

111.56 vs. 65.21 µm/s

[4]



55 iv

8 w

0.1-2.0 Hz Slowed

[50]



55 iv

8 w

NSD

[45]



45

8 w

186.5 vs. 77.1 µm/s

[37]



55 iv

12 w

Lower

[9]

AMP of shortening

100 iv

4-6 d

0.1 – 2.0 Hz NSD

[50]



65 ip

5-7 d

7.5 vs. 8.1% NSD

[8]



65 ip

5-7 d

7.5 vs. 6.7% NSD

[51]



65 iv

7 d

5.69 vs. 5.51 %

[52]



65 iv

7 d

9.6 vs. 7.2 (0.5 Hz), 9.7 vs. 8.7 % (2 Hz) NSD

[27]



55 ip

7 w

11.4 vs. 8.4 µm

[5]



55 iv

7 w

Reduced

[26]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



45

8 w

14.3 vs. 9.6 %

[37]



55 iv

8 w

NSD

[45]



55 iv

8 w

0.1-2.0 Hz Reduced

[50]



60 ip

8-12 w

NSD

[43]



60 ip

8-12 w

9.3 vs. 9.6 % NSD

[10]



60 ip

8-12 w

NSD

[67]



60 ip

8-12 w

NSD

[29]



60 ip

8-12 w

NSD

[47]



60 ip

8-12 w

NSD

[46]



60 ip

8-12 weeks

9.3 vs. 9.6 % NSD

[10]



60 ip

8-12 w

NSD

[28]



55 iv

12 w

Lower

[9]



60 ip

12 w

6.0 vs. 6.1 %   EPI NSD, 6.3  vs. 6.2 %  ENDO NSD

[11]



60 ip

13-24 w

7.29 vs. 7.32 % NSD

[49]



60 ip

20 w

7.15 vs. 7.41 % NSD

[48]

CV=Cell viability, RCL=Resting cell length, TPK=Time to peak, THALF=Time to half, AMP=Amplitude.NSD=No significant difference

Generally, ventricular myocytes are isolated from heart using a combination of enzymatic and mechanical dispersal techniques [9,16]. The viability, calculated as the percentage of rod shaped compared to round shaped myocytes, was generally lower [4,16,29,44] in myocytes isolated from diabetic rats compared to controls. Resting cell length was generally unaltered [4,5,10,11,28,43,45-49], but sometimes reduced [27] in ventricular myocytes from diabetic rats compared to controls. Cell width was either unaltered [28] or reduced [27], cell thickness was unaltered [27], surface area was increased [10] and calculated cell volume may be unaltered [28] or reduced [27] in myocytes from diabetic rats compared to controls. A recent study reported unaltered length in epicardial (EPI) and endocardial (ENDO) ventricular myocytes from diabetic rat [11]. The time course of shortening was prolonged [4,5,8-11,26,28,29,43,45-51] and the time course for half relaxation was either prolonged [4,5,8,9,11,26,43,45,46,50- 52] or unaltered [10,28,29,47-49] in myocytes from diabetic rats compared to controls. A recent study reported prolonged TPK shortening in EPI and ENDO myocytes and prolonged THALF relaxation of shortening in ENDO but not in EPI left ventricular myocytes from STZ-induced diabetic rat [11]. Rate of development of shortening may be reduced [4,5,9,26,37] or unaltered [45,52] and the rate of decline of shortening may also be reduced [4,5,9,26,37] or unaltered [45,52] in myocytes from diabetic rats compared to controls. Amplitude of shortening may be reduced [4,5,9,26,27,37] or unaltered [8,10,11,28,29,43,45-49] in myocytes from diabetic rat. Increasing frequency of stimulation produces a negative staircase effect that was unaltered in myocytes from STZ- induced diabetic rat compared to control [26,45]. Spontaneous contractions (arrhythmic contractions) were increased in myocytes from diabetic rat [2]. Experiments in sarcomeres have reported reduced fractional shortening, decreased maximal rate of shortening and re-lengthening in diabetic rats compared to controls [31]. Collectively, these experiments provide evidence of disturbances in the time course of shortening, relaxation of shortening, and amplitude of shortening in ventricular myocytes from STZ-induced diabetic rats compared to age-matched healthy controls.

Excitation-Contraction Coupling in Ventricular Myocyte

The arrival of an action potential at a ventricular myocyte causes depolarization of the myocyte plasma membrane and opening of L-type Ca2+ channels. A small entry of Ca2+ through the Ca2+ channels triggers a large release of Ca2+ from the SR via the SR Ca2+ release channels (Ryanodine receptors). There is a transient rise in intracellular Ca2+ concentration, which binds to troponin C and triggers and regulates the process of myocyte contraction. The process of myocyte relaxation takes place when Ca2+ is pumped back into the SR via the SERCA pump and extruded from the myocyte, primarily via the Na+ /Ca2+ exchanger, and also to lesser extents via the plasma membrane Ca2+ ATPase [12-14]. Alterations in intracellular [Ca2+]i and the mechanisms that control intracellular [Ca2+]i including L-type Ca2+ current, SR Ca2+ transport and Na+ /Ca2+ exchange might partly underlie the disturbances reported in myocyte shortening.

Calcium Transport in Ventricular Myocytes from the Streptozotocin-Induced Diabetic Rat

The effects of STZ-induced diabetes on intracellular Ca2+ are shown in Table 9.

Table 9: Intracellular calcium in ventricular myocytes from streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

Resting fluorescence ratio or calcium

100 iv

4-6 d

1.72 vs. 1.59 RU NSD

[50]



65 ip

5-7 d

1.04 vs. 0.98 RU NSD

[51]



65 ip

5-7 d

1.04 vs. 1.01 RU NSD

[8]



65 iv

7 d

1.00 vs. 0.90 RU

[52]



40 iv

3-4 w

Reduced

[15]



45 iv

4-6 w

0.306 vs. 0.327 RU NSD

[18]



50 ip

5 w

Increased

[17]



50 ip

5 w

0.41 vs. 0.49 RU

[57]



55 iv

6 w

79 vs. 79 nM NSD

[44]



55 ip

7 w

83.1 vs. 119.1 nM RU LV

[5]



55 iv

7 w

Reduced

[26]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



60 ip

8-12 w

1.13 vs. 1.08 RU

[47]



60 ip

8-12 w

2.10 vs. 2.31RU

[10]



60 ip

8-12 w

2.29 vs. 2.40 RU

[43]



60 ip

8-12 w

NSD

[28]



55 iv

12 w

44 vs. 48 nM

[9]



60 ip

12 w

0.71 vs. 0.69 EPI NSD, 0.73 vs. 0.73 ENDO NSD LV

[11]



60 ip

13-24 w

1.19 vs. 1.15 RU NSD

[49]



65 ip

14 w

Reduced

[54]



60 ip

20 w

1.13 vs. 1.17 RU NSD

[48]

Rate of Ca rise (+dP/dt)

55 ip

7 w

78.8 vs. 12.4 f.u/s LV

[5]



45-50 ip

7-8 w

39.4 vs. 9.8 f.au/s

[4]



45 iv

8 w

98.7 vs. 72.2 f.au/s

[6]



45

8 w

90.7 vs. 70.7 f.au/s

[37]



55 iv

12 w

Lower

[9]

Rate of Ca decline (-dP/dt)

55 ip

7 w

3.0 vs. 0.6 s-1 LV

[5]



45-50 ip

7-8 w

3.7 vs. 1.2 s-1

[4]



45

8 w

280.5 vs. 710.0 f.au/ms

[37]



55 iv

12 w

Lower

[9]

TPK Ca transient

50 ip

4-5 w

Longer

[56]



60 ip

4-8 w

NSD

[16]



50 ip

5 w

Prolonged

[17]



50 ip

5 w

180 vs. 260 ms

[57]



45-50 ip

7-8 w

65.0 vs. 200.2 ms

[4]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



60 ip

8-12 w

NSD

[43]



60 ip

8-12 w

NSD

[10]



60 ip

8-12 w

NSD

[67]



60 ip

8-12 w

NSD

[29]



60 ip

8-12 w

64.1 vs. 74.3 ms NSD

[47]



60 ip

8-12 w

Prolonged

[28]



60 ip

9 w

NSD

[38]



55 iv

12 w

Prolonged

[9]



60 ip

12 w

56.2 vs. 64.2 EPI ms NSD, 60.6 vs. 71.3 ms ENDO LV

[11]



60 ip

13-24 w

63.5 vs. 76.9 ms

[49]



60 ip

20 w

65.5 vs. 76.9 ms NSD

[48]











THALF decay Ca transient

65 ip

5-7 days

130 vs. 170 ms

[8]



40 iv

3-4 w

108 vs. 139 ms

[15]



50 ip

4-5 w

Longer

[56]



60 ip

4-8 w

91.8 vs. 166.5 ms

[16]



50 ip

5 w

Prolonged

[17]



50 ip

5 w

500 vs. 640 ms LV

[57]



50 ip

7 w

231.5 vs. 1076.1 ms LV

[5]



45-50 ip

7-8 w

193.2 vs. 742.6 ms

[4]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



45 iv

8 w

260.5 vs. 699.1 ms

[6]



60 ip

8-12 w

NSD

[43]



60 ip

8-12 w

104.8 vs. 148.4 ms

[67]



60 ip

8-12 w

Prolonged

[29]



60 ip

8-12 w

NSD

[47]



60 ip

8-12 w

215 vs. 267 ms

[10]



60 ip

8-12 w

Prolonged

[28]



60 ip

9 w

Prolonged

[38]



55 iv

12 w

Longer

[9]



60 ip

12 w

189.6 vs. 197.5 ms EPI NSD, 150.3 vs 189.1 ms ENDO LV

[11]



60 ip

13-24 w

118.4 vs. 160.3 ms

[49]



60 ip

20 w

115.4 vs. 159.9 ms

[48]

Tau Ca transient

100 iv

4-6 d

0.5 & 1.0 Hz Increased

[50]



40 iv

3-4 w

89.6 vs. 105.2 ms

[15]



55 iv

7 w

Elevated

[26]



50 ip

8 w

Longer

[32]



55 iv

12 w

Longer

[9]

Fluorescence decay time

65 ip

5-7 d

141 vs. 223 ms

[51]



65 iv

7 d

248 vs. 320 ms

[52]



65 ip

14 w

34 vs. 47 ms

[54]

AMP Ca transient

100 iv

4-6 d

2.00 vs. 1.77 RU

[50]



65 iv

7 d

0.5 Hz 4.78 vs. 4.03 FU

2.0 Hz 3.64 vs. 3.50 FU NSD

[27]



40 iv

3-4 w

Decreased

[15]



50 ip

4-5 w

Decreased

[56]



45 iv

4-6 w

0.377 vs. 0.399 RU NSD

[18]



60 ip

4-8 w

NSD

[16]



50 ip

5 w

Reduced

[17]



50 ip

5 w

0.35 vs. 0.23 AU

[57]



55 iv

7 w

Reduced

[26]



55 ip

7 w

3.0 vs. 1.1 f.u LV

[5]



45-50 ip

7-8 w

2.3 vs. 1.1 f.au

[4]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



50 ip

8 w

Decreased

[32]



50 ip

8 w

1.82 vs. 1.46 RU

[41]



45 iv

8 w

4.4 vs. 3.0 fu

[6]



45

8 w

6.1 vs. 3.8 f.au

[37]



60 ip

8-12 w

NSD

[43]



60 ip

8-12 w

NSD

[67]



60 ip

8-12 w

NSD

[29]



60 ip

8-12 w

NSD

[47]



60 ip

8-12 w

NSD

[46]



60 ip

8-12 w

0.29 vs. 0.39 RU

[10]



60 ip

8-12 w

NSD

[28]



60 ip

9 w

Reduced

[38]



55 iv

12 w

Lower

[9]



60 ip

12 w

0.17 vs. 0.18 EPI NSD, 0.20 vs. 0.19 RU ENDO NSD LV

[11]



60 ip

13-24 w

0.42 vs. 0.43 RU NSD

[49]



65 ip

14 w

0.25 vs. 0.21 RU

[54]



60 ip

20 w

0.39 vs. 0.47 RU NSD

[48]

RU=Ratio Units, AU=Arbitrary Units, FU=Fluorescence Units, TPK=Time to peak, THALF=Time to half, AMP=Amplitude.NSD=No significant difference

Resting [Ca2+]i was generally unaltered [8,9,11,18,28,43,44,47-49,51,53] but sometimes reduced [15,26,44,52,52,54] in ventricular myocytes from diabetic rats compared to controls. A recent study reported unaltered resting Ca2+ in EPI and ENDO myocytes in EPI and ENDO left ventricular myocytes from STZ-induced diabetic rats compared to controls [11]. TPK Ca2+ transient was either prolonged [9,17,28,49,55,56] or unaltered [10,16,29,38,43,47,48] in myocytes from diabetic rats. THALF decay of the Ca2+ transient was generally prolonged [4-6,8-10,16,17,26,28,29,38,48-52,54-57] in myocytes from diabetic rats compared to controls. A recent study reported prolonged TPK Ca2+ transient and prolonged THALF decay of the Ca2+ transient in ENDO, but not in EPI left ventricular myocytes from STZ-induced diabetic rat [11]. Amplitude of the Ca2+ transient was either unaltered [11,16,18,28,29,43,46- 49,53,55] or lowered[4-6,9,15,17,26,27,31,32,37,38,54,56,57] in ventricular myocytes from diabetic rats. In addition, the rate of Ca2+transient development and decay were lower in ventricular myocytes from STZ-induced diabetic rats compared to controls [4-6,9,37]. Collectively, these experiments provide evidence of disturbances in the time course of development and decay of the Ca2+transient and the amplitude of the Ca2+ transient in ventricular myocytes from STZ-induced diabetic rats compared to controls.

Sarcoplasmic Reticulum Calcium in Ventricular Myocytes from the Streptozotocin-Induced Diabetic R

The effects of STZ-induced diabetes on SR Ca2+ transport are shown in Table 10.

Table 10: Sarcoplasmic reticulum calciumtransport in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

AMP caffeine-evoked Ca transient

40 3-4 w



3-4 w

210.1 vs. 140.8 nM Reduced



[15]





50ip

5 w

0.42 vs. 0.36 AU

[57]



50 ip

5 w

Reduced

[17]



55 6 w

6 w

303 vs. 208 nM. Reduced

[44]



60 ip

6-8 w

25.7 vs. 25.9 % NSD

[16]



55  ip

7 w

Reduced LV

[5]



45-50 ip

7-8 w

0.26 vs. 0.20 RU

[4]



60 ip

8 w

NSD

[66]



60 ip

8-12 w

NSD

[46]



60 ip

8-12 w

NSD

[28]



60 ip

8 w

NSD

[65]



50 ip

8 w

Reduced

[32]



50 ip

8 w

Reduced

[41]



55 iv

12 w

Reduced

[9]



60 ip

12 w

EPI ENDO LV NSD

[11]



65

14 w

0.89 vs. 0.57 RU

[54]

Rate of rise of caffeine-evoked Ca transient

55

7 w

0.014 vs. 0.040 RU/s LV

[5]



45-50 ip

7-8 w

0.058 vs. 0.048 RU/s

[4]



55 iv

12 w

Decreased

[9]

TPK caffeine-evoked Ca transient

60 ip

6-8 w

250.3 vs.330.1 ms NSD

[16]



55 iv

12 w

Prolonged

[9]

Rate of decay of the caffeine-evoked Ca transient

55



6 w

38 vs. 14 nM/sec Decreased



[44]





60 ip

6-8 w

0.73 vs. 0.56 RU/s

[16]



60iv

8 w

NSD

[30]



60 ip

8-12 w

Decreased

[46]



55 iv

12 w

Decreased

[9]

THALF decline of the caffeine-evoked Ca transient

60

6-8 w

91.8 vs. 156.1 ms

[16]



55 ip

7 w

17.31 vs. 8.66 s LV

[5]



45-50 ip

7-8 w

6.70 vs. 11.29 s

[4]



60 ip

8-12 w

Prolonged

[29]



55 iv

12 w

0.52 vs. 1.00 s

[9]

Tau rate of decline of the caffeine-evoked Ca transient

45-50 ip

7-8 w

0.116 vs. 0.065 s-1

[4]



55 iv

12 w

0.54 vs. 1.18 s

[9]

Recovery rate of  electrically-evoked Ca transient after caffeine-evoked Ca transient

40 iv

3-4 w

2.26 vs. 3.15 s NSD

[15]



60 ip

8 w

NSD

[65]



60 ip

8 w

NSD

[66]



60 ip

8-12 w

NSD

[28]



60 ip

8-12 w

Increased

[46]



60 ip

12 w

ENDO EPI LV NSD

[11]

SR fractional Ca release

60 ip

6-8 w

89.7 vs. 83.5 NSD

[16]



60 ip

8 w

NSD

[65]



60 ip

8 w

Increased

[66]



60 ip

8-12 w

NSD

[28]



60 ip

8-12 w

NSD

[46]



60 ip

8-12 w

NSD

[28]



60 ip

12 w

ENDO NSD EPI Decreased  LV

[69]



60

20 w

NSD

[48]

SR Ca uptake

65 iv

15-27 d

Reduced 21-27 d

[7]



55 iv

12 w

0.482 vs. 0.149 µM/s

[9]

SR Ca-stimulated ATPase

65 iv

15-27 d

Reduced 21-27 d

[7]







50 ip

8 w

Decreased

[41]

SR Ca ATPase mRNA

60 ip

8 w

Reduced

[33]

SR Ca ATPase protein (SERCA2)

55 iv

7 w

Reduced

[26]



55

7 w

LV NSD

[5]



60 ip

8 w

Reduced

[33]



50 ip

8 w

Reduced

[41]



50

8 w

Reduced

[32]



45

8 w

NSD

[37]



60 iv

8 w

Reduced

[30]



60 ip

12 w

Reduced

[39]



55 iv

12 w

Reduced

[9]



65 ip

14 w

Reduced

[54]

PLB/PLN protein

55 ip

7 w

NSD LV

[5]



55 iv

7 w

NSD

[26]



50 ip

8 w

NSD

[41]



45

8 w

NSD

[37]



60 ip

12 w

Increased

[39]



55 iv

12 w

Increased

[9]

PLB/PLN Ser 16/Thr 17 (Phos)

55 ip

7 w

NSD LV

[5]



50 ip

8 w

NSD

[41]



60 ip

12 w

Reduced

[39]

RyR mRNA

45-50 ip

7-8 w

NSD

[4]

RyR protein

50 ip

4-5 w

Reduced

[56]



50 ip

5 w

Reduced

[17]



55

7 w

LV NSD

[5]



45-50 ip

7-8 w

NSD

[4]



45

8 w

NSD

[6]



50

8 w

Reduced

[32]



45

8 w

NSD

[37]



55 iv

12 w

Reduced

[9]



65

14 w

Reduced

[54]

RyR2 phosphorylated

50 ip

4-5 w

Increased

[56]



50 ip

5 w

Reduced

[17]



55 ip

7 w

Increased LV

[5]

Phos RyR2/RyR2

50 ip

4-5 w

Decreased

[56]

Vmax Ca uptake into SR

55 iv

12 w

Decreased

[9]

TPK=Time to peak, THALF=Time to half, AMP=Amplitude.NSD=No significant difference

Rapid application of caffeine stimulates release of Ca2+ from the SR and provides a measure of releasable SR Ca2+ content [58]. Generally, caffeine-evoked Ca2+ transients were reduced [4,5,9,15,17,32,41,44,54,57] or sometimes unaltered [11,16,46] in ventricular myocytes from diabetic rats compared to controls. The rate of rise of the caffeine-evoked Ca2+ transient was slower [4,5,9] in diabetic rat. TPK caffeine-evoked Ca2+ transient was either prolonged [9] or unaltered [16], while the rate of decay of the caffeine-evoked Ca2+ transient was generally decreased [5,9,16,44,46] or sometimes unaltered [30] in diabetic rats compared to controls. In contrast, the THALF decay of the caffeine-evoked Ca2+ transient was prolonged [4,9,16,29] in ventricular myocytes from diabetic rats compared to controls. The recovery rate of electrically-evoked Ca2+ transients following application of caffeine was generally unaltered [11,15,28] or sometimes increased [46]. SR fractional Ca2+ release (electricallyevoked as a fraction of caffeine-evoked Ca2+ transient) was unaltered [16,28,46,48] in ventricular myocytes from diabetic rats compared to controls. Ca2+-stimulated ATPase activity was generally decreased [26,41], but sometimes unaltered [7], SR Ca2+ATPase mRNA was reduced [33] and SR Ca2+ ATPase protein was generally reduced [9,30,32,39,54] or unaltered [5,37] in diabetic rats compared to controls. Ryanodine receptor (RyR) mRNA was unaltered [4]and RyR protein was either reduced [9,17,32,39,54,56] or unaltered [4-6,37] in diabetic rats compared to controls. Moreover, RyR number of functional receptors was decreased [4] RyR activity was decreased [37] and RyR sensitivity to Ca2+ was increased [4,5] in diabetic rats compared to controls. In general, the RyR receptors, which conveyed less current, were more responsive to Ca2+, but instead had reduced threshold for Ca2+ activation and displayed gain of function [6]. In addition calsequestrin mRNA and calsequestrin total protein content were either reduced [33]or unaltered [9,59] in diabetic rats compared to controls.

Calcium Sparks in Ventricular Myocytes from the Streptozotocin-Induced Diabetic Rat

Calcium sparks represent SR Ca2+ release from clusters of ryanodine receptors. The peak amplitude of sparks was either unaltered [17,57], lower [4,5,41] or increased [39] in myocytes from diabetic rat compared to controls. In addition, the spark frequency was either increased [5,6,17,57], reduced [39,41] or unaltered [4], and the duration of sparks was also unaltered [4,5] or reduced [6] in diabetic rats compared to controls. The TPK amplitude of sparks was either prolonged [17,57] or unaltered [39] and the rate of Ca2+ rise was either shorter [4-6] or unaltered [41] in myocytes from diabetic hearts compared to controls. There was also evidence that the THALF decay of sparks were either prolonged [5,17,39,57], or unaltered [6] and SR Ca2+ load was reduced [39] in ventricular myocytes from diabetic rats compared to controls.

L-type Calcium Current and Sodium/Calcium Exchange Currents in Ventricular myocytes from the Streptozotocin-Induced Diabetic Rat

The effects of STZ-induced diabetes on L-type Ca2+ current and Na+/Ca2+ exchange are shown in Table 11 and 12.

Table 11: L-type Ca2+ current in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

Myocyte capacitance

40 iv

3-4 q

127.4 vs. 127.7 pF NSD

[61]



40 iv

3-4 w

123 vs. 106 pF NSD

[63]



45 iv

4-6 w

134.4 vs. 146.8 pF NSD

[18]



60 iv

4-6 w

196.1 vs. 175.7 pF NSD

[60]



50 ip

5 w

189.9 vs. 180.6 pF NSD

[57]



50 ip

5 w

189.9 vs 180.6 pF NSD

[17]



60 ip

8-12 w

NSD

[29]



55 iv

12 w

173.82 vs. 112.71 pF

[9]

L-type Ca2+ current density

40 iv

3-4 w

Reduced

[63]



40 iv

3-4 w

NSD

[61]



60iv

4-6 w

7.5 vs. 8.3 pA/pF NSD

[60]



60 ip

4-10 w

Reduced

[16]



50

5 w

NSD

[57]



45-50

7-8 w

12.0 vs. 11.8 pA/pF NSD

[4]



60 ip

8 w

11.27 vs. 7.36 pA/pF

[66]



50 iv

8 w

NSD LV

[2]



60 ip

8-12 w

Peak  current -0.465 vs. –0.304 nA

[67]



60 ip

12 w

Unaltered EPI ENDO LV

[11]



65

24-34 w

Reduced

[62]

EPI=Epicardial, ENDO=Endocardial.NSD=No significant differences

Table 12: Sodium/calcium exchange in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter

Dose STZ (mg/kg body weight)

Treatment time

Control vs. STZ

Reference

Na+/Ca2+ exchange current density

40 iv

3-4 w

0.49 vs. 0.33 pA/pF

[63]



45iv

4-6 w

3.50 vs. 1.94 pA/pF

[18]



50 ip

8 w

Reduced

[41]

Na+/Ca2+ current decay

40 iv

3-4 w

1.59 vs. 3.42  s

[63]

NCX1 protein

45 iv

4-6 w

100 vs. 69 %

[18]



60 iv

8 w

NSD

[30]



55 iv

12 w

Reduced

[9]



65

14 w

Reduced

[54]



60 ip

12 w

Reduced

[39]

Reversal potential

45 iv

4-6 w

-96 vs. -89 mV

[18]

NSD=No significant difference

CONCLUSION

Figure 3 summarizes some of the mechanisms of Ca2+ transport that are altered in STZ-induced diabetic rat heart. It is well known that STZ (45-65 mg/kg ip or iv), administered to adult rats, damages pancreatic beta cells and reduces the capacity of these cells to release insulin resulting in hyperglycemia and various other characteristics that are observed in DM. In vivo, and to a certain extent in the isolated perfused heart, contractile function, in terms of amplitude and kinetics of contraction, are frequently disturbed in the STZ-induced diabetic rat heart. These contractile disturbances are due to many factors including alterations in cellular Ca2+ homeostasis, disorganization of the structure of the myocytes, apoptosis, endothelial and mitochondrial dysfunctions, fibrosis and remodeling of the myocardium. In turn, these endogenous processes lead to hemodynamic dysfunction including reduced cardiac output, reduced stroke volume and ejection fraction, reduced percentage of fractional shortening, reduced systolic and increased diastolic pressure, and lower rate of pressure development and decline. In ventricular myocytes, the amplitude of shortening is frequently reduced and the time course of shortening and re-lengthening may be prolonged (delayed contraction) and this can be partly attributed to derangement in cellular Ca2+ transport. Alterations in cellular Ca2+transport,including disturbances in L-type Ca2+current(the primary trigger for SR Ca2+ release), Na+ /Ca2+ exchange current (the major pathway for Ca2+ efflux from the cell), SR Ca2+ content and SR Ca2+ uptake and release mechanism(s) all contribute to contractile dysfunction in the STZ-induced diabetic rat heart.

Table 9: Intracellular calcium in ventricular myocytes from streptozotocin-induced diabetic rat.

Parameter Dose STZ (mg/kg
body weight)
Treatment time Control vs. STZ Reference
Resting fluorescence ratio
or calcium
100 iv 4-6 d 1.72 vs. 1.59 RU NSD [50]
  65 ip 5-7 d 1.04 vs. 0.98 RU NSD [51]
  65 ip 5-7 d 1.04 vs. 1.01 RU NSD [8]
  65 iv 7 d 1.00 vs. 0.90 RU [52]
  40 iv 3-4 w Reduced [15]
  45 iv 4-6 w 0.306 vs. 0.327 RU NSD [18]
  50 ip 5 w Increased [17]
  50 ip 5 w 0.41 vs. 0.49 RU [44]
  55 iv 6 w 79 vs. 79 nM NSD [5]
  55 ip 7 w 83.1 vs. 119.1 nM RU LV [26]
  55 iv 7 w Reduced [65]
  60 ip 8 w NSD [66]
  60 ip 8 w NSD [47]
  60 ip 8-12 w 1.13 vs. 1.08 RU [10]
  60 ip 8-12 w 2.10 vs. 2.31RU [26]
  60 ip 8-12 w 2.29 vs. 2.40 RU [10]
  60 ip 8-12 w NSD [43]
  55 iv 12 w 44 vs. 48 nM [28]
  60 ip 12 w 0.71 vs. 0.69 EPI NSD, 0.73 vs. 0.73 ENDO NSD LV [9]
  60 ip 13-24 w 1.19 vs. 1.15 RU NSD [11]
  65 ip 14 w Reduced [49]
  60 ip 20 w 1.13 vs. 1.17 RU NSD [54]
Rate of Ca rise (+dP/dt) 55 ip 7 w 78.8 vs. 12.4 f.u/s LV [48]
  45-50 ip 8 w 39.4 vs. 9.8 f.au/s [5]
  45 iv 8 w 98.7 vs. 72.2 f.au/s [4]
  45 12 w 90.7 vs. 70.7 f.au/s [6]
  55 iv 7 w Lower [37]
Rate of Ca decline (-dP/dt) 55 ip 7-8 w 3.0 vs. 0.6 s-1 LV [9]
  45-50 ip 8 w 3.7 vs. 1.2 s-1 [5]
  45 12 w 280.5 vs. 710.0 f.au/ms [4]
  55 iv 4-5 w Lower [37]
TPK Ca transient 50 ip 4-8 w Longer [9]
  60 ip 5 w NSD [56]
  50 ip 5 w Prolonged [16]
  50 ip 7-8 w 180 vs. 260 ms [57]
  45-50 ip 8 w 65.0 vs. 200.2 ms [4]
  60 ip 8 w NSD [66]
  60 ip 8-12 w NSD [43]
  60 ip 8-12 w NSD [10]
  60 ip 8-12 w NSD [67]
  60 ip 8-12 w NSD [29]
  60 ip 8-12 w 64.1 vs. 74.3 ms NSD [47]
  60 ip 8-12 w Prolonged [28]
  60 ip 9 w NSD [38]
  55 iv 12 w Prolonged [9]
  60 ip 12 w 56.2 vs. 64.2 EPI ms NSD, 60.6 vs. 71.3 ms ENDO LV [11]
  60 ip 13-24 w 63.5 vs. 76.9 ms [49]
  60 ip 20 w 65.5 vs. 76.9 ms NSD [48]
THALF decay Ca transient 65 ip 5-7 days 130 vs. 170 ms [8]
  40 iv 3-4 w 108 vs. 139 ms [15]
  50 ip 4-5 w Longer [56]
  60 ip 4-8 w 91.8 vs. 166.5 ms [16]
  50 ip 5 w Prolonged [17]
  50 ip 5 w 500 vs. 640 ms LV [57]
  50 ip 7 w 231.5 vs. 1076.1 ms LV [5]
  45-50 ip 7-8 w 193.2 vs. 742.6 ms [4]
  60 ip 8 w NSD [65]
  60 ip 8 w NSD [66]
  45 iv 8 w 260.5 vs. 699.1 ms [6]
  60 ip 8-12 w NSD [43]
  60 ip 8-12 w 104.8 vs. 148.4 ms [67]
  60 ip 8-12 w Prolonged [20]
  60 ip 8-12 w NSD [47]
  60 ip 8-12 w 215 vs. 267 ms [10]
  60 ip 8-12 w Prolonged [28]
  60 ip 9 w Prolonged [38]
  55 iv 12 w Longer [9]
  60 ip 12 w 189.6 vs. 197.5 ms EPI NSD, 150.3 vs 189.1 ms
ENDO LV
[11]
  60 ip 13-24 w 118.4 vs. 160.3 ms [49]
  60 ip 20 w 115.4 vs. 159.9 ms [48]
Tau Ca transient 100 iv 4-6 d 0.5 & 1.0 Hz Increased [50]
  40 iv 3-4 w 89.6 vs. 105.2 ms [15]
  55 iv 7 w Elevated [26]
  50 ip 8 w Longer [32]
  55 iv 12 w Longer [9]
Fluorescence decay time 65 ip 5-7 d 141 vs. 223 ms [51]
  65 iv 7 d 248 vs. 320 ms [52]
  65 ip 14 w 34 vs. 47 ms [54]
AMP Ca transient 100 iv 4-6 d 2.00 vs. 1.77 RU [50]
  65 iv 7 d 0.5 Hz 4.78 vs. 4.03 FU
2.0 Hz 3.64 vs. 3.50 FU NSD
[27]
  40 iv 3-4 w Decreased [15]
  50 ip 4-5 w Decreased [56]
  45 iv 4-6 w 0.377 vs. 0.399 RU NSD [18]
  60 ip 4-8 w NSD [16]
  50 ip 5 w Reduced [17]
  50 ip 5 w 0.35 vs. 0.23 AU [57]
  55 iv 7 w Reduced [26]
  55 ip 7 w 3.0 vs. 1.1 f.u LV [5]
  45-50 ip 7-8 w 2.3 vs. 1.1 f.au [4]
  60 ip 8 w NSD [65]
  60 ip 8 w NSD [66]
  50 ip 8 w Decreased [32]
  50 ip 8 w 1.82 vs. 1.46 RU [41]
  45 iv 8 w 4.4 vs. 3.0 fu [6]
  45 8 w 6.1 vs. 3.8 f.au [37]
  60 ip 8-12 w NSD [43]
  60 ip 8-12 w NSD [67]
  60 ip 8-12 w NSD [29]
  60 ip 8-12 w NSD [47]
  60 ip 8-12 w NSD [46]
  60 ip 8-12 w 0.29 vs. 0.39 RU [10]
  60 ip 8-12 w NSD [28]
  60 ip 9 w Reduced [38]
  55 iv 12 w Lower [9]
  60 ip 12 w 0.17 vs. 0.18 EPI NSD, 0.20 vs. 0.19 RU ENDO NSD LV [11]
  60 ip 13-24 w 0.42 vs. 0.43 RU NSD [49]
  65 ip 14 w 0.25 vs. 0.21 RU [54]
  60 ip 20 w 0.39 vs. 0.47 RU NSD [48]
RU=Ratio Units, AU=Arbitrary Units, FU=Fluorescence Units, TPK=Time to peak, THALF=Time to half, AMP=Amplitude.NSD=No significant difference

Table 10: Sarcoplasmic reticulum calciumtransport in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter Dose STZ (mg/kg body
weight)
Treatment time Control vs. STZ Reference
AMP caffeine-evoked Ca
transient
40 3-4 w 3-4 w 210.1 vs. 140.8 nM Reduced [15]
  50ip 5 w 0.42 vs. 0.36 AU [57]
  50ip 5 w Reduced [17]
  55 6 w 6 w 303 vs. 208 nM. Reduced [44]
  60 ip 6-8 w 25.7 vs. 25.9 % NSD [5]
  55 ip 7 w Reduced LV [4]
  45-50 ip 7-8 w 0.26 vs. 0.20 RU [66]
  60 ip 8 w NSD [46]
  60 ip 8-12 w NSD [28]
  60 ip 8-12 w NSD [65]
  60 ip 8 w NSD [32]
  50 ip 8 w Reduced [66]
  50 ip 8 w Reduced [46]
  55 iv 12 w Reduced [28]
  60 ip 12 w EPI ENDO LV NSD [65]
  65 14 w 0.89 vs. 0.57 RU [32]
Rate of rise of caffeine-evoked
Ca transient
55 7 w 0.014 vs. 0.040 RU/s LV [41]
  45-50 ip 7-8 w 0.058 vs. 0.048 RU/s [9]
  55 iv 12 w Decreased [11]
TPK caffeine-evoked Ca transient 60 ip 6-8 w 250.3 vs.330.1 ms NSD [54]
  55 iv 12 w Prolonged [5]
Rate of decay of the caffeineevoked Ca transient 55 6 w 38 vs. 14 nM/sec Decreased [4]
  60 ip 6-8 w 0.73 vs. 0.56 RU/s [9]
  60iv 8 w NSD [16]
  60 ip 8-12 w Decreased [9]
  55 iv 12 w Decreased [44]
THALF decline of the caffeineevoked Ca transien 60 6-8 w 91.8 vs. 156.1 ms [16]
  55 ip 7 w 17.31 vs. 8.66 s LV [5]
  45-50 ip 7-8 w 6.70 vs. 11.29 s [4]
  60 ip 8-12 w Prolonged [29]
  55 iv 12 w 0.52 vs. 1.00 s [9]
Tau rate of decline of the caffeine-evoked Ca transient 45-50 ip 7-8 w 0.116 vs. 0.065 s-1 [4]
  55 iv 12 w 0.54 vs. 1.18 s [9]
Recovery rate of electricallyevoked Ca transient after caffeine-evoked Ca transient 40 iv 3-4 w 2.26 vs. 3.15 s NSD [15]
  60 ip 8 w NSD [65]
  60 ip 8 w NSD [66]
  60 ip 8-12 w NSD [28]
  60 ip 8-12 w Increased [46]
  60 ip 12 w ENDO EPI LV NSD [11]
  60 ip 6-8 w 89.7 vs. 83.5 NSD [16]
  60 ip 8 w NSD [65]
  60 ip 8 w Increased [66]
  60 ip 8-12 w NSD [28]
  60 ip 8-12 w NSD [46]
  60 ip 8-12 w NSD [28]
  60 ip 12 w ENDO NSD EPI Decreased LV [69]
  60 20 w NSD [48]
SR Ca uptake 65 iv 15-27 d Reduced 21-27 d [7]
  55 iv 12 w 0.482 vs. 0.149 µM/s [9]
SR Ca-stimulated ATPase 65 iv 15-27 d Reduced 21-27 d [7]
  50 ip 8 w Decreased [41]
SR Ca ATPase mRNA 60 ip 8 w Reduced [33]
SR Ca ATPase protein
(SERCA2)
55 iv 7 w Reduced [26]
  55 7 w LV NSD [5]
  60 ip 8 w Reduced [33]
  50 ip 8 w Reduced [41]
  50 8 w Reduced [32]
  45 8 w NSD [37]
  60 iv 8 w Reduced [30]
  60 ip 12 w Reduced [39]
  55 iv 12 w Reduced [9]
  65 ip 14 w Reduced [54]
PLB/PLN protein 55 ip 7 w NSD LV [5]
  55 iv 7 w NSD [26]
  50 ip 8 w NSD [41]
  45 8 w NSD [37]
  60 ip 12 w Increased [39]
  55 iv 12 w Increased [9]
PLB/PLN Ser 16/Thr 17
(Phos)
55 ip 7 w NSD LV [5]
  50 ip 8 w NSD [41]
  60 ip 12 w Reduced [39]
RyR mRNA 45-50 ip 7-8 w NSD [4]
RyR protein 50 ip 4-5 w Reduced [56]
  50 ip 5 w Reduced [17]
  55 7 w LV NSD [5]
  45-50 ip 7-8 w NSD [4]
  45 8 w NSD [6]
  50 8 w Reduced [32]
  45 8 w NSD [37]
  55 iv 12 w Reduced [9]
  65 14 w Reduced [54]
RyR2 phosphorylated 50 ip 4-5 w Increased [56]
  50 ip 5 w Reduced [17]
  55 ip 7 w Increased LV [5]
Phos RyR2/RyR2 50 ip 4-5 w Decreased [56]
Vmax Ca uptake into SR 55 iv 12 w Decreased [9]
TPK=Time to peak, THALF=Time to half, AMP=Amplitude.NSD=No significant difference

Table 11: L-type Ca2+ current in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter Dose STZ (mg/kg body
weight)
Treatment time Control vs. STZ Reference
Myocyte capacitance 40 iv 3-4 q 127.4 vs. 127.7 pF NSD [61]
  40 iv 3-4 w 123 vs. 106 pF NSD [63]
  45 iv 4-6 w 134.4 vs. 146.8 pF NSD [18]
  60 iv 4-6 w 196.1 vs. 175.7 pF NSD [60]
  50 ip 5 w 189.9 vs. 180.6 pF NSD [57]
  50 ip 5 w 189.9 vs 180.6 pF NSD [17]
  60 ip 8-12 w NSD [29
  55 iv 12 w 173.82 vs. 112.71 pF [9]
L-type Ca2+ current density 40 iv 3-4 w Reduced [63]
  40 iv 3-4 w NSD [61]
  60iv 4-6 w 7.5 vs. 8.3 pA/pF NSD [60]
  60 ip 4-10 w Reduced [16]
  50 5 w NSD [57]
  45-50 7-8 w 12.0 vs. 11.8 pA/pF NSD [4]
  60 ip 8 w 11.27 vs. 7.36 pA/pF [66]
  50 iv 8 w NSD LV [2]
  60 ip 8-12 w Peak current -0.465 vs. –0.304
nA
[67]
  60 ip 12 w Unaltered EPI ENDO LV [11]
  65 24-34 w Reduced [62]
EPI=Epicardial, ENDO=Endocardial.NSD=No significant difference

Table 12: Sodium/calcium exchange in ventricular myocytes from the streptozotocin-induced diabetic rat.

Parameter Dose STZ (mg/kg body
weight)
Treatment time Control vs. STZ Reference
Na+/Ca2+ exchange current
density
40 iv 3-4 w 0.49 vs. 0.33 pA/pF [63]
  45iv 4-6 w 3.50 vs. 1.94 pA/pF [18]
  50 ip 8 w Reduced [41]
Na+ /Ca2+ current decay 40 iv 3-4 w 1.59 vs. 3.42 s [63]
NCX1 protein 45 iv 4-6 w 100 vs. 69 % [18]
  60 iv 8 w NSD [30]
  55 iv 12 w Reduced [9]
  65 14 w Reduced [54]
  60 ip 12 w Reduced [39]
Reversal potential 45 iv 4-6 w -96 vs. -89 mV [18]
NSD=No significant difference



ACKNOWLEDGMENTS

Grants from the College of Medicine & Health Sciences, United Arab Emirates University, Al Ain; United Arab Emirates University, Al Ain; Sheikh Hamdan Bin Rashid Al Maktoum Award, Dubai; Zayed University, Abu Dhabi.

REFERENCES

1. Lenzen S. The mechanisms of alloxan- and streptozotocin-induced diabetes. Diabetologia. 2008; 51: 216-226.

2. Ding Y, Zou R, Judd RL, Zhong J. Endothelin-1 receptor blockade prevented the electrophysiological dysfunction in cardiac myocytes of streptozotocin-induced diabetic rats. Endocrine. 2006; 30: 121-127.

3. Howarth FC, Jacobson M, Shafiullah M, Adeghate E. Long-term effects of streptozotocin-induced diabetes on the electrocardiogram, physical activity and body temperature in rats. Exp Physiol. 2005; 90: 827-835.

4. Shao CH, Rozanski GJ, Patel KP, Bidasee KR. Dyssynchronous (nonuniform) Ca2+ release in myocytes from streptozotocin-induced diabetic rats. J Mol Cell Cardiol. 2007; 42: 234-246.

5. Shao CH, Wehrens XH, Wyatt TA, Parbhu S, Rozanski GJ, Patel KP, et al. Exercise training during diabetes attenuates cardiac ryanodine receptor dysregulation. J Appl Physiol (1985 ). 2009; 106:1280-1292.

6. Tian C, Shao CH, Moore CJ, Kutty S, Walseth T, DeSouza C, et al. Gain of function of cardiac ryanodine receptor in a rat model of type 1 diabetes. Cardiovasc Res. 2011; 91: 300-309.

7. Takeda N, Dixon IM, Hata T, Elimban V, Shah KR, Dhalla NS. Sequence of alterations in subcellular organelles during the development of heart dysfunction in diabetes. Diabetes Res and Clin Pract. 1996; 30: 113-122.

8. Ren J, Walsh MF, Hamaty M, Sowers JR, Brown RA. Altered inotropic response to IGF-I in diabetic rat heart: influence of intracellular Ca2+ and NO. Am J Physiol. 1998; 275: H823-H830.

9. Choi KM, Zhong Y, Hoit BD, Grupp IL, Hahn H, Dilly KW, et al. Defective intracellular Ca(2+ ) signaling contributes to cardiomyopathy in Type 1 diabetic rats. Am J Physiol Heart Circ Physiol. 2002 ;283: H1398-1408.

10. Howarth FC, Adem A, Adeghate EA, Al Ali NA, Al Bastaki AM, Sorour FR, et al. Distribution of atrial natriuretic peptide and its effects on contraction and intracellular calcium in ventricular myocytes from streptozotocin-ind... Peptides. 2005; 26: 691-700.

11. Smail MM, Qureshi MA, Shmygol A, Oz M, Singh J, Sydorenko V, et al. Regional effects of streptozotocin-induced diabetes on shortening and calcium transport in epicardial and endocardial myocytes from rat left ventricle. Physiol Rep. 2016; 4: e13034.

12. Bodi I, Mikala G, Koch SE, Akhter SA, Schwartz A. The L-type calcium channel in the heart: the beat goes on. J Clin Invest. 2005; 115: 3306- 3317.

13. Brette F, Leroy J, Le Guennec JY, Sallé L. Ca2+ currents in cardiac myocytes: Old story, new insights. Prog Biophys Mol Biol. 2006; 91: 1-82.

14. Bers DM1. Cardiac excitation-contraction coupling. Nature. 2002; 415: 198-205.

15. Lagadic-Gossmann D, Buckler KJ, Le Prigent K, Feuvray D. Altered Ca2+ handling in ventricular myocytes isolated from diabetic rats. Am J Physiol. 1996; 270: H1529-537.

16. Bracken N, Howarth FC, Singh J. Effects of streptozotocin-induced diabetes on contraction and calcium transport in rat ventricular cardiomyocytes. Ann N Y Acad Sci. 2006; 1084: 208-222.

17. Yaras N, Bilginoglu A, Vassort G, Turan B. Restoration of diabetesinduced abnormal local Ca2+ release in cardiomyocytes by angiotensin II receptor blockade. Am J Physiol Heart Circ Physiol. 2007; 292: H912-20.

18. Hattori Y, Matsuda N, Kimura J, Ishitani T, Tamada A, Gando S, et al. Diminished function and expression of the cardiac Na+ -Ca2+ exchanger in diabetic rats: implication in Ca2+ overload. J Physiol. 2000; 527: 85- 94.

19. White FR. Streptozotocin. Cancer Chemother Rep. 1963; 30: 49-53.

20. Schein PS, Cooney DA, Vernon ML. The use of nicotinamide to modify the toxicity of streptozotocin diabetes without loss of antitumor activity. Cancer Res. 1967; 27: 2324-2332.

21. Rerup CC. Drugs producing diabetes through damage of the insulin secreting cells. Pharmacol Rev. 1970; 22: 485-518.

22. Weiss RB. Streptozocin: a review of its pharmacology, efficacy, and toxicity. Cancer Treat Rep. 1982; 66: 427-438.

23. Szkudelski T. The mechanism of alloxan and streptozotocin action in B cells of the rat pancreas. Physiol Res. 2001; 50: 537-546.

24. Belcastro AN, Maybank P, Rossiter M, Secord D. Effect of endurance swimming on rat cardiac myofibrillar ATPase with experimental diabetes. Can J Physiol Pharmacol. 1985; 63: 1202-1205.

25. Howarth FC, Al-Shamsi N, Al-Qaydi M, Al-Mazrouei M, Qureshi A, Chandranath SI, et al. Effects of brain natriuretic peptide on contraction and intracellular Ca2+ in ventricular myocytes from the streptozotocin-induced diabetic rat. Ann N Y Acad Sci. 2006; 1084: 155-165.

26. Norby FL, Wold LE, Duan J, Hintz KK, Ren J. IGF-I attenuates diabetesinduced cardiac contractile dysfunction in ventricular myocytes. Am J Physiol Endocrinol Metab. 2002; 283: E658-E666.

27. Cagalinec M, Waczulíková I, Uli?ná O, Chorvat D Jr. Morphology and contractility of cardiac myocytes in early stages of streptozotocininduced diabetes mellitus in rats. Physiol Res. 2013; 62: 489-501.

28. Howarth FC, Qureshi MA, White E. Effects of hyperosmotic shrinking on ventricular myocyte shortening and intracellular Ca(2+ ) in streptozotocin-induced diabetic rats. Pflugers Arch. 2002; 444: 446- 51.

29. Bracken NK, Woodall AJ, Howarth FC, Singh J. Voltage-dependence of contraction in streptozotocin-induced diabetic myocytes. Mol Cell Biochem. 2004; 261: 235-243.

30. Zhang L, Ward ML, Phillips AR, Zhang S, Kennedy J, Barry B, et al. Protection of the heart by treatment with a divalent-copper-selective chelator reveals a novel mechanism underlying cardiomyopathy in diabetic rats. Cardiovasc Diabetol. 2013; 12:123.

31. Delucchi F, Berni R, Frati C, Cavalli S, Graiani G, Sala R, et al. Resveratrol treatment reduces cardiac progenitor cell dysfunction and prevents morpho-functional ventricular remodeling in type-1 diabetic rats. PLoS One. 2012; 7: e39836.

32. Kranstuber AL, Del Rio C, Biesiadecki BJ, Hamlin RL, Ottobre J, Gyorke S, et al. Advanced glycation end product cross-link breaker attenuates diabetes-induced cardiac dysfunction by improving sarcoplasmic reticulum calcium handling. Front Physiol. 2012; 3: 292.

33. Cheng YS, Dai DZ, Dai Y, Zhu DD, Liu BC. Exogenous hydrogen sulphide ameliorates diabetic cardiomyopathy in rats by reversing disordered calcium-handling system in sarcoplasmic reticulum. J Pharm Pharmacol. 2016; 68: 379-388.

34. Galderisi M, Celentano A, Tammaro P, Garofalo M, Mureddu GF, de Divitiis O. Hypertension and arrhythmias: effects of slow-release nicardipine vs chlorthalidone: a double-blind crossover study. Int J Clin Pharmacol Ther Toxicol. 1990; 28: 410-415.

35. Afzal N, Ganguly PK, Dhalla KS, Pierce GN, Singal PK, Dhalla NS. Beneficial effects of verapamil in diabetic cardiomyopathy. Diabetes. 1988; 37: 936-942.

36. Liu Y, Qi H, Wang Y, Wu M, Cao Y, Huang W, et al. Allicin protects against myocardial apoptosis and fibrosis in streptozotocin-induced diabetic rats. Phytomedicine. 2012; 19: 693-698.

37. Moore CJ, Shao CH, Nagai R, Kutty S, Singh J, Bidasee KR. Mol Cell Biochem. 2013; 376:121-1 35.

38. da Silva MF, Natali AJ, da SE, Gomes GJ, Teodoro BG, Cunha DN, et al. Attenuation of Ca2+ homeostasis, oxidative stress, and mitochondrial dysfunctions in diabetic rat heart: insulin therapy or aerobic exercise? J Appl Physiol(1985 ). 2015; 119: 148-156.

39. Zhao SM, Wang YL, Guo CY, Chen JL, Wu YQ. Progressive decay of Ca2+ homeostasis in the development of diabetic cardiomyopathy. Cardiovasc Diabetol. 2014; 13: 75.

40. Howarth FC, Jacobson M, Naseer O, Adeghate E. Short-term effects of streptozotocin-induced diabetes on the electrocardiogram, physical activity and body temperature in rats. Exp Physiol. 2005; 90: 237-245.

41. Lacombe VA, Viatchenko-Karpinski S, Terentyev D, Sridhar A, Emani S, Bonagura JD, et al. Mechanisms of impaired calcium handling underlying subclinical diastolic dysfunction in diabetes. Am J Physiol Regul Integr Comp Physiol. 2007; 293: R1787-R1797.

42. Liu Z, Cai H, Zhu H, Toque H, Zhao N, Qiu C, et al. Protein kinase RNAlike endoplasmic reticulum kinase (PERK)/calcineurin signaling is a novel pathway regulating intracellular calcium accumulation ... Cell Signal. 2014; 26: 2591-2600.

43. Howarth FC, Qureshi MA. Effects of carbenoxolone on heart rhythm, contractility and intracellular calcium in streptozotocin-induced diabetic rat. Mol Cell Biochem. 2006; 289: 21-29.

44. Yu JZ, Quamme GA, McNeill JH. Altered [Ca2+ ]i mobilization in diabetic cardiomyocytes: responses to caffeine, KCl, ouabain, and ATP. Diabetes Res Clin Pract. 1995; 30: 9-20.

45. Wold LE, Relling DP, Colligan PB, Scott GI, Hintz KK, Ren BH, et al. Characterization of contractile function in diabetic hypertensive cardiomyopathy in adult rat ventricular myocytes. J Mol Cell Cardiol. 2001; 33: 1719-1726.

46. Rithalia A, Qureshi MA, Howarth FC, Harrison SM. Effects of halothane on contraction and intracellular calcium in ventricular myocytes from streptozotocin-induced diabetic rats. Br J Anaesth. 2004; 92: 246-253.

47. Howarth FC, Qureshi A, Singh J. Effects of acidosis on ventricular myocyte shortening and intracellular Ca2+ in streptozotocin-induced diabetic rats. Mol Cell Biochem. 2004; 261: 227-233

48. Howarth FC, Almugaddum FA, Qureshi MA, Ljubisavljevic M. Effects of varying intensity exercise on shortening and intracellular calcium in ventricular myocytes from streptozotocin (STZ)-induced diabetic rats. Mol Cell Biochem. 2008; 317: 161-167.

49. Howarth FC, Almugaddum FA, Qureshi MA, Ljubisavljevic M. The effects of heavy long-term exercise on ventricular myocyte shortening and intracellular Ca2+ in streptozotocin-induced diabetic rat. J Diabetes Complications. 2010; 24: 278-285.

50. Ren J, Davidoff AJ. Diabetes rapidly induces contractile dysfunctions in isolated ventricular myocytes. Am J Physiol. 1997; 272: H148-H158.

51. Ren J, Walsh MF, Hamaty M, Sowers JR, Brown RA. Augmentation of the inotropic response to insulin in diabetic rat hearts. Life Sci. 1999; 65: 369-380.

52. Ren J, Wold LE, Epstein PN. Diabetes enhances acetaldehyde-induced depression of cardiac myocyte contraction. Biochem Biophys Res Commun. 2000; 269: 697-703.

53. Ha T, Kotsanas G, Wendt I. Intracellular Ca2+ and adrenergic responsiveness of cardiac myocytes in streptozotocin-induced diabetes. Clin Exp Pharmacol Physiol. 1999; 26: 347-353.

54. Lee TI, Chen YC, Kao YH, Hsiao FC, Lin YK, Chen YJ. Rosiglitazone induces arrhythmogenesis in diabetic hypertensive rats with calcium handling alteration. Int J Cardiol. 2013; 165: 299-307.

55. Ishikawa T, Kajiwara H, Kurihara S. Alterations in contractile properties and Ca2+ handling in streptozotocin-induced diabetic rat myocardium. Am J Physiol. 1999; 277: H2185-2194.

56. Okatan EN, Tuncay E, Turan B. Cardioprotective effect of selenium via modulation of cardiac ryanodine receptor calcium release channels in diabetic rat cardiomyocytes through th... J Nutr Biochem. 2013; 24: 2110-2118.

57. Yaras N, Ugur M, Ozdemir S, Gurdal H, Purali N, Lacampagne A, et al. Effects of diabetes on ryanodine receptor Ca release channel (RyR2) and Ca2+ homeostasis in rat heart. Diabetes. 2005; 54: 3082-3088.

58. Varro A, Negretti N, Hester SB, Eisner DA. An estimate of the calcium content of the sarcoplasmic reticulum in rat ventricular myocytes. Pflugers Arch. 1993; 423: 158-160.

59. Howarth FC, Glover L, Culligan K, Qureshi MA, Ohlendieck K. Calsequestrin expression and calcium binding is increased in streptozotocin-induced diabetic rat skeletal muscle though not in cardiac muscle. Pflugers Arch. 2002; 444: 52-58.

60. Arikawa M, Takahashi N, Kira T, Hara M, Saikawa T, Sakata T. Enhanced inhibition of L-type calcium currents by troglitazone in streptozotocin-induced diabetic rat cardiac ventricular myocytes. Br J Pharmacol. 2002; 136: 803-810.

61. Jourdon P, Feuvray D. Calcium and potassium currents in ventricular myocytes isolated from diabetic rats. J Physiol. 1993; 470: 411-429.

62. Wang DW, Kiyosue T, Shigematsu S, Arita M. Abnormalities of K+ and Ca2+ currents in ventricular myocytes from rats with chronic diabetes. Am J Physiol. 1995; 269: H1288-1296.

63. Chattou S, Diacono J, Feuvray D. Decrease in sodium-calcium exchange and calcium currents in diabetic rat ventricular myocytes. Acta Physiol Scand. 1999; 166: 137-144.

64. Tappia PS, Maddaford TG, Hurtado C, Dibrov E, Austria JA, Sahi N, et al. Defective phosphatidic acid-phospholipase C signaling in diabetic cardiomyopathy. Biochem Biophys Res Commun. 2004; 316: 280-289.

65. Hamouda NN, Qureshi MA, Alkaabi JM, Oz M, Howarth FC. Reduction in the amplitude of shortening and Ca(2+ ) transient by phlorizin and quercetin-3-O-glucoside in ventricular myocytes from streptozotocininduced diabetic rats. Physiol Res. 2016; 65: 239-250.

66. Hamouda NN, Sydorenko V, Qureshi MA, Alkaabi JM, Oz M, Howarth FC. Dapagliflozin reduces the amplitude of shortening and Ca(2+ ) transient in ventricular myocytes from streptozotocin-induced diabetic rats. Mol Cell Biochem. 2015; 400: 57-68.

67. Woodall A, Bracken N, Qureshi A, Howarth FC, Singh J. Halothane alters contractility and Ca2+ transport in ventricular myocytes from streptozotocin-induced diabetic rats. Mol Cell Biochem. 2004; 261: 251-261.

68. Toriyama T, Yokoya M, Nishida Y, Kawajiri K, Takahashi H, Kawahara H. [Increased incidence of coronary artery disease and cardiac death in elderly diabetic nephropathy patients undergoing chronic hemodialysis therapy]. J Cardiol. 2000; 36: 165-171.

69. Campbell SG, Flaim SN, Leem CH, McCulloch AD Mechanisms of transmurally varying myocyte electromechanics in an integrated computational model. Philos Trans A Math Phys Eng Sci. 2008; 366: 3361-3380.

Received : 16 Sep 2017
Accepted : 28 Sep 2017
Published : 29 Sep 2017
Journals
Annals of Otolaryngology and Rhinology
ISSN : 2379-948X
Launched : 2014
JSM Schizophrenia
Launched : 2016
Journal of Nausea
Launched : 2020
JSM Internal Medicine
Launched : 2016
JSM Hepatitis
Launched : 2016
JSM Oro Facial Surgeries
ISSN : 2578-3211
Launched : 2016
Journal of Human Nutrition and Food Science
ISSN : 2333-6706
Launched : 2013
JSM Regenerative Medicine and Bioengineering
ISSN : 2379-0490
Launched : 2013
JSM Spine
ISSN : 2578-3181
Launched : 2016
Archives of Palliative Care
ISSN : 2573-1165
Launched : 2016
JSM Nutritional Disorders
ISSN : 2578-3203
Launched : 2017
Annals of Neurodegenerative Disorders
ISSN : 2476-2032
Launched : 2016
Journal of Fever
ISSN : 2641-7782
Launched : 2017
JSM Bone Marrow Research
ISSN : 2578-3351
Launched : 2016
JSM Mathematics and Statistics
ISSN : 2578-3173
Launched : 2014
Journal of Autoimmunity and Research
ISSN : 2573-1173
Launched : 2014
JSM Arthritis
ISSN : 2475-9155
Launched : 2016
JSM Head and Neck Cancer-Cases and Reviews
ISSN : 2573-1610
Launched : 2016
JSM General Surgery Cases and Images
ISSN : 2573-1564
Launched : 2016
JSM Anatomy and Physiology
ISSN : 2573-1262
Launched : 2016
JSM Dental Surgery
ISSN : 2573-1548
Launched : 2016
Annals of Emergency Surgery
ISSN : 2573-1017
Launched : 2016
Annals of Mens Health and Wellness
ISSN : 2641-7707
Launched : 2017
Journal of Preventive Medicine and Health Care
ISSN : 2576-0084
Launched : 2018
Journal of Chronic Diseases and Management
ISSN : 2573-1300
Launched : 2016
Annals of Vaccines and Immunization
ISSN : 2378-9379
Launched : 2014
JSM Heart Surgery Cases and Images
ISSN : 2578-3157
Launched : 2016
Annals of Reproductive Medicine and Treatment
ISSN : 2573-1092
Launched : 2016
JSM Brain Science
ISSN : 2573-1289
Launched : 2016
JSM Biomarkers
ISSN : 2578-3815
Launched : 2014
JSM Biology
ISSN : 2475-9392
Launched : 2016
Archives of Stem Cell and Research
ISSN : 2578-3580
Launched : 2014
Annals of Clinical and Medical Microbiology
ISSN : 2578-3629
Launched : 2014
JSM Pediatric Surgery
ISSN : 2578-3149
Launched : 2017
Journal of Memory Disorder and Rehabilitation
ISSN : 2578-319X
Launched : 2016
JSM Tropical Medicine and Research
ISSN : 2578-3165
Launched : 2016
JSM Head and Face Medicine
ISSN : 2578-3793
Launched : 2016
JSM Cardiothoracic Surgery
ISSN : 2573-1297
Launched : 2016
JSM Bone and Joint Diseases
ISSN : 2578-3351
Launched : 2017
JSM Bioavailability and Bioequivalence
ISSN : 2641-7812
Launched : 2017
JSM Atherosclerosis
ISSN : 2573-1270
Launched : 2016
Journal of Genitourinary Disorders
ISSN : 2641-7790
Launched : 2017
Journal of Fractures and Sprains
ISSN : 2578-3831
Launched : 2016
Journal of Autism and Epilepsy
ISSN : 2641-7774
Launched : 2016
Annals of Marine Biology and Research
ISSN : 2573-105X
Launched : 2014
JSM Health Education & Primary Health Care
ISSN : 2578-3777
Launched : 2016
JSM Communication Disorders
ISSN : 2578-3807
Launched : 2016
Annals of Musculoskeletal Disorders
ISSN : 2578-3599
Launched : 2016
Annals of Virology and Research
ISSN : 2573-1122
Launched : 2014
JSM Renal Medicine
ISSN : 2573-1637
Launched : 2016
Journal of Muscle Health
ISSN : 2578-3823
Launched : 2016
JSM Genetics and Genomics
ISSN : 2334-1823
Launched : 2013
JSM Anxiety and Depression
ISSN : 2475-9139
Launched : 2016
Clinical Journal of Heart Diseases
ISSN : 2641-7766
Launched : 2016
Annals of Medicinal Chemistry and Research
ISSN : 2378-9336
Launched : 2014
JSM Pain and Management
ISSN : 2578-3378
Launched : 2016
JSM Women's Health
ISSN : 2578-3696
Launched : 2016
Clinical Research in HIV or AIDS
ISSN : 2374-0094
Launched : 2013
Journal of Endocrinology, Diabetes and Obesity
ISSN : 2333-6692
Launched : 2013
Journal of Substance Abuse and Alcoholism
ISSN : 2373-9363
Launched : 2013
JSM Neurosurgery and Spine
ISSN : 2373-9479
Launched : 2013
Journal of Liver and Clinical Research
ISSN : 2379-0830
Launched : 2014
Journal of Drug Design and Research
ISSN : 2379-089X
Launched : 2014
JSM Clinical Oncology and Research
ISSN : 2373-938X
Launched : 2013
JSM Bioinformatics, Genomics and Proteomics
ISSN : 2576-1102
Launched : 2014
JSM Chemistry
ISSN : 2334-1831
Launched : 2013
Journal of Trauma and Care
ISSN : 2573-1246
Launched : 2014
JSM Surgical Oncology and Research
ISSN : 2578-3688
Launched : 2016
Annals of Food Processing and Preservation
ISSN : 2573-1033
Launched : 2016
Journal of Radiology and Radiation Therapy
ISSN : 2333-7095
Launched : 2013
JSM Physical Medicine and Rehabilitation
ISSN : 2578-3572
Launched : 2016
Annals of Clinical Pathology
ISSN : 2373-9282
Launched : 2013
Annals of Cardiovascular Diseases
ISSN : 2641-7731
Launched : 2016
Journal of Behavior
ISSN : 2576-0076
Launched : 2016
Annals of Clinical and Experimental Metabolism
ISSN : 2572-2492
Launched : 2016
Clinical Research in Infectious Diseases
ISSN : 2379-0636
Launched : 2013
JSM Microbiology
ISSN : 2333-6455
Launched : 2013
Journal of Urology and Research
ISSN : 2379-951X
Launched : 2014
Journal of Family Medicine and Community Health
ISSN : 2379-0547
Launched : 2013
Annals of Pregnancy and Care
ISSN : 2578-336X
Launched : 2017
JSM Cell and Developmental Biology
ISSN : 2379-061X
Launched : 2013
Annals of Aquaculture and Research
ISSN : 2379-0881
Launched : 2014
Clinical Research in Pulmonology
ISSN : 2333-6625
Launched : 2013
Journal of Immunology and Clinical Research
ISSN : 2333-6714
Launched : 2013
Annals of Forensic Research and Analysis
ISSN : 2378-9476
Launched : 2014
JSM Biochemistry and Molecular Biology
ISSN : 2333-7109
Launched : 2013
Annals of Breast Cancer Research
ISSN : 2641-7685
Launched : 2016
Annals of Gerontology and Geriatric Research
ISSN : 2378-9409
Launched : 2014
Journal of Sleep Medicine and Disorders
ISSN : 2379-0822
Launched : 2014
JSM Burns and Trauma
ISSN : 2475-9406
Launched : 2016
Chemical Engineering and Process Techniques
ISSN : 2333-6633
Launched : 2013
Annals of Clinical Cytology and Pathology
ISSN : 2475-9430
Launched : 2014
JSM Allergy and Asthma
ISSN : 2573-1254
Launched : 2016
Journal of Neurological Disorders and Stroke
ISSN : 2334-2307
Launched : 2013
Annals of Sports Medicine and Research
ISSN : 2379-0571
Launched : 2014
JSM Sexual Medicine
ISSN : 2578-3718
Launched : 2016
Annals of Vascular Medicine and Research
ISSN : 2378-9344
Launched : 2014
JSM Biotechnology and Biomedical Engineering
ISSN : 2333-7117
Launched : 2013
Journal of Hematology and Transfusion
ISSN : 2333-6684
Launched : 2013
JSM Environmental Science and Ecology
ISSN : 2333-7141
Launched : 2013
Journal of Cardiology and Clinical Research
ISSN : 2333-6676
Launched : 2013
JSM Nanotechnology and Nanomedicine
ISSN : 2334-1815
Launched : 2013
Journal of Ear, Nose and Throat Disorders
ISSN : 2475-9473
Launched : 2016
JSM Ophthalmology
ISSN : 2333-6447
Launched : 2013
Journal of Pharmacology and Clinical Toxicology
ISSN : 2333-7079
Launched : 2013
Annals of Psychiatry and Mental Health
ISSN : 2374-0124
Launched : 2013
Medical Journal of Obstetrics and Gynecology
ISSN : 2333-6439
Launched : 2013
Annals of Pediatrics and Child Health
ISSN : 2373-9312
Launched : 2013
JSM Clinical Pharmaceutics
ISSN : 2379-9498
Launched : 2014
JSM Foot and Ankle
ISSN : 2475-9112
Launched : 2016
JSM Alzheimer's Disease and Related Dementia
ISSN : 2378-9565
Launched : 2014
Journal of Addiction Medicine and Therapy
ISSN : 2333-665X
Launched : 2013
Journal of Veterinary Medicine and Research
ISSN : 2378-931X
Launched : 2013
Annals of Public Health and Research
ISSN : 2378-9328
Launched : 2014
Annals of Orthopedics and Rheumatology
ISSN : 2373-9290
Launched : 2013
Journal of Clinical Nephrology and Research
ISSN : 2379-0652
Launched : 2014
Annals of Community Medicine and Practice
ISSN : 2475-9465
Launched : 2014
Annals of Biometrics and Biostatistics
ISSN : 2374-0116
Launched : 2013
JSM Clinical Case Reports
ISSN : 2373-9819
Launched : 2013
Journal of Cancer Biology and Research
ISSN : 2373-9436
Launched : 2013
Journal of Surgery and Transplantation Science
ISSN : 2379-0911
Launched : 2013
Journal of Dermatology and Clinical Research
ISSN : 2373-9371
Launched : 2013
JSM Gastroenterology and Hepatology
ISSN : 2373-9487
Launched : 2013
Annals of Nursing and Practice
ISSN : 2379-9501
Launched : 2014
JSM Dentistry
ISSN : 2333-7133
Launched : 2013
Author Information X
