This report presents a case of a combined infected rectal duplication cyst (RDC) associated incidentally with a meningomyelocele in and adult female documented with sagittal magnetic resonance imaging (MRI). A comprehensive differential diagnosis is presented. Surgical excision is recommended to prevent malignant degeneration of the RDC.

•    Case report
•    Rectal duplication cyst
•    Infection
•    Meningomyelocele
•    Presacral cysts
•    Magnetic resonance imaging
•    Excision
•    Kraske

Cologne KG, Ortega AE (2016) Infected Rectal Duplication Cyst and Sacral Meningomyelocele. JSM Gen Surg Cases Images 1(4): 1017.

An 18 year-old female presented with perianal pain and fever. Clinical evaluation revealed a fluctuant presacral cystic mass on digital exam without obvious external or cutaneous abnormalities. A concurrent meningomyeloceleis seen posterior to this cyst in sagittal perspective on magnetic resonance imaging (Figure 1).

Figure 1 Mid-sagittal MRI demonstrates the rectal duplication cyst posterior to the rectum (RDC).

She underwent a definitive surgical procedure including unroofing of the duplication cyst and excision of there maining mucosal lining. Care was taken not to violate the more posteriorly located meningomyelocele and risk serious infection. Postoperatively she had complete resolution of her symptoms and regained normal bowel function. A meningomyelocele (M) is seen associated with sacral agenesis. The latter is characteristic of meningomyelocele but is also common with other presacral pathologies [1].

Meningomyelocele is a rare congenital malformation that communicates with the dural sac. Varying degrees of sacral agenesis are characteristic. Rectal duplication cysts are also rare and often asymptomatic unless an infection occurs. An infected rectal duplication cyst must be distinguished from a crypto glandular supralevator infection. The former requires complete excision while the latter requires incision and drainage based on a recently described classification and treatment algorithm [2].

Both meningomyeloceles and rectal duplication cysts are important but relatively uncommon within the differential diagnosis (δDx) of presacral masses (Table 1).

Table 1: A comprehensive list of conditions presenting as a posterior extramural rectal mass [6-10], *Pilonidal disease may mimic a presacral cyst or supralevator abscess when associated with sacral agenesis.

Lists the δDx of presacral cysts, masses and miscellaneous conditions, which require consideration. Both computed tomography and magnetic resonance imaging are useful in evaluation. Biopsy or aspiration is generally contraindicated. The most frequent causes are dermoid cysts and teratomas. Rectal duplication cysts, presacral dermoid cysts and teratomas all have the potential capacity for malignant degeneration [3-5]. Therefore, complete surgical resection is indicated. The treatment of meningomyelocele is far more complex depending on the age and clinical symptomatology of the patient. It is therefore, not addressed herein in a case report where it was an incidental finding associated with an infected rectal duplication cyst.

Surgical approach to presacral cysts

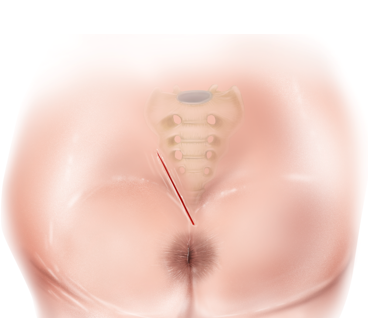

The Kraske approach is well suited for the resection of benign presacral cysts [11]. It consists of a para-sacrococcygeal incision as illustrated in (Figure 2).

Figure 2 The Kraske approach is illustrated with a para-sacrocoggygeal incision. A midline incision can be substituted in the setting of sacrococcygeal atresia.

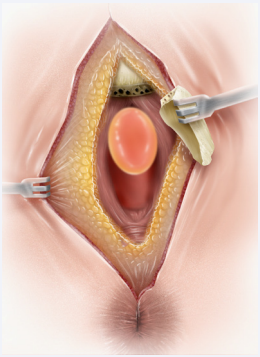

Disarticulation of the coccyx requires sectioning of its attachments to the pubo- and ileococcygeus muscles bilaterally. The anococcygeal ligament and the articulation between S5 and the coccyx are sectioned. This technique generally provides excellent exposure for lesions below the third sacral vertebra (Figure 3).

Figure 3 Lesions below the level of S3 are amenable to a posterior parasacrococcygeal approach. Higher ones may require a combined transacral and abdominal mobilization. Resection of the coccyx is generally advised. (Adapted from Kocher T) [11].

Care must be taken to integrally enucleate the cyst without violating its lining.

1. Kenefick JS. Hereditary sacral agenesis associated with presacral tumours. Br J Surg. 1973; 60: 271-274.

2. Ortega AE, Bubbers E, Liu W, Cologne KG, Ault GT. A novel classification, evaluation, and treatment strategy for supralevator abscesses. Dis Colon Rectum. 2015; 48: 110-1110.

3. Mathis KL, Dozois EJ, Grewal MS, Metzger P, Larson DW, Devine RM. Malignant risk and surgical outcomes of presacral tailgut cysts. Br J Surg. 2010; 97: 575-579.

4. Mourra N, Caplin S, Parc R, Flejou JF. Presacral neuroendocrine carcinoma developed in a tailgut cyst: report of a case. Dis Colon Rectum. 2003; 46: 411-413.

5. Michael D, Cohen CR, Northover JM. Adenocarcinoma within a rectal duplication cyst: case report and literature review. Ann R Coll Surg Engl. 1999; 81: 205-206.

6. Andonian S, Karakiewicz PI, Herr HW. Presacral cystic schwannoma in a man. Urology. 2003; 62: 551.

7. De Fazio M, Torchia G, Puglisi F. [Solitary presacral echinococcal cysts]. Minerva Chir. 1993; 48: 791-793.

8. Sriganeshan V, Alexis JB. A 37-year-old woman with a presacral mass. Tailgut cyst (retrorectal cystic hamartoma). Arch Pathol Lab Med. 2006; 130: 77-78.

9. Mccoll I. The Classification of Presacral Cysts and Tumours. Proc R Soc Med. 1963; 56: 797-798.

10. Esterly JR, Baghdassarian OM. Presacral Neurenteric Cyst. An Unusual Malformation Resulting From Persistence of the Neuroenteric Canal. Bull Johns Hopkins Hosp. 1963; 113: 202-210.

11. Kocher T. Textbook of Operative Srugery - 3rdEditon (New York: The Macmillan Company, 1913) pp. 652-653.
